Zhejiang Yinda Machine Electricity Co., Ltd. >> 3.5kw Tefc Three-Phase Asynchronous Motor (for Ceramic Machine)

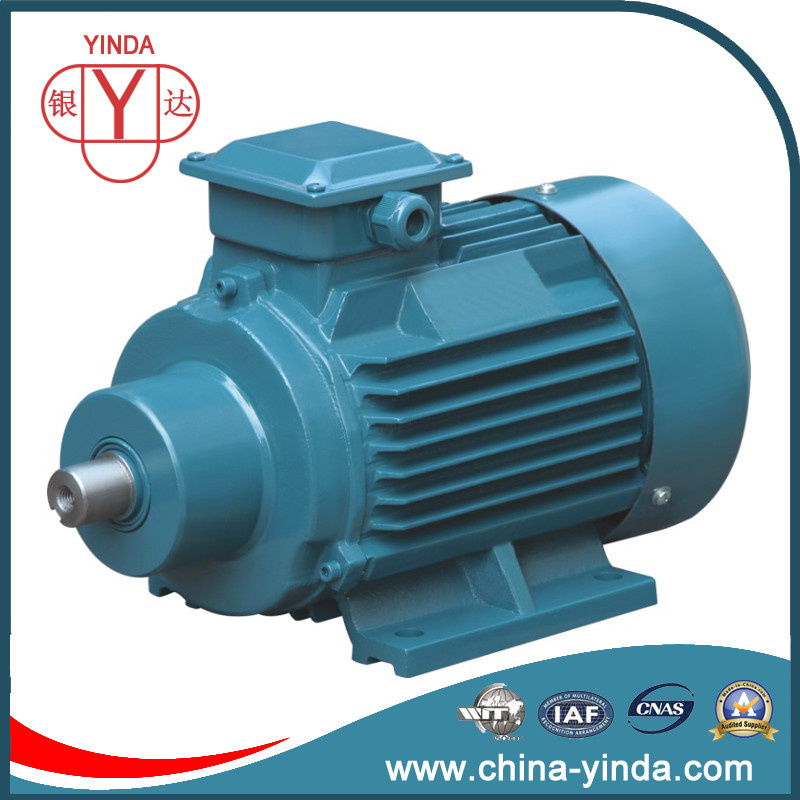

3.5kw Tefc Three-Phase Asynchronous Motor (for Ceramic Machine)

Name: 3.5kw Tefc Three-Phase Asynchronous Motor (for Ceramic Machine)
Brand: china-manufacturer-directory.com
SKU: 721726145
Availability: InStock
Rating: 4.5 (102 reviews)

Supplier:	Zhejiang Yinda Machine Electricity Co., Ltd.
Price:	US $ 98/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	CFR

Product Specifications

Prod Model:	M series
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Special Voltages Available
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	Ceramic Edging Motor
Brand:	Yinda

Product Description

M series Three-phase Grinding motor (grinding motor for ceramic machinery)

1. Excellent water-resistance & Dust properties
2. Small Axial movement & Radial run-out
3. Small vibration to ensure the finished products precisely and smoothly.
4. Steady manufacture to keep the consistent quality.

Technical Data:

Type	POWER KW	SPEED	POWER FACTOR	RATED CURRENT	IST	TM	NOISE	VIRBATION	WEIGHT
M100L1-2	3KW	2880RPM	0.88	6.2A	7	2.5	72 LP DB	1.8MM/S	32.5KG
M100L2-2	3.5KW	2850RPM	0.88	7.2A	7	2.5	72LP DB	1.8MM/S	33.5KG
M100L3-2	4KW	2850RPM	0.88	8.2A	7	2.5	72LP DB	1.8MM/S	34.5KG

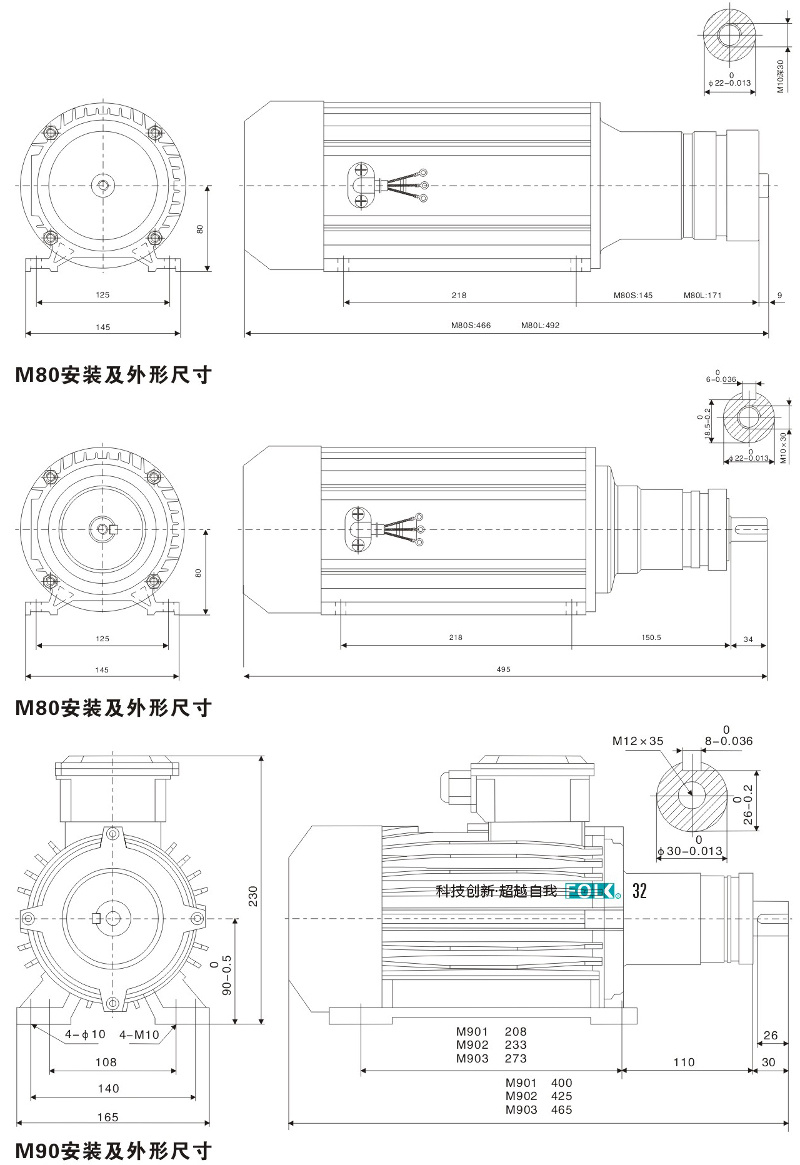

Dimension Deawing:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
