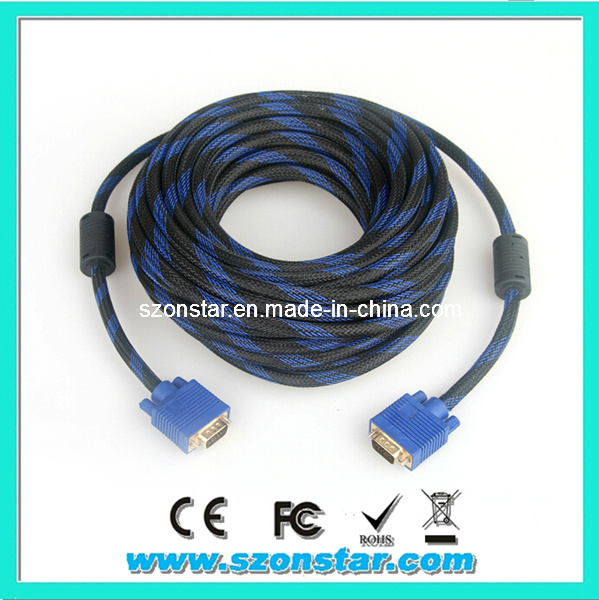

3+8 Golded Plated VGA Cable Computer Cable with Nylon

Name: 3+8 Golded Plated VGA Cable Computer Cable with Nylon
Brand: china-manufacturer-directory.com
SKU: 731485895
Availability: InStock
Rating: 4.8 (105 reviews)

Supplier:	Shenzhen Onstar Cable Co., Ltd.
Price:	US $ 0.65/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	OS-VGA-09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
HDD 15pin Male To Male:	Black Color
Material:	Copper
Interface Type:	VGA
Application:	Computer
Pin:	15pin

Product Description

1. Monitor VGA male to male cable for computer

2. VGA video cable is used to connect a VGA or SVGA card or monitor to each other or to a data switch.

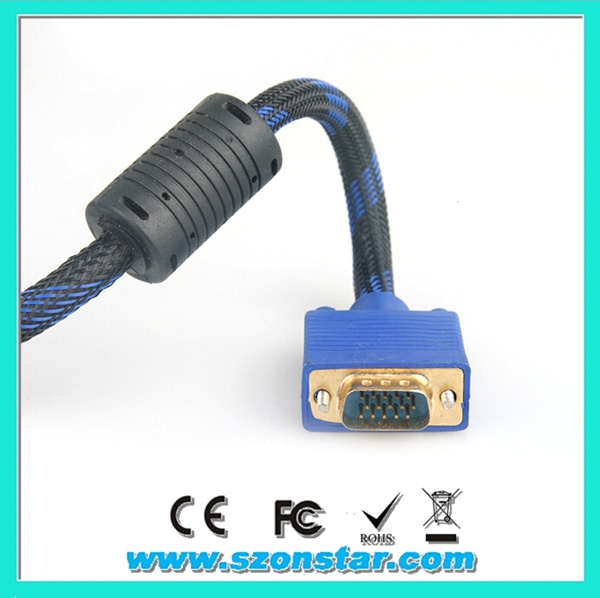

3. Both ends are a high-density 3-row male 15-pin D-sub connector

4. Cable is made of 75ohms mini coax video wire, using individually shielded 28-gauge coaxial wire.

5. This low signal loss cable allows lengths of up to 200 feet in most cases with good signal strength.

6. This male VGA to male VGA cable is designed for connecting video card outputs to monitors directly.

7. Most modern flat panel displays require this type of cable.

8. For monitors and displays that have built-in cables, you will need to use a male-to-female VGA extension cable.

9. If you are running video through a conduit or drywall, you may want to use a non-terminated VGA cable with a low profile connector splice.

Electrical Test:
1.100% open and short test;
2. Voltage: DC300V 5M ohm/10ms;
3. Insulation Resistance: 10MO min;
4. Contact Resistance: 2ohm max
5. Working Temperature: -25° C--80° C

vga cable
Type:	VGA3+2, VGA3+5,VGA3+4 ,VGA3+6 ,VGA3+8,VGA 3+9
Conductor:	34/32/30/28/26/24/22AWG
Material:	Copper,Tinned Cooper,CCS,Iron
Connector:	Gold-Plated,Nickel-Plated
Jacket:	PVC
Color:	Black,White.Orange,Green
Meters:	1mtr-50mtr
Application:	Digital displays, Digital interactivity, Audio/Video receiver s , . D-VHS players ,DVDs

ShenZhen Onstar Cable Co., Ltd is the professional factory for cable with 10 years experiences, which integrates with developing and researching, producing and selling communication cables. We endeavor to offer good service to our clients. Main products including: LAN cables, USB cabl es, power cables and other computer cables. We has built up good relationship with numerous famous enterprises in domestic and aboard, The products are selling well among Europe, America, Asia, Australia, Egyptian and other countries.
