Supplier: | Shenzhen Onstar Cable Co., Ltd. |
---|---|
Price: | US $ 2.9/Piece |
Min Order: | 100/Piece |
Quantity:: | |
Trade Terms: | FOB |
![]() |
Prod Model: | OS-MIDI-1 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Copper: | Music |
Material: | Copper |
Interface Type: | USB |
Pin: | 4Pin |
Application: | Computer |
Features:
-Cable length: 2.0m (6 Ft).
-1 in and 1 out MIDI interface.
-Supports Windows XP, Vista, 7
-Latest model with a built-in driver.
-USB Bus Powered; Requires No External Power.
-16 MIDI input channels and 16 MIDI output channels.

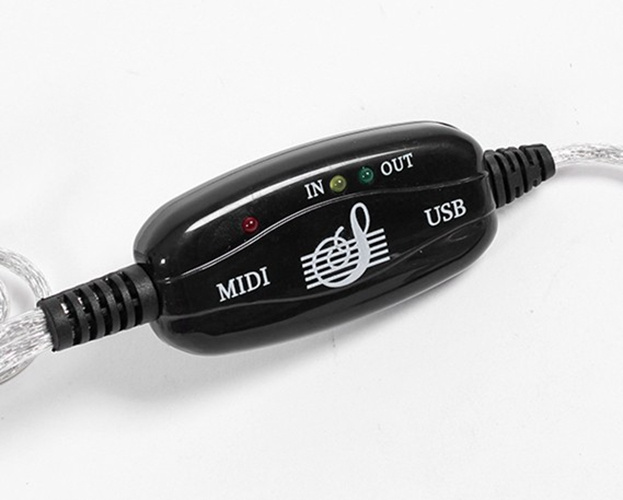

-LED's indicate power in, MIDI in signal and MIDI out signal.
-True Plug & Play NO DRIVER INSTALLATION NEEDS.
Instructions for use:
Please follow these steps
Connect the cable marked "IN" to the MIDI "OUT" socket of a MIDI keyboard (or MIDI device).
Connect the cable marked "OUT" to the MIDI "IN" socket of a MIDI keyboard (or MIDI device).
Plug the USB cable into any free USB socket on your computer, the red LED will light to show power on.
Open you music software program, e.g. Cubase, Sonar, MIDI connections, etc.
Set the music in programs MIDI in and MIDI out devices to "USB Audio Device".
Your USB to MIDI interface is now ready for use.
To save potential problems, it is recommended that this interface is always connected to the same USB as it was originally installed on to prevent multiple installations of the driver
