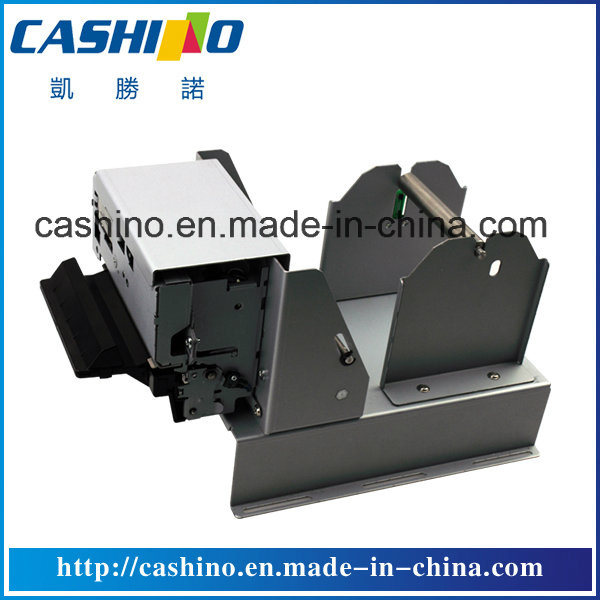

3" ATM Printer-Bank Terminal Printer with Auto-Cutter (KP-532)
Product Specifications
| Prod Model: |
KP-532 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Method: |
Thermal Line Printing |
| Auto-Cutter: |
1,000,000 Cuts |
| Max. Resolution: |
640dots/Line,8dots/Mm |
| Paper Width: |
80mm |
| Head Temperature Detection: |
Thermistor |
| Type: |
ATM Printer |
Product Description
Xiamen Cashino Electronic Technology Co.,LTD.is highly specialized in designing, developing, manufacturing and marketing of printing equipments; and provide the professional printing solution. with the factory located in Xiamen city.
With rich of experience and professional R&D team, Cashino successfully launched a series of printing equipments. Such as portable printer,bluetooth printer,micro panel printer, Kiosk printer,POS receipt printer, barcode label printer, as well as printer mechanism( thermal & impact type) and so on;Our products usually are used for POS/ECR, Transport Ticketing , Instrument Analyzers, KIOSK system, Electronic medical equipment, self-service solution etc.
In recent years, as the market is increasingly mature and growing, Cashino's business have expand to oversea markets, such as Southeast Asia, South Asia, South & North America, Middle East and Europe, etc. Won the majority of worldwide customers' favor. In view of having a strong R&D team, we also provide OEM/ODM service for customers.
Cashino always keep up with the enterprise goal of "survival by quality, service for development". We are able to provide all customers with high quality products to meet their strict requirements at competitive prices. Ultimately we wish to establish and maintain a long-term relationship with every customer built on respect, confidence and Mutual benefit.
|
Item |
KP-532 |
|
Printing Method |
Thermal line printing |
|
Dots/line |
640 dots/line |
|
Resolution |
8 |
|
Printing Width(mm) |
72 |
|
Paper Width(mm) |
60/80 |
|
Paper Thickness(μm) |
56-150 |
|
Feed Resolution(mm) |
0.125 |
|
Character |
Font A: 12 × 24 (including 2-dot horizontal spacing)
Font B: 9 × 17 (including 2-dot horizontal spacing)
Kanji: 2 4× 24 (only for 532) |
|
W x D x H(mm) |
126.8x91.8x57.5(without FPC) |
|
Weight(g) |
532 |
|
Head temperature detection |
Thermistor |
|
Paper detection |
Transmission photoelectricity switch |
|
Black mark detection |
Reflecting photoelectricity pipe |
|
Platen position detection |
Light touch swith |
|
Operation voltage (V) |
24±10% |
|
Logical voltage(V) |
5±0.25 |
|
Formfeeding motor voltage(V) |
24±10% |
|
Auto cutting motor voltage(V) |
24±10% |
|
Detection voltage (V) |
5±0.25 |
|
Abrasion resistance |
100 km |
|
Auto cutting frequency |
1 million times |
|
Operating temperature(°C) |
0 to 55 (no condensation) |
|
Operating humidity(RH) |
10% to 80% (no condensation) |
|
Storage temperature(°C) |
-25 to 70 (no condensation) |
|
Storage humidity(RH) |
5% to 95% (no condensation) |
Xiamen Cashino Electronic Technology Co.,Ltd.(brand: CASHINO) is highly specialized in designing, developing, manufacturing and marketing of printing equipments; and provide the professional printing solution. with the factory located in Xiamen city.
With rich of experience and professional R&D team, Cashino successfully launched a series of printing equipments. Such as portable printer,bluetooth printer,micro panel printer, Kiosk printer,POS receipt printer, barcode label printer, as well as printer mechanism( thermal & impact type) and so on;Our products usually are used for POS/ECR, Transport Ticketing , Instrument Analyzers, KIOSK system, Electronic medical equipment, self-service solution etc.
In recent years, as the market is increasingly mature and growing, Cashino's business have expand to oversea markets, such as Southeast Asia, South Asia, South & North America, Middle East and Europe, etc. Won the majority of worldwide customers' favor. In view of having a strong R&D team, we also provide OEM/ODM service for customers.
Cashino always keep up with the enterprise goal of "survival by quality, service for development". We are able to provide all customers with high quality products to meet their strict requirements at competitive prices. Ultimately we wish to establish and maintain a long-term relationship with every customer built on respect, confidence and Mutual benefit.
