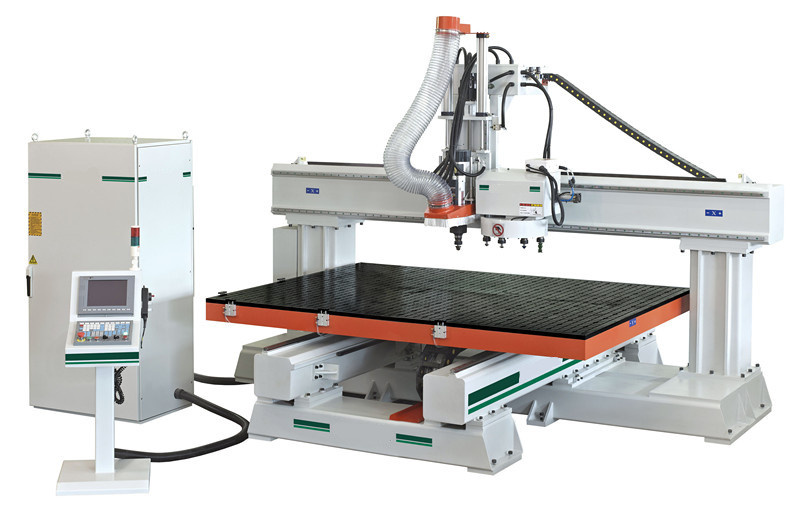

3 Axis CNC Router Machinery with Atc Mc-481t
Product Specifications
| Prod Model: |
MC-481T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1220X2440X200mm |
| Spindle Power: |
Italy Hsd 9kw |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Double-Spindle |
| Spindle Layout: |
Vertical |
Product Description
Application:
1. Plexiglass Materials: PVC, Acrylic, Light guide board and Diffuser board;
2. Thgermo Materials: Rubber, Plastic, Resin and Foam products;
3. Compound Materials: Fiber glass, Artificial stone, Compact grade board, Insulating material, Bakelite
4. Wood Materials: Solid wood, MDF, Flake board
5. Light Metal Mterial: Extruded Aluminum, Copper AND Aluminum
|
Model |
MC481T |
|
Working Area(X*Y*Z) |
1220x2440x200mm |
|
Spindle Power |
Italy HSD 9KW |
|
Spindle Rotational Speed |
24000rpm/min |
|
Repeat Ability |
±0.03mm |
|
Processing precision |
±0.05mm |
|
Overall Size |
3000x4540x2500mm |
|
Max. Rapid Traverse Speed |
60m/min |
|
Max Working Speed |
30m/min |
|
Operation Command |
G code, HPGL |
|
Operation System |
Taiwan Syntec |
|
Working Voltage |
AC380V/50Hz |
Founded in 1992, with 22 years developing, Foshan Zhunda Machinery Co., Ltd. Has gained rich experience on research and manufacture for hot/cold press, panel saw, lift table, edge bander and finger jointer/assembler series in woodworking machinery industry.
We understand products quality is the life of an enterprise, to ensure high quality of our products, we use imported-components from Japan, Taiwan as the key spare parts and our machines are made through precision manufacturing process by professional workers. Continual improvements are also made to satisfy the customers' Need.
Our advantage:
1. Rich experience on Hot/Cold Press, Precision Panel Saw, lift table and finger jointer/assembler.
2. Strong technical capability and willing to develop new models against customer' S requirements.
3. Competitive Price
3. Regulated production procedure and experienced workers insure our high products quality.
4. Long time improvement on all spare parts and structure makes our machines works stable and less much maintenance time than other products.
For mutual benefit, it is our aim to produce high quality woodworking machinery that suitable to you at the most competitive price. Sincerely welcome your inquiry and please feel free to contact us.
