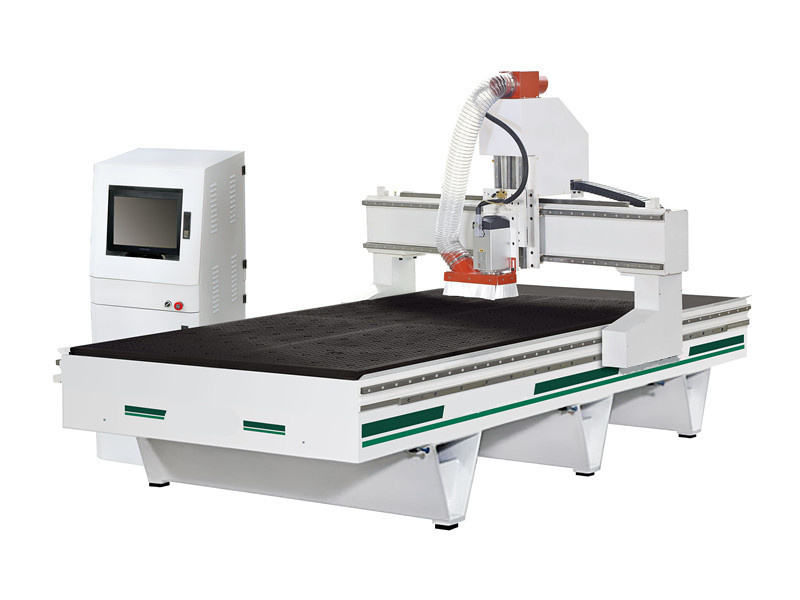

Fast Speed Woodworking CNC Router Machinery St-1325A
Product Specifications
| Prod Model: |
ST-1325A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1300X2500X200mm |
| Spindle Power: |
4.5kw Air Cooling |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Double-Spindle |
| Spindle Layout: |
Vertical |
Product Description
Features
1.'V' shape machine body, this special structure make the whole machine 300 kgs heavier than normal structure. That makes the machine can run much more stable
2. 4.5kw air cooling spindle (6kw HSD spindle is optional).
3.Taiwan high precision linear guide rail, heavy loading and durable.
4.High precision helical & pinion rack for X and Y axis, Taiwan ball screw for Z axis.
5.Leadshine stepper motors and drivers for 3 axis (Servo motors and drivers are optional)
6.German Schneider electrical component
7. Pure copper transformer, Electrical conductivity better than other transformer. (Many factories use copper+aluminum transforer.)
8. Genuine Weihong NC Studio operation system
|
Model |
ST-1325A |
|
Working Area |
1300x2500x200mm |
|
Spindle Power |
4.5kw air cooling |
|
Spindle Speed |
6000-18000rpm/min |
|
Repeat Ability |
± 0.05mm |
|
Processing Precision |
± 0.1mm |
|
Overall Size |
1900x3000x2000mm |
|
Max. Rapid Traverse Speed |
30m/min |
|
Max. Working Speed |
20m/min |
|
Operation Command |
G code, HPGL |
|
Operation System |
Weihong NC Studio |
|
Working Voltage |
AC380V/50Hz |
Founded in 1992, with 22 years developing, Foshan Zhunda Machinery Co., Ltd. Has gained rich experience on research and manufacture for hot/cold press, panel saw, lift table, edge bander and finger jointer/assembler series in woodworking machinery industry.
We understand products quality is the life of an enterprise, to ensure high quality of our products, we use imported-components from Japan, Taiwan as the key spare parts and our machines are made through precision manufacturing process by professional workers. Continual improvements are also made to satisfy the customers' Need.
Our advantage:
1. Rich experience on Hot/Cold Press, Precision Panel Saw, lift table and finger jointer/assembler.
2. Strong technical capability and willing to develop new models against customer' S requirements.
3. Competitive Price
3. Regulated production procedure and experienced workers insure our high products quality.
4. Long time improvement on all spare parts and structure makes our machines works stable and less much maintenance time than other products.
For mutual benefit, it is our aim to produce high quality woodworking machinery that suitable to you at the most competitive price. Sincerely welcome your inquiry and please feel free to contact us.
