| Price: | US $ 8000set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | (XYI-360x1120) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | 3 Roll Rubber Calender |
| Function: | Rubber Calendering and Sheeting |
| Heating: | Electric Oil or Steam |
| Basement: | Welding |
| Model: | Xy Series |
| Roll: | Cast Iron Material ,Hollow Spring Cooling |
| Colour: | According to Customer |
| Operation: | PLC Automatic |
| Size: | 2300X1500X1800 |
| Electric Parts: | Schneider |

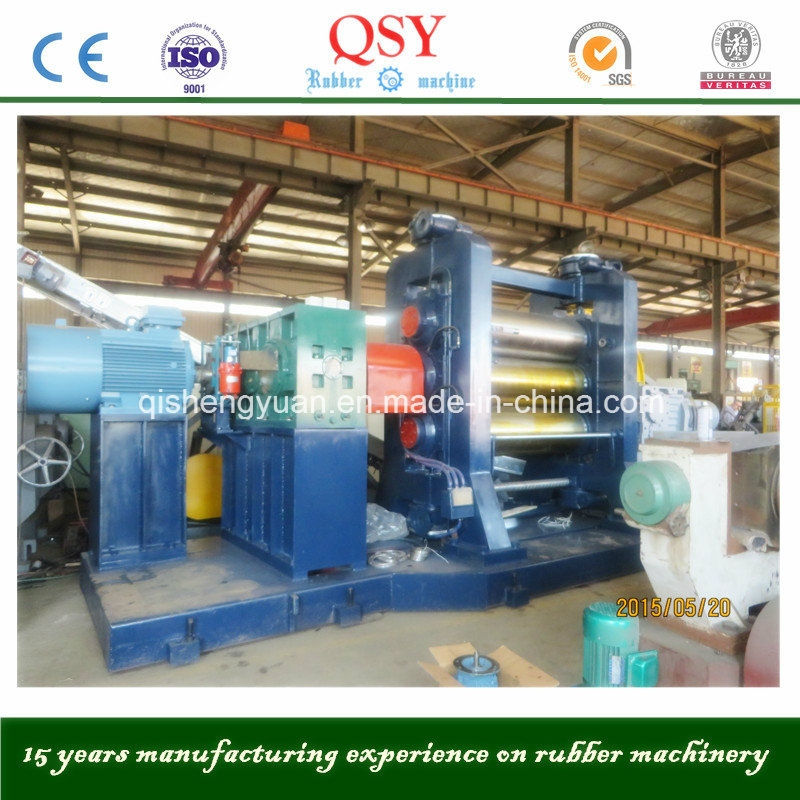

3 Rolls Rubber Calender Machine
1- Name: Rubber calender, three-roll rubber calender,two roll rubber calender,four roll rubber calender.
2- Function: Make rubber sheet which need higest thickness quality.
3- Features
A - The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.
B- The rolls are arranged in I, and L forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction
C- The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.
D- The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.
Benefits of Rubber Calendar Machine:
Rubber Calender
1. Rubber calender suitable for many rubber products, has high efficiency
2. Rubber calender can according to certain form arrangement, under certain temperature, extends the rubber or the plastic suppression certain thickness and the superficial shape film
3. Rubber calender may carries on to the textile fiber curtain canvas or the steel wire curtain cloth hangs the rubber the machinery.
4. The rubber calender have several type (two rolls/three roll/four rolls)you chose it according your need.
Type | Dia.x Length of roll (mm) | Linear speed of mid.roll (m/min) | Min thickness of calendered product (mm) | Width of calendered product(mm) | Motor Power(KW) | LxWxH(mm) | Weight (t) |
XY-3I1120 | 360x1120 | 7.5-22.5 | ≥0.20 | 900 | 13.3/40 | 6050x1500x2240 | 11.6 |
XY-3I1400 | 400x1400 | 8.8-26.39 | ≥0.20 | 1200 | 18.3/55 | 5600x1410x2385 | 15 |
XY-4F1120 | 360x1120 | 7-21 | ≥0.20 | 900 | 18.3/55 | 6100x1660x2330 | 13 |
XY-4F1400 | 400x1400 | 8.8-26.39 | ≥0.20 | 1200 | 25/75 | 6350x1850x2490 | 18 |
XY-3L1120 | 360x1120 | 2-20 | ≥0.20 | 900 | 37 | 5500x1700x2300 | 11.7 |
XY-5T635 | 240x635 | 9 | ≥0.50 | 550 | 7.5 | 1400x1000x1870 | 2 |
XY-5T700 | 230x700 | 1.5-13 | ≥0.50 | 600 | 7.5 | 3600x1620x1030 | 3.5 |
XY-4r1730 | 610x1730 | 5.4-54 | ≥0.15 | 1500 | 180 | 7050x4110x3750 | 64 |
XY-4r1830 | 610x1830 | 6-60 | ≥0.10 | 1600 | 67x4 | 8250x3860x4640 | 68 |
1.Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2.Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3.Can you supply sample?
Yes,we can supply you free small samples,but air cost will be paid by customers.
4.What's your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5.Are you near to Qingdao airport?
Yes,only within 1 hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6.Do you have any certificate of your products?
Yes, CE, BV, SGS, REACH.
7.Do you have any certificate of your company?
Yes, ISO 9001:2000.
8.Did your products apply the patent?
Yes,we have various kind of vulcanizing machine , mixing machine , tyre recycling machine patent.
