Specifications

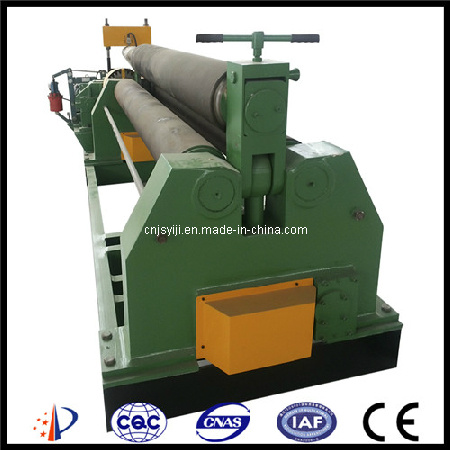

Mechanical symmetrical plate rolling machine
1. High precision, Wide application
2. ISO9001: 2008
3. High performance.
1. The machine adopts 3-roller asymmetrical structure with the upper roller as the main drive
And the lower roller making vertical movement so as to clamp the plate materials tight. The
Machine drive comes from the engagement between the gear of the lower roller and the
Gear of the upper roller.
2. The machine is the most precise 3-roll machine in its category. The RGS design reduces
To a minimum the distance between the bending points guaranteeing higher bending accuracy.
3. The Ultra wide roll support with lubrication circuit is mounted within linear slides to prevent wear and tear.
4. The very high rotation power is a guarantee of the Machine superior rolling torque and speed, available
Without loss of energy as all three rolls are driven independently by Gear and gearboxes directly coupled
To the rolls shafts.
Model |
Unit |
W11-20×2500 |
Max thickness of plate |
mm |
20 |
Max width of plate |
mm |
2500 |
The min diameter when full load |
mm |
850 |
The diameter of up-roller |
mm |
340 |
The diameter of bottom-roller |
mm |
280 |
The yielding limit of bend sheet |
group |
≤245
|
The distance of bottom rollers |
mm |
490 |
Rolling speed |
m/min |
5 |
The power of main motor |
kw |
15 |
Our company is specialized in producing series of industrial sweeper machine, shearing machine, bending machine, rolling machine and plate unrolling leveling shearing production line of "Juli" brand. The products are widely applied to light industry, aviation industry, marine industry, metallurgy, instrument industry, electrical equipment, stainless steel product, construction and decoration industry, etc. The products are exported to Europe, Southeast Asia, the Middle East, etc.
Our company has several top-class experts with professional knowledge in cutting, bending, rolling and plate unrolling leveling shearing production line. The quality and technology are ranked as the first class in this field. Our company is constantly developing the leading-edge products with advanced consciousness, new concept, innovation and the overseas technology, which will lay the solid foundation for "Juli" to be a famous brand in the world in machine tool industry. All the staff members are devoted themselves to serving the company with meticulous professional dedication and solidarity. We are sincerely looking forward to cooperating with friends all over the world to create greater success.
Welcome you to visit at any time.
