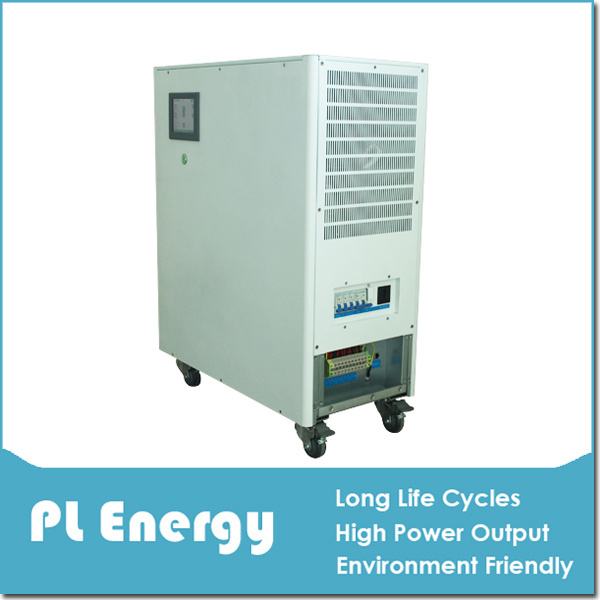

3000W Solar Powered Lithium Uninterrupted Power Supply (UPS)
BRIEF INTRODUCTION
PL Energy Group Ltd specializes in the R & D, production promotion, installation, and service of Micro distributed power generation and storage system. The company has full set of micro-grid system, control system, core production, and complete solution, effectively guaranteeing the improvement and extend of technology and sustainable development of the enterprise.PL Energy products are mainly used in places such as industrial factory buildings, remote, public buildings and house roofs.
SPECIFICATIONS
Household Solar Energy Storage System (ESS30)
Model No.
ESS30
ESS30B
Battery
Battery Capacity
6500Wh
8000Wh
Battery Type
Lithium Ion Battery
AC Charging
Input Voltage
88~264V AC
Power Factor
>=0.95 (full load)
Input Frequency
50/60Hz±5Hz
Max Charge Power
2400W
Max Efficiency
>92%
Output
Rated Output Power
3000W
Peak Output
4000W
Output Voltage
100V/110V/120V AC or 220V/230V/240V AC
Output Frequency
50Hz / 60Hz
Overload Ability
120% < load < 130% @10min; 130% < load < 150% @10s
UPS Function
YES
On/Off Grid
On & Off Grid
Max Efficiency
>92% (>70% Load)
PV Charge
Max Input Power
2400W
MPPT Input Voltage
75V DC
MPPT Amount
2
MPPT Input Voltage
75~140V DC
Max Input Voltage
150V DC
MPPT Efficiency
99.5%
Max Efficiency
>96%
Solar Charging Mode
MPPT
General
Working Condition
Relative humidity: 5%~90%
Temperature: 0~45ºC
Production Dimension
710 x 350 x 900 mm
Packing Dimension
805 x 525 x 1065 mm
Net Weight
147kgs
Gross Weight
157kgs
4 Working Modes
TRADE TERMS
- Payment Terms: 30% in advance as deposit, 70% balance before delivery
- Lead Time: 20-25 working days after receipt of payment
- Packing: Standard exporting carton or wooden case
- Shipping: By sea, by air, by express
- Loading port: Shenzhen, China
WHY CHOOSE US?
· High capacity, high discharge rate, long lifespan qualied battery products
· A professional sales team which provide consultant service and the most competitive battery solutions.
· OEM and ODM designs and lables are welcome.
· Small Order is available.
· Wide-range battery products to satisfy different customer's requirement.
· Quick response, every inquiry will be replied within 24 hours.
· Good after-sale service, long product warranty and continual technique support.
WHAT WE CAN DO?
- Battery Pack Design
PL energy will design the scientifical, economical and applicable lithium battery pack according to clients' application and their detail requirements about charging current, discharge current, battery operation environment, battery dimensions and so on.
- Battery Cell Production
PL Energy has integrated cylindrical, prismatic and lithium polymer battery cell production, so, we can flexibly using different battery cells to meet clients' requirements.
- Battery Pack Production
PL Energy do not only provide lithium battery for energy storage, but has wide range of applications as below.
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, Cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
- Energy Storage System integration
PL Energy ESS has integrated battery cell / module, BMS, inverter, charge controller in to one cabinet. Meanwhile, PL Energy also provide ESS + Solar system integration, and can provide turnkey solution.
