Product Specifications
| Prod Model: |
PL-ESS30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
6500wh |
| Weight: |
100kgs |
| AC Charging: |
88~264V AC, 50/60Hz±5Hz |
| Output Power: |
Rated 3000W, Peak 4000W |
| PV Charge: |
Max 2400W |
| MPPT Input Voltage: |
75~140V DC |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Solar / Wind Power System |
| Nominal Voltage: |
48V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
Product Description

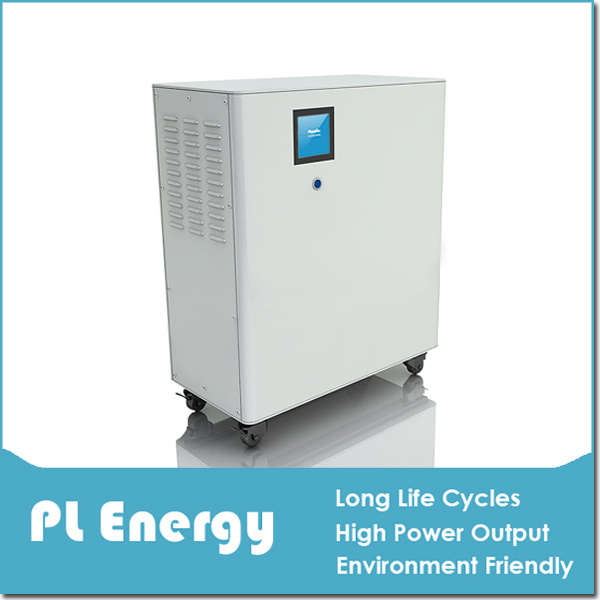

6500W Lithium Battery UPS Power Supply (for solar home power system)
BRIEF INTRODUCTION
PL Energy Group Ltd specializes in the R & D, production promotion, installation, and service of Micro distributed power generation and storage system. The company has full set of micro-grid system, control system, core production, and complete solution, effectively guaranteeing the improvement and extend of technology and sustainable development of the enterprise.PL Energy products are mainly used in places such as industrial factory buildings, remote, public buildings and house roofs.
SPECIFICATIONS
| Household Solar Energy Storage System (ESS30) |
| Model No. | ESS30 | ESS30B |
| Battery |
| Battery Capacity | 6500Wh | 8000Wh |
| Battery Type | Lithium Ion Battery |
| AC Charging |
| Input Voltage | 88~264V AC |
| Power Factor | >=0.95 (full load) |
| Input Frequency | 50/60Hz±5Hz |
| Max Charge Power | 2400W |
| Max Efficiency | >92% |
| Output |
| Rated Output Power | 3000W |
| Peak Output | 4000W |
| Output Voltage | 100V/110V/120V AC or 220V/230V/240V AC |
| Output Frequency | 50Hz / 60Hz |
| Overload Ability | 120% < load < 130% @10min; 130% < load < 150% @10s |
| UPS Function | YES |
| On/Off Grid | On & Off Grid |
| Max Efficiency | >92% (>70% Load) |
| PV Charge |
| Max Input Power | 2400W |
| MPPT Input Voltage | 75V DC |
| MPPT Amount | 2 |
| MPPT Input Voltage | 75~140V DC |
| Max Input Voltage | 150V DC |
| MPPT Efficiency | 99.5% |
| Max Efficiency | >96% |
| Solar Charging Mode | MPPT |
| General |
| Working Condition | Relative humidity: 5%~90%
Temperature: 0~45ºC |
| Production Dimension | 710 x 350 x 900 mm |
| Packing Dimension | 805 x 525 x 1065 mm |
| Net Weight | 147kgs |
| Gross Weight | 157kgs |
APPLICATIONS
1. Solar Panels
2. ESS
3. Bi-direction Electric Meter
4. Low-Voltage Distributor
5. AC loads
6. Monitoring
TRADE TERMS
- Payment Terms: 30% in advance as deposit, 70% balance before delivery
- Lead Time: 20-25 working days after receipt of payment
- Packing: Standard exporting carton or wooden case
- Shipping: By sea
- Loading port: Shenzhen, China
WHY CHOOSE US?
· High capacity, high discharge rate, long lifespan qualied battery products
· A professional sales team which provide consultant service and the most competitive battery solutions.
· OEM and ODM designs and lables are welcome.
· Small Order is available.
· Wide-range battery products to satisfy different customer's requirement.
· Quick response, every inquiry will be replied within 24 hours.
· Good after-sale service, long product warranty and continual technique support.
WHAT WE CAN DO?
- Battery Pack Design
PL energy will design the scientifical, economical and applicable lithium battery pack according to clients' application and their detail requirements about charging current, discharge current, battery operation environment, battery dimensions and so on.
- Battery Cell Production
PL Energy has integrated cylindrical, prismatic and lithium polymer battery cell production, so, we can flexibly using different battery cells to meet clients' requirements.
- Battery Pack Production
PL Energy do not only provide lithium battery for energy storage, but has wide range of applications as below.
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, Cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
- Energy Storage System integration
PL Energy ESS has integrated battery cell / module, BMS, inverter, charge controller in to one cabinet. Meanwhile, PL Energy also provide ESS + Solar system integration, and can provide turnkey solution.
WELCOME TO CONTACT US!
