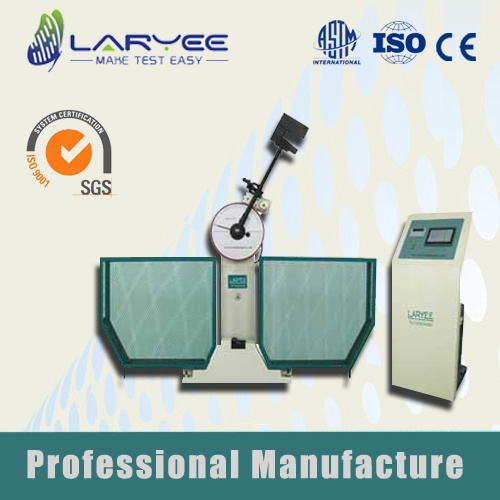

300j Charpy Pendulum Imapct Testing Machine (CMT2130/2250/2275)

Product Specifications

Prod Model:	CMT2130/2250/2275
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	300j Charpy Pendulum Imapct Testing Machine
Impact Energy:	150j; 300j;250j;500j;750j
Impact Velocity:	5.2m/S;5.4m/S;5.24m/S
Raising Angle:	150°
Striker Tip Angle:	30°
Pendulum Pole Length:	750 Mm;800 Mm;750mm
Standard Sample Span:	40mm
Power Supply:	3 Phase, ~380V/220V, 50Hz/60Hz
Type:	300j Charpy Pendulum Imapct Testing Machine
Maxcapacity:	150j; 300j;250j;500j;750j
Weight:	600kg, 900kg.3000kg
Power Source:	3 Phase, ~380V/220V, 50Hz/60Hz

Product Description

Introduction

Charpy (simple-beam) Impact Testing Machine mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron material and their alloy, under dynamic load impacting.
This machine can be operated semi-automatically. The pendulum of the machine is raised or released automatically by button pressed. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise. The machine can do the test according to ASTM E23 and ISO 148 or other equal standards.

Features


1.Two Pendulums (big and small) and two scales reading which enlarge the test range of energy.
2.Safety pin guaranties the impact action. Protection shell avoids the hit and break sample splashing.
3.Electromagnetic clutch hold the rising pendulum. Power sudden off still in safety.
4.CMT22xx series Pendulum rising, impact, free releasing is realized as automatically by control remote and touch LCD controller. Fully PLC control and I/O data processing. Test data store and printing function. Dial gauge and Digital out put synchronous test result.

Specification


Model	CMT2230	CMT2250	CMT2275
Impact energy	150J; 300J	250J;500J	750J
Impact velocity	5.2m/s	5.4m/s	5.24m/s
Raising angle	150°	150°	150°
Striker tip angle	30°	30°	30°
Anvil taper angle	11°	11°	11°
Pendulum Pole length	750 mm	800 mm	750
Standard Sample span	40mm	40mm	40mm
Round angle radius of grips	R1-1.5mm	R1-1.5mm	R1-1.5mm
Round angle radius of striking edge	R2-2.5mm	R2-2.5mm	R2-2.5mm
Optional striking  edge by order	R8mm	R8mm	R8mm
Power supply	3 Phase, ~380V/220V, 50Hz/60Hz
Dimension	2100×650×1900 mm		2450 × 1200 × 2455
Weight(Kg)	600kg	900kg	3000kg
	CMT22xxx Series
Standard Accessories	Touch LCD indicator  Mini Printer
	Main Machine, Protect Shell, Manual controller,  Anchor Bolts, Jaws (Including support), Pendulum weight,  Span specimen plate, Specimen Centering Plate
