Price: | US $ 1700-3500/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Model | ZIT2175 | ZIT2275 | ZIT2122 | ZIT2222 |
Impact energy | 1J, 2.75J, (5.5J) | 5.5J, 11J, 22J | ||
Energy Accuracy | 1% | 1% | ||
Impact speed (m/S) | 3.5 | 3.5 | ||
Pendulum moment | Pd1 = 0.53590Nm Pd2.75 = 1.47372Nm Pd5.5 = 2.94744Nm Pd11 = 5.8949Nm Pd22 = 11.7898Nm | |||
Distance between striking edge to upper surface of clamps | 22mm | |||
Raising angle | 150° | 150° | ||
Round angle radius of striking edge | R=0.8mm | R=0.8mm | ||
Sample span size(mm) | 10, 12.7 | 10, 12.7 | ||
Impact center distance (mm) | 335 | 335 | ||
Scale Reading | 0-1J Min. scale: 0.01J 0-2.75J Min.scale: 0.025J (0-5.5J Min. scale: 0.05J) | 0-5.5J Min. scale: 0.05J 0-11J Min. scale: 0.1J 0-22J Min. scale: 0.2J | ||
Dimension | 550×350×900 mm | 650 ×400 × 1100mm | ||
Weight(Kg) | 80kg | 95kg |

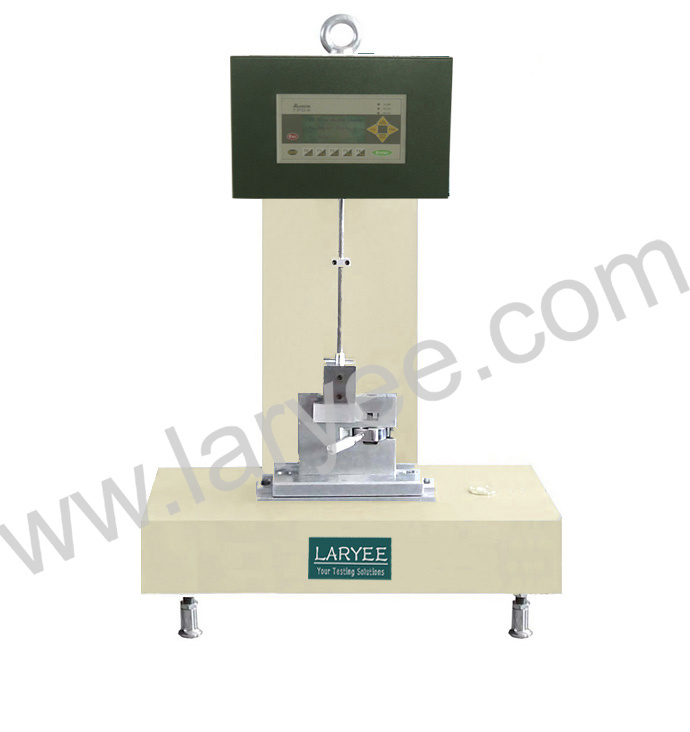

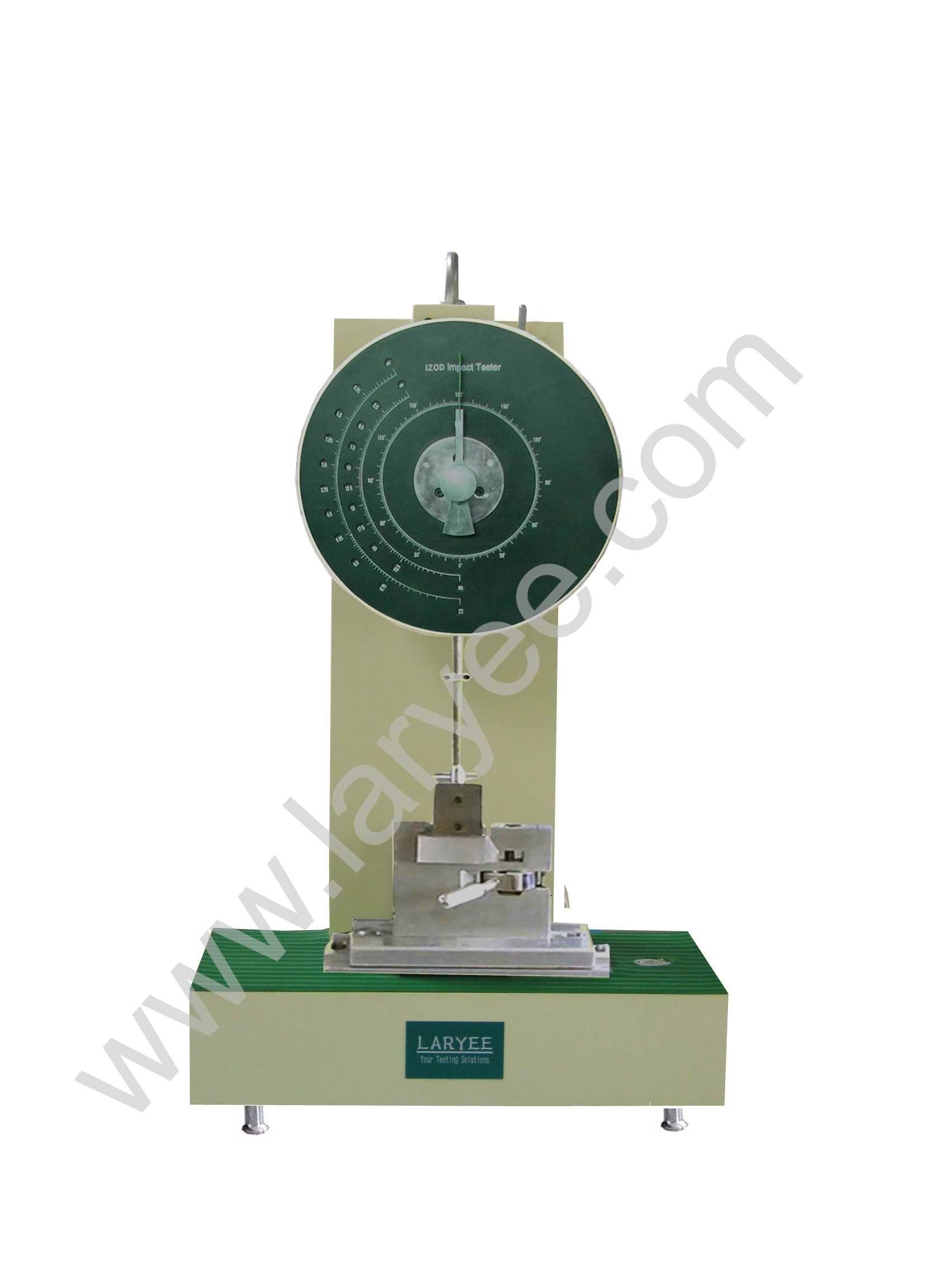

Prod Model: | ZIT2222 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Impact Energy: | 150- 800j |
Standard Sample Span: | 40mm |
Controll System: | Fully PLC Control, I/O Data Processing |
Test Data: | Test Data Store and Printig Funciton |
Readout: | Dial Guage, Digital out Put Test Result |
Test Material: | Steel, Iron, Alloy and Other Ferrous Metal |
Applicable Area: | Quality Testing Section, College, Industrial and M |
Test Standarnd: | ASTM E23, ISO148 |
Power Supply: | 3 Phase, 380V, 50/60Hz |
Weights: | 500-1000kg . |
Type: | Impact Testing Machine |
Weight: | 500-1000Kg |
Power Source: | AC220V |
Maxcapacity: | 22j |
