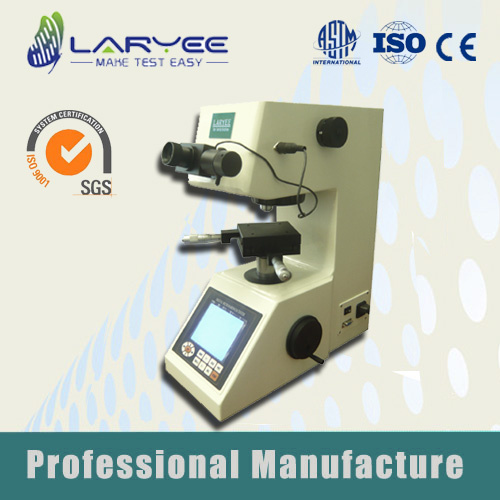

Large Screen Digital Micro Hardness Tester (HVM-1000/2000)

Name: Large Screen Digital Micro Hardness Tester (HVM-1000/2000)
Brand: china-manufacturer-directory.com
SKU: 680796345
Availability: InStock
Rating: 4.4 (121 reviews)

Supplier:	Laryee Technology Co., Ltd.
Price:	US $ 6000-8400/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HVM-1000/2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Large Screen Digital Micro Hardness Tester
Type:	Vickers Hardness Tester
Measuring Range:	HV
Application:	Metal
Standard:	ASTM

Product Description

The large screen digital micro hardness tester made with a unique and precise desigh in the fields of mechanics, optics and light source.
It firstly adopted cold light source is able to produce a clearer image of indentation and hence a more precise measuremtn.

Description	HVM-2000
Test load	0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf)
Leus/indenter switch	With hand Turret
Carriage control	Automatic loading and unloading method
Magnification of microscope	For measurement: 400X (Object lens 40 x, eyepiece 10 x )
Magnification of microscope	For observation: 200X (object lens 20 x, eyepiece 10 x )
Load holding time	5-60 second
Measuring microscope	Min measuring unit: 0.0625um
Testing field	1-2967HV
Micro test table	Dimensions 100x100mm
Movement	25mm in X& Y axis
Max. height of specimen	70mm
Max. depth of specimen	95mm
Out put	Installed with innner-printer and RS232 interface
Power Supply	AC110V/220V 60/50HZ
Dimensions	(L ) 425 X (W) 245X (H)490mm
Weight	Gross Weight: : 42KG, Net Weight: 35KG

Laryee Technology is a top leading Chinese testing equipment and instrument product manufacture and solution system integration supplier.Our Headquater is located in Beijing, China.And also we have two factories which invested by LARYEE base both in Beijing and Jinan, Shandong provice.According to all kinds of testing requirement of GB, ISO, ASTM, BS EN and etc, our international technician and business team can offer our different field customer best testing solutions and general or special equipments.

Laryee's nice new products, superior technology, excellent quality and well service have won the customers all over the world.Nowadays, Laryee has the good relationship with many customers such as Southeast Asia, Middle East, Latin America, Africa, European and so on.
