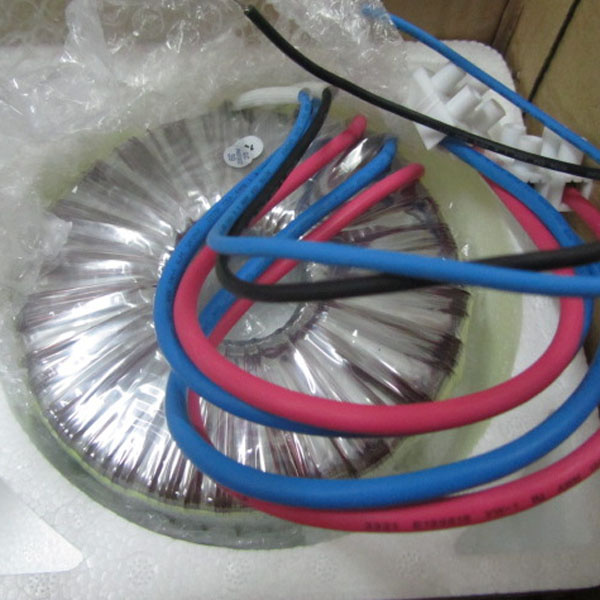

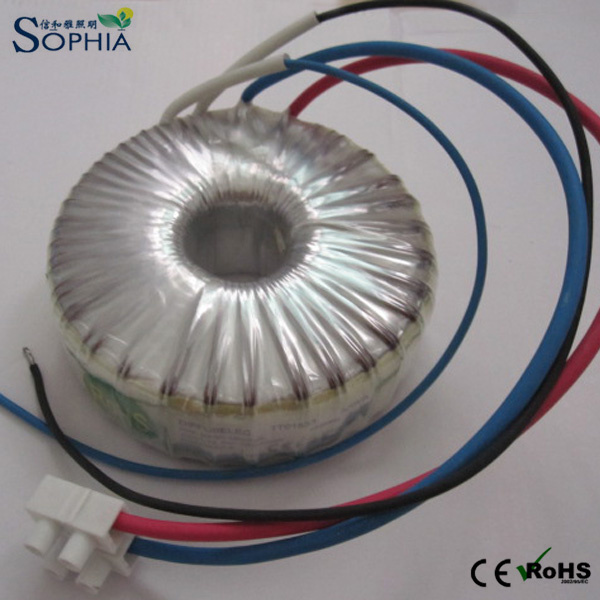

300va/600va Toroidal Transformer, Power Transformer, Current Transformer, Lighting Transformer with UL CE

Name: 300va/600va Toroidal Transformer, Power Transformer, Current Transformer, Lighting Transformer with UL CE
Brand: china-manufacturer-directory.com
SKU: 693097772
Availability: InStock
Rating: 4.6 (87 reviews)

Supplier:	Shenzhen Sophia Lighting Co., Ltd.
Price:	US $ 28-30/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SYTT01533, SYTT01536
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Exciting Current:	30mA
Temperature Rise:	50c
Enamelled Copper Wire:	600V, 180c UL
Lead:	UL3321 AWG10# or 16#
Insultation:	Class B
Application:	Elevator
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Sophia

Product Description

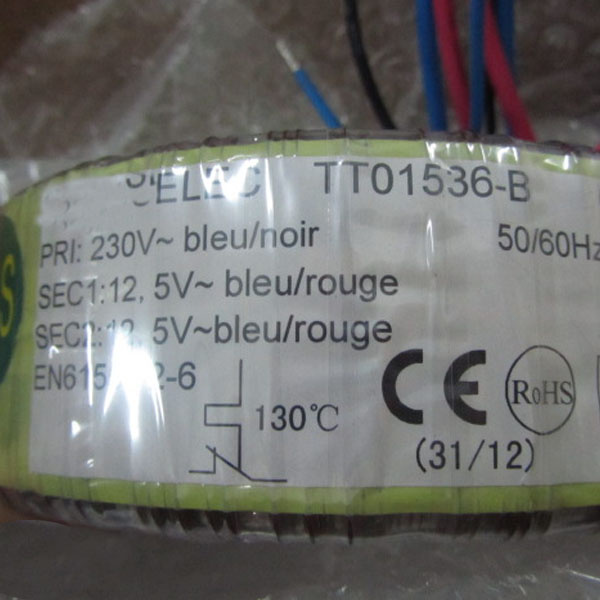

Insulation: Class B;

Standard: EN61558, CE, All RoHS components;

Input: 0-230V;50/60Hz(BLU-BRN);

No-load: 0-13.32V

Output:2*( 0-12.5V+/-0.2V, 24A); (BLUE-RED), (BLU-RED);

Power: 300VA/600VA.

Dimension: OD160mm; H: 68mm(including wire exit);

Thermal switch: 130 degree;
Temperature rise: At ambient temperature 25C, Pri & Sec Winding 65C max after loading for four hours.

No load: 30mA maximum;

Hi-Pot: 4.2kV, 50Hz, 2mA, 60S.

Copper wire: 180 degree;

Lead wire:

Pri UL3321 AWG16#, 600V, 150 degree;

Sec:UL3321 AWG 10#, 600V, 150 degree;

Pri wire 450mm, wire end tinned 10mm;

Sec Wire 350mm, wire with 2*PA16 terminal block;

Accessory: 2* rubbers, 1* metal disc, 1 *flat washer, 1*lock washer, 1* screw.

Net weight: 5.3+/-0.3kg.

Power	300VA/600VA
Input	0-230V
Output	0-12.5V 24A(300VA)/ 0-12.5V 24A, 0-12.5V24A(600VA)
Hi-pot	4KV 50Hz, 2mA 60S
Inrush current	30mA Max
Copper wire	180ºC enameled copper wire with UL
Thermal switch	130ºC thermal switch
Temperature rise	25ºC ambient temperate, rated loading for 4 hours, temperature rise less than 65ºC
Accessory	Metal plate, rubber, bolt, nut, lock washer
Dimension	140x53mm(300VA), 158x68mm( 600VA) ODxH
Standard	EN61558-2-6

Shenzhen Sophia lighting Co., Ltd was founded in 2009, which specializes in researching, developing, producing and exporting first class LED professional lighting and Transformers. Our products are produced with CE & RoHS compliance which include LED Headlight, LED Emergency light, LED Search light, LED Pool light, LED Explosive proof light, Toroidal transformer, EI transformers and so on.

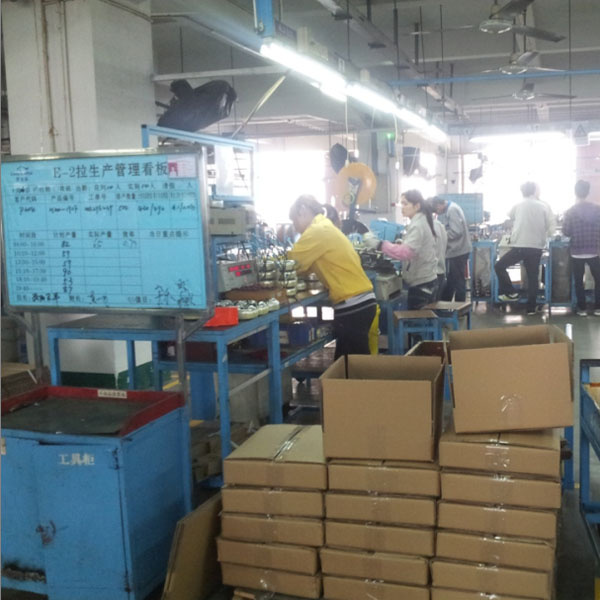

The main advantages of SOPHIA LED lightings and transformers are stable quality, delicate workmanship, high-efficient, long-lifespan. The most fortune of Sophia is our skilled and loyal workers, they concentrates on workmanship and quality, these ensures we can do like we promise. Sophia Lighting runs strictly according to ISO9001: 2008 quality control system. Most of lightings were designed by our experienced R&D team, many of these veterans have 10-15 years experience in lighting and Power supply. SOPHIA has made various toolings for LED Headlight, LED Emergency light, LED Pool light, LED Search light and transformers. For all raw materials, from LED chip, power supply, copper wire to screw, box, we inspect carefully and insist use brand one, quality one. From soldering to wire, we try to improve our workmanship. Safety and durability are our most import principle. All products go through strict quality controlling procedures and aging test process to make sure all the lamps with stable quality and good performance.

With advanced management, professional team, unique design, excellent quality, reasonable price, rapid delivery and all-around services, SOPHIA products have been well-accepted all over the world, especially very popular in Europe, America and Asia markets.

Adhering "good reputation, customer is supreme, long time partners" business principle, with the idea of "Honesty, Quality, Innovation, Efficiency" to serve customers all over the world. We will keep on developing new products, improving quality and service, to make more contributions in low carbon age.
