Product Specifications
| Prod Model: |
F30-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X-ray: |
Machine |
| Max Rated Capacity: |
85kvp, 320mas |
| Power Supplyvoltage: |
180-240V(Single) |
| Frequency: |
50Hz |
| Current: |
Fluoroscope 3A (Continuous) |
| Radiography: |
16A(Instantaneous) |
| Internal Resistance Of Power Supply Wire: |
<=0.7 |
| Nominal Power: |
3kw |
| Fluorescent Screen Size: |
Size280mm X 350mm |
| Distance Between The Focus To The Screen: |
620mm |
| Classification: |
Imaging Diagnostic Equipment |
| Type: |
X Ray Equipment |
| Certification: |
ISO13485 |
Product Description

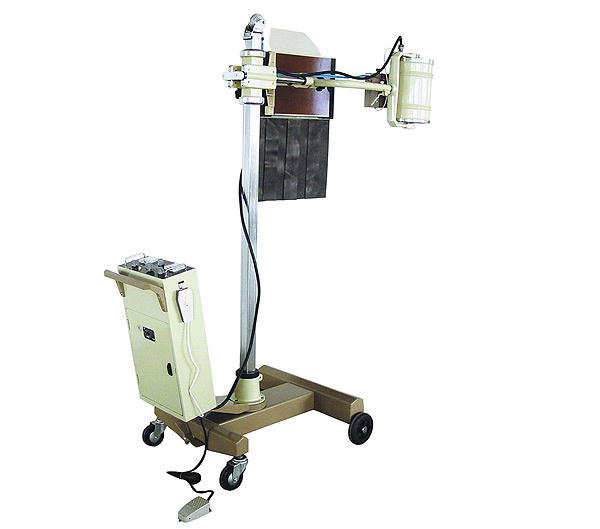

This equipment is commonly used in ward and emergency treatment room for fluoroscopy and radiography. Main charactor:
Combined X-ray generator.
Single focus, full ware rectification.
Single-Chip microcomputer controls and convenient service.
LCD display and error can be automatic warned
Remote control exposure device
Main Technical Data:
| Max Rated Capacity | 85kVp, 320mAs |
| Power supply Voltage | 180-240V(single) |
| Frequency | 50Hz |
| Current Fluoro scope | 3A (Continuous) |
| Radiography | 16A(Instantaneous) |
| Internal resistance of power supply wire | ≤ 0.7Ω |
| Nominal power | 3KW |
| Fluorescent screen size | 280mm x 350mm |
| Distance between the focus to the screen | 620mm |
| Mobile distance of carrier | 850mm |
| Net weight | 144kgs |
| Gross weight | 227kgs |
Max Rated Capacity: 85kVp, 320mAs
Power supply Voltage: 180-240V(single)
Frequency: 50Hz
Current Fluoroscope: 3A (Continuous)
Radiography: 16A(Instantaneous)
Internal resistance of power supply wire: ≤ 0.7Ω
Nominal power: 3KW
Fluorescent screen size: 280mm x 350mm
Distance between the focus to the screen: 620mm
Mobile distance of carrier: 850mm
Specification of X-ray TubeModel: XD1-3/100 Fixed anode, single focus 2.3mm
Packing: 1set/Woodencase, 1490x890x2080
Net weight: 144kgs
Gross weight: 227kgs
