30tons Per Day Kraft Paper Making Machine (3, 200mm)
Product Specifications
| Prod Model: |
3, 200mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Waste Paper |
| Paper Making Style: |
Kraft Paper, Corrugated Paper |
| Weight Of Paper: |
100-250g |
| Working Speed: |
80-150m/Min |
| Capacity: |
30-35t/D |
| Process: |
Paper Machine |
| Usage: |
Kraft Paper Machine |
| Automatic Grade: |
Automatic |
| Computerized: |
Yes |
| Sheet Former Type: |
Cylinder Mould |
| Paper Thickness: |
Thick Paper |
| Condition: |
New |
| Type: |
Corrugated Paper |
| Certification: |
ISO |
Product Description
best seller! 30 tpd Kraft Paper Making Machine( 3200mm)Technical data:
1. Material: Waste paper
2. Paper making style: Kraft paper, corrugated paper
3. Weight of paper: 100-250g
4. Net paper width: 3200mm
5. Width of cylinder mould: 3750mm
6. Rail gauge: 4300mm
7. Working speed: 80-150m/min
8. Capacity: 30-35T/D
9. Drive way: Alternating current frequency conversion, section drive The mian structure:
1.Cylinder part:4 stainless-steel cylinder(Φ1500mm×3750mm),
4 couch roll (Φ500mm×3750mm),
1 reverse roll(Φ500mm×3750mm),
rubber hardness HS38°±2,
attached with 4 pressure mould former(made of polyethylene board).
2.Press part: 1 Natural marble roller(Φ800mm×3750mm),
1 rubber roll(Φ750mm×3750mm). rubber hardness HS90°±2.
Pneumatic compression device.
3.Prepress part: 2 Natural marble roller(Φ500mm×3750mm).
2 rubber roll(Φ500mm×3750mm). rubber hardness HS90°±2,
Pneumatic compression device.
4.Dryer part: 32 alloy cylinder(Φ1500mm×3750mm),
arrangement:24+sizing machine +8.
2 anti-roll(Φ750mm×3750mm).rubber hardness HS90°±2.
Pneumatic compression device.
multi cylinder equipped with net wire devices
5.Winding part: 3200mm cylinder winding paper machine and frame style
rewinding machine.

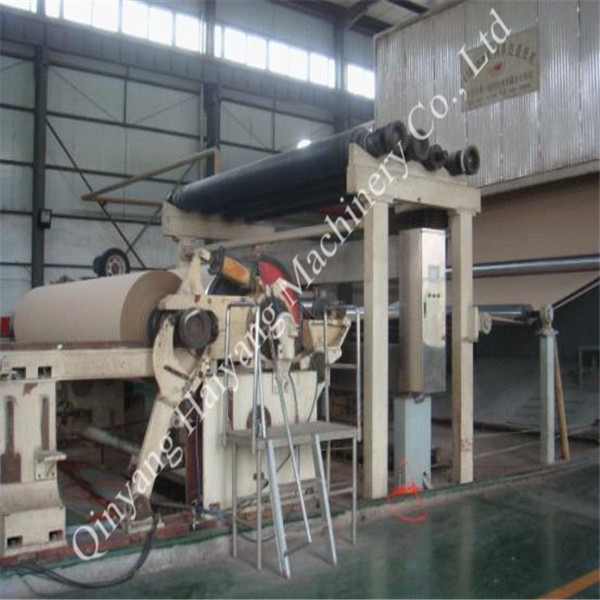

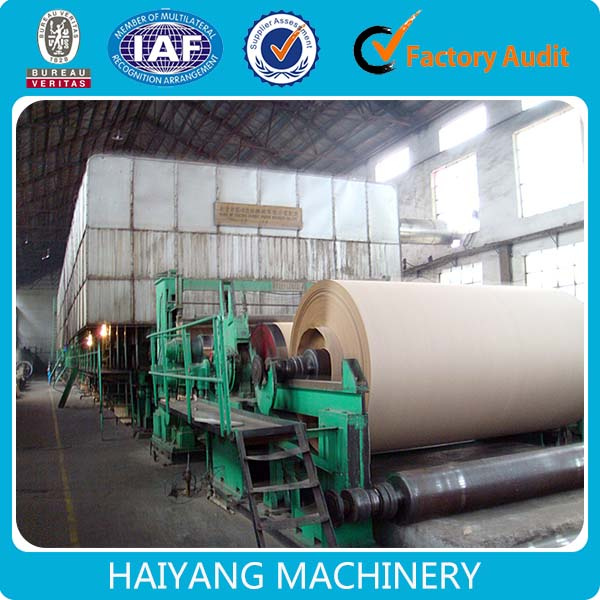

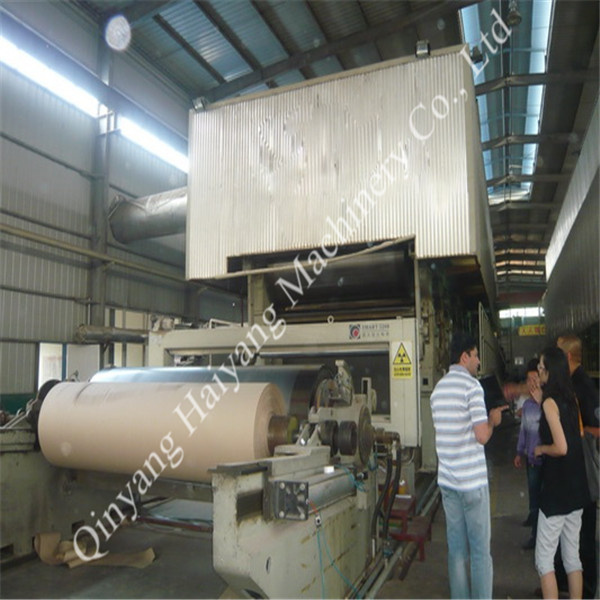

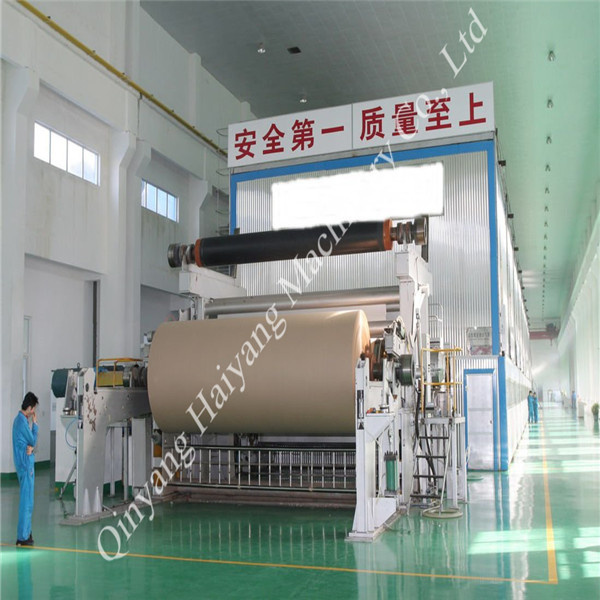

6.Driving and controlling part: using of AC frequency conversion, and driving by step.Picture of paper machine:
| N0 | Equipment | QTY(set) |
| 1 | 3200mm Kraft paper machine | 1 set |
| 2 | Dryer can exhaust hood | 1 suite |
| 3 | axial-flow ventilator | 1 set |
| 4 | Pressure trough network | 3 sets |
| 5 | Model-16 Roots vacuum pulp | 1 set |
| 6 | Suction box | 3 sets |
| 7 | 3200mm winding machine | 1 set |
| 8 | 3200mm rewinding machine | 1 set |
| 9 | 3200mm calender | 1 set |
| 10 | 5m3 high consistency hydrapulper | 2 sets |
| 11 | 2m2 High frequency vibration screen | 2 sets |
| 12 | Vertical pressure screen | 2 sets |
| 13 | 450 Double disks refiner | 2 sets |
| 14 | Decker thickener | 2 sets |
| 15 | 750 Thruster | 4 sets |
| 16 | Pulp pump(4″) | 4 sets |
| 17 | Pulp pump(6″) | 5 sets |
| 18 | Pulp pump(8″) | 1 set |
| 19 | Sand remover | 4 sets |
| 20 | Inverter control cabinet | 1 set |
| 21 | Air pulp cabinet | 1 set |
| 22 | Work table | 1 suite |
| 23 | Coal-burning boiler(6T) | 1 set |
| 24 | All the accessory motors | |
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
