Price: | US $ 6.47-6.9/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 200/Piece |
Pay Type: | L/C,T/T,Western Union |
Model |
D-30A |
D-30B |
D-30C |
|||||
output |
DC voltage |
CH1:5V |
CH2:12V |
CH1:5V |
CH2:24V |
CH1:12V |
CH2:24V |
|
Voltage tolerance |
± 2% |
+3%~-7% |
± 2% |
+4%~-6% |
± 2% |
+5%~-7% |
||
Rated current |
4A |
1A |
2.2A |
1A |
1A |
1A |
||
Current range |
0.5~4A |
0.2~1A |
0.4~2.2A |
0.1~1A |
0.3~1A |
0.1~1A |
||
Rated power |
32W |
35W |
36W |
|||||
Ripple&noise |
80mvp-p |
100mvp-p |
80mvp-p |
120mvp-p |
100mvp-p |
120mvp-p |
||
DCvoltage ADJ.range |
CH1:-9%~+10% |
|||||||
input |
Voltage range |
90~132VAC/180~264VAC( selected by switch ) , 255~373VDC |
||||||
frequency |
47~63HZ |
|||||||
AC current |
0.8A /115VAC , 0.45A /230VAC |
|||||||
efficiency |
73% |
75% |
77% |
|||||
Inrush current |
Cold start current18 A /115VAC , 36A /230VAC |
|||||||
Leakage current |
< 2mA/240VAC |
|||||||
protection |
overload |
Rated output power 110%~150 start over load protection |
||||||
protection type :part layer type current limit , auto-recovery after fault condition is removed |
||||||||
----- |
----- |
|||||||
----- |
||||||||
environment |
Working temp,humidity |
-10 °C~+60°C , 20%~90%RH |
||||||
Storage temp,humidity |
-20 °C ~+85 °C , 10%~95%RH non-condensing |
|||||||
Withstand vibration |
10~500HZ , 2G 10min/1cycle , period for 60 minutes , each axes |
|||||||
safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||||
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC |
|||||||
Fit standard |
Safety standard |
Compliance to UL1012 |
||||||
EMC standard |
Compliance to EN55022 , CLASSA |
|||||||
others |
Dimension |
129*98*38mm(L*W*H) |
||||||
Weight/packing |
0.4kg /45pcs/19kg/0.034m ³ /1.2CUFT |
|||||||
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25 °C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |

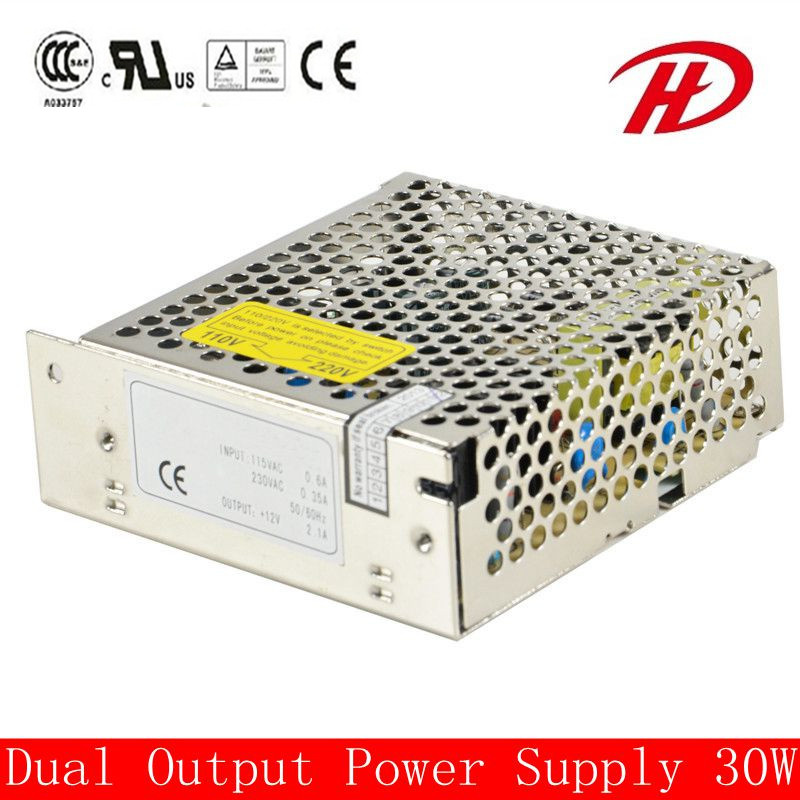

Prod Model: | D-30W |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 129*98*38mm |
Output Type: | Dual |
Output Power: | 1 - 50W |
Input Voltage: | Full Range |
Voltage Regulating Mode: | Frequency Modulation Type |
Connection Mode: | Series Switching Power Supply |
Starting Mode: | Self-excited Switching Power Supply |
Warranty: | 2 Years |
Power Supplying System: | Terminal Power Distribution Equipment |
Certification: | RoHS |
