340va Audio Transformer, Toroid Transformer, Power Transformer, Toroidal Transformer

Name: 340va Audio Transformer, Toroid Transformer, Power Transformer, Toroidal Transformer
Brand: China-Manufacturer-Directory.com
SKU: 703065952
Availability: InStock
Rating: 4.4 (28 reviews)

Supplier:	Shenzhen Sophia Lighting Co., Ltd.
Price:	US $ 28-30/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	TT01556-C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Exciting Current:	30mA
Temperature Rise:	50c
Enamelled Copper Wire:	600V, 180c UL
Lead Wire:	UL3321 AWG10# or 16#
Insultation:	Class B
Application:	Elevator
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Sophia

Product Description

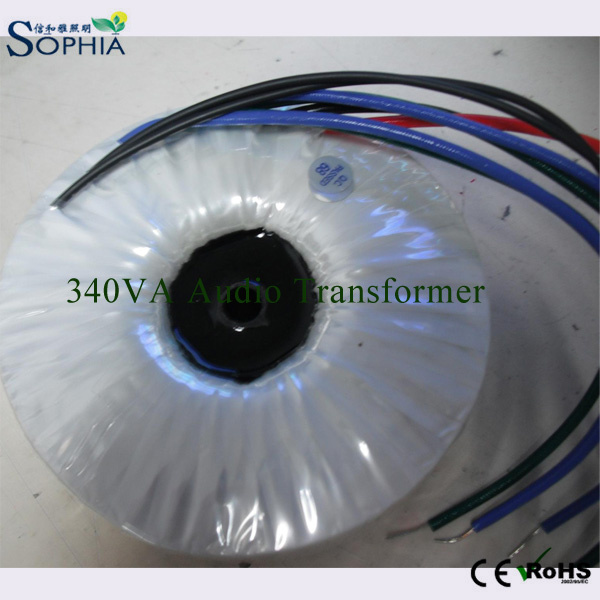

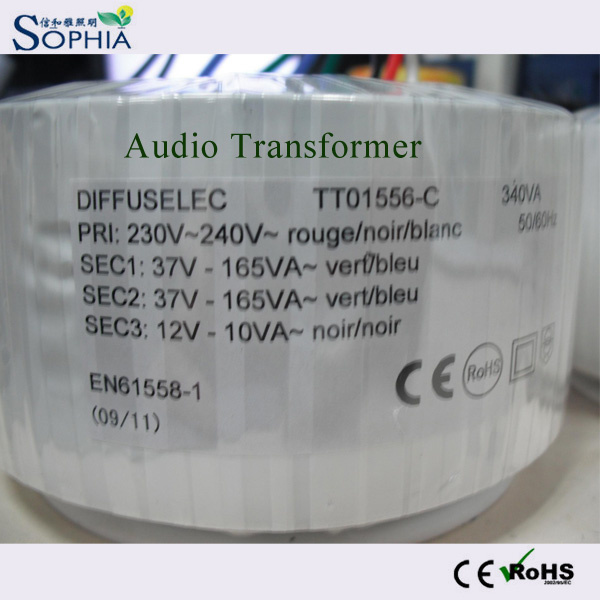

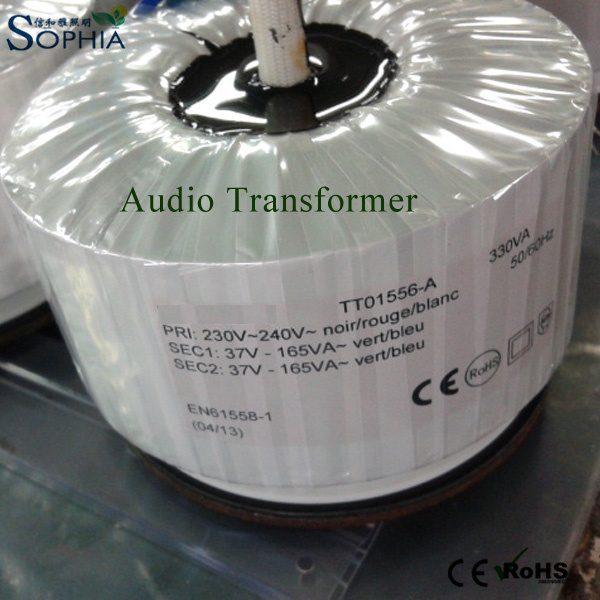

340VA Audio transformer, toroid transformer, power transformer, toroidal transformer, electric transformer, current transformer, isolation transformer,
Insulation: Class B;

Standard: EN61558, CE, All RoHS components;

Input: 0-230V-240V;50/60Hz(BLU-BRN);

No-load: 0-13.05V, 0-40.21V, 0-40.21V,
Output1: 0-12.07V 0.83A;(BLK-BLK);

Output 2,3:2*( 0-37.2V+/-0.2V 4.46A); (BLUE-GRN), (BLU-GRN);

Power: 340VA.

Dimension: OD114mm; H: 68mm(including wire exit);

Thermal switch: 130 degree;
Temperature rise: At ambient temperature 25C, Pri & Sec Winding 65C max after loading for four hours.

No load: 30mA maximum;

Hi-Pot: 4.2kV, 50Hz, 2mA, 60S.

Copper wire: 180 degree;

Lead wire:

Pri: Direct winding wire with fiber tube;

Sec:Direct winding wire with fiber tube, or UL3321 AWG 22#, 600V, 150 degree;

Pri wire 220mm, wire end tinned 10mm;

Sec Wire: 220mm, wire tinned and stripped 10mm;
Epoxy resin;
protection: magnetic shield.

Accessory: 2* rubbers, 1* metal disc, 1 *flat washer, 1*lock washer, 1* screw.

Net weight: 2.7+/-0.3kg.

1.        ENFORCE STANDARD
SAFETY STANDARD:    EN61558-1
2.        ELECTRCAL PERFORMANCE
Primary rated voltage:     0~230 V ~240 V   50/60Hz
Exciting current:   45mA(Primary black-white input 240V/50Hz)
Secondary rated voltage and current:

	UNLOAD VOLTAGE (V±5%)AC	LOADING VOLTAGE (V±5%)AC	RATED CURRENT (A)
S1: 4~5	0~13.05V	0~12.07V	0.83A
S2: 6~7	0~40.21V	0~37.20V	4.46A
S3: 8~9	0~40.21V	0~37.20V	4.46A

4. WORKING AND SAFETY PROTEETION

	Electrostatic Shield	√ Magnetic Shield
	Temperature Protection	Over Current Protection
5.	INSULATION

Insulation resistance test (type test):Pri.~Sec. 500V DC 100 MΩ MIN.
HI-POT TEST (100% test):
Pass our dielectric strength test, without any breakdown Pri.~sec.                AC 4.2kV for5seconds (leakage current 2mA MAX )

6.        TEMPERATURE RISE
Ta=25ºC Test by resistance method    At rated load
Pri.& Sec. WINDING'S TEMPERATURE RISE 100ºCMAX.

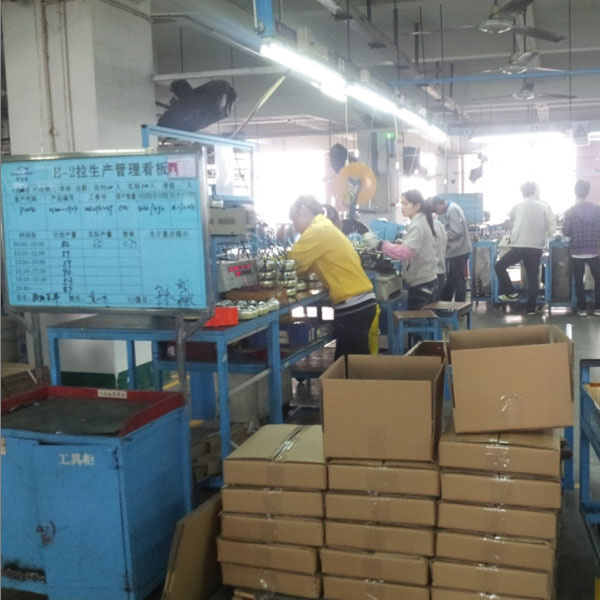

Shenzhen Sophia lighting Co., Ltd was founded in 2009, which specializes in researching, developing, producing and exporting first class LED professional lighting and Transformers. Our products are produced with CE & RoHS compliance which include LED Headlight, LED Emergency light, LED Search light, LED Pool light, LED Explosive proof light, Toroidal transformer, EI transformers and so on.
