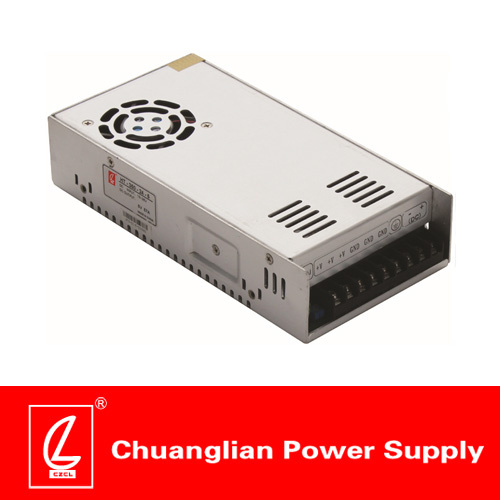

350W Single Output DC-DC Switching Power Supply

Name: 350W Single Output DC-DC Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 768366375
Availability: InStock
Rating: 4.4 (128 reviews)

Supplier:	Changzhou Chuanglian Power Supply Co., Ltd.
Price:	US $ 30.0-31.6/Piece
Min Order:	300/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CL-350
Markets:	Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Size:	227X115X50mm
Output Voltage:	5V,12V, 24V,48V
Output Type:	Single
Warranty:	1 Year
Output Power:	350W
Input Voltage:	18-36VDC,36-72VDC,72-144VDC
Brand:	Czcl

Product Description

Product Model:CL-350

350W Single Output DC-DC Switching Power Supply

Low cost,High reliability
Built-in EMI filter
Low output ripple&noise
2:1 wide input range
Protections: Over load / Short circuit / Over voltage / Over temp.
Forced air cooling by Built-in DC fan
1 year warranty
CASE: 813; Size:227×115×50mm

DC adjustment range----------------±10% rated output voltage
Line regulation(full load)------------≤0.5%
Output over load protection---------105%-150% shut off,re-power on to recover
Output over voltage protection------115%-150% of rated output voltage
Withstand voltage--------------------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,:0.5KVAC,1min
Working temperature---------------- -10~+ 40ºC@ 100%,60ºC@ 60% load
Storage temperature---------------- -20ºC~+85ºC,20%~95%RH(non condensing)
Safety standards----------------------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------------------------Design refer to GB9254,EN55022 class A
Cooling method-----------------------Forced air cooling by Built-in DC fan

Product model	Input	Output	Load regul.	R&N	Efficiency
CL-350-24-5	18~36V	5V,57A	1%	100mV	74%
CL-350-24-12	18~36V	12V,27.5A	0.5%	100mV	80%
CL-350-24-24	18~36V	24V,14.6A	0.5%	150mV	80%
CL-350-24-48	18~36V	48V,7.3A	0.5%	200mV	84%
CL-350-48-5	36~72V	5V,60A	1%	100mV	76%
CL-350-48-12	36~72V	12V,27.5A	0.5%	100mV	81%
CL-350-48-24	36~72V	24V,14.6A	0.5%	150mV	81%
CL-350-48-48	36~72V	48V,7.3A	0.5%	200mV	82%
CL-350-110-5	72~144V	5V,60A	1%	100mV	78%
CL-350-110-12	72~144V	12V,27.5A	0.5%	100mV	83%
CL-350-110-24	72~144V	24V,14.6A	0.5%	150mV	87%
CL-350-110-48	72~144V	48V,7.3A	0.5%	200mV	89%

Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

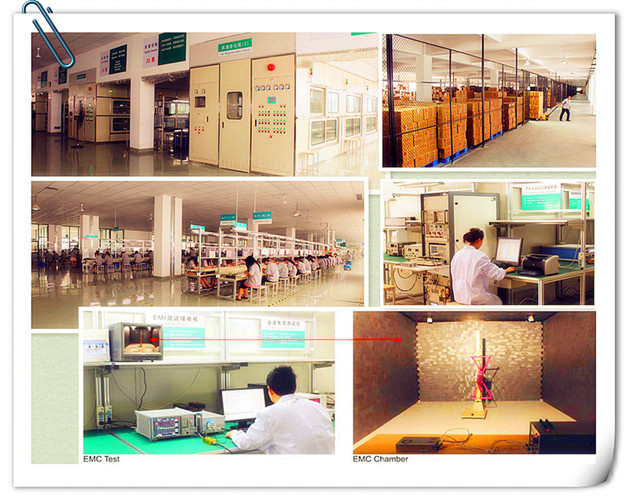

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
