Product Specifications
| Prod Model: |
MGP-PDP35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| We Can Design By Pls & Tower Software: |
as Per Client Design and Data |
| Certification: |
ISO |
| Materials: |
Steel |
| Usage: |
According to Client's Technical Specification |
| Standard: |
According to Client's Technical Specification |
| Style: |
According to Client's Technical Specification |
| Structure: |
According to Client's Technical Specification |
| Conductor Circuit: |
According to Client's Technical Specification |
Product Description

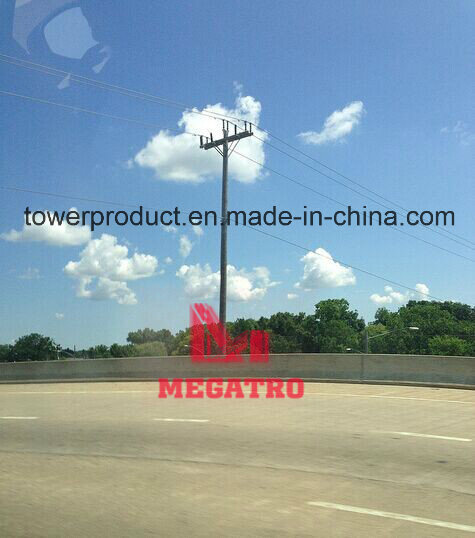

35KV Power distribution pole
MEGATRO provide every type of 35KV power distribution pole for both Chinese and overseas clients, which often used in city power transmission grid, with little space, economic and lower cost. These poles belong to tubular pole, which shall be made of welded tubes, swaged and joined together. They can be manufactured as one large piece, or as several small pieces which fit together. It is uniformly tapered in circular in cross-sections. The sections of the steel poles shall be designed such that the butt end of the top section fits on the top end of the second section, the butt end of the second sections fits on the top end of the third sections and so on. The various sections shall be fitted together by pressed frication joints.
Now MEGATRO can produce distribution pole with some type as follow:
(1) Flange connection
(2) Slip joint
(2) Step type
(3) Stagger type
(4) Others
MEGATRO can optimize design, to set a compact, narrow base, the pole design not only advanced but practical, with an emphasis on economic rationality to ensure safe and reliable operation. Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software. To meet the expectation, we produce shop drawings, components list and full production documentation, and even complete 3D models that facilitate the elimination of all design and drawings errors generated on the drawings. Another advantage is our 3D design and loading & design report, and can optimized the design and save cost for our clients.
MEGATRO is one of the few manufactures who assemble a face of 35KV power distribution pole. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. MEGATRO 35KV power distribution poles systems can accommodate a variety of cross-arm and other accessories. After fabrication 35KV power distribution poles are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. Even we take secondary finish for client again, which as duplex surface treatment.
Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Minimum order: 1 set
Fabrication standard: Chinese Standard or other standard which client accepted
Steel grades
POLE SHAFT: Chinese steel Q35B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which same to ASTM A36
Plates: Chinese steel Q35B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot DIP galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard
If any special requirement, we can design and discuss with client.
Qingdao Megatro Mechanical and Electrical Equipment Co., Ltd.Is a Structure Steel, Power Transmission line steel tower, Telecom tower, related power materials, wind turbine, wind tower, power flange, forged products, casting, power fitting, conductor fabrication& export& import company.MEGATRO headquarter are located in Qingdao city, Shandong province, and plants located in Qingdao city of Shandong Province.
MEGATRO fabrication plants are equipped with state of the art equipments and machineries manned by skilled and talented staff.MEGATRO adheres to the principles of "We provide goods every time, and we offer you good all the time!", "Good Quality Management" and committed to "Heath, Safety and Environment" standard.These values had made our plants certified ISO 9001:2008;ISO 14001:2004 and OHSAS18000:2007 company.
To meet our clients requirements, we also design every type of steel towers & poles as per American Society of Mechanical Engineers(ASME), American National Standards Institute(ANSI) and clients standard.Major design engineers come from America, India, and Egypt in meeting the quality requirements for standard of power transmission steel tower, telecom tower and standard fro steel building structures.
MEGATRO capabilities combined with the diversified and rich experience of our design engineers distinguish it as a professional manufacturer & trader in the power transmission line steel tower, telecom tower, wind turbine, wind tower, power flange, and structural steel.We are delighted to be a one-stop steel structure solutions with power material and related products provider and aspire to build on these relationships with our clients promising them a future as solid as steel.
Licensed Products:
Design, fabrication, supply and Erection of Steel structures, Telecom Towers, Overhead Electrical Transmission Lind Towers, Power Substation, Power Materials, Galvanizing;Provide Wind Power Flange, distribution pole, high mast pole, power fitting &hardware, steel pipe, forged product, Wind Turbine, Lam post, forged products, power fittging, conductor, and related products as per client requirements;Import and Export Steel ore
Object:
We don't make a lot of products you know.
We only make a lot of products you know better.
Mission:COMMITMENT TO EXCELLENT!
Vision:
We are committed to a philosophy of integrity and quality in everything we do.
We support customer focus, continuous improvement and pursuit of excellence in our products, service and people.
We will strive to have a completely satisfied customer at the end of each transaction.
