Product Specifications
| Prod Model: |
MGP-TDP07 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| We Can Design It By Pls Or Tower Softwar: |
as Per Client Requirements |
Product Description

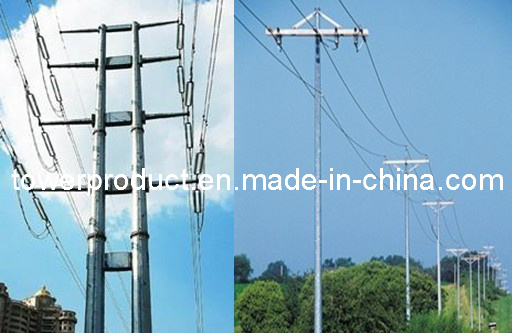

Power transmission and distribution pole
Electricity distribution is the final stage in the delivery of electricity to end users. A distribution system's network carries electricity from the transmission system and delivers it to consumers. Typically, the network would include medium-voltage (1kV to 72.5kV) power lines, substations and pole-mounted transformer, low-voltage (less than 1 kV) distribution wiring and sometimes meters.
In generally, distribution pole often use power voltage less 230KV, MEGATRO had provided too many distribution pole to overseas client, i. E for African client we often design 132KV or below voltage power transmission project; For Asian client, we provide 110KV or below distribution line pole.
MEGATRO is equipped with sophisticated machinery and equipment for the manufacture of Power transmission and distribution pole, we have skilled worker with certificated welders, and offers a variety of Power transmission and distribution pole types to meet client specific. Tapered steel and flanged steel poles feature designs that blend well into the environment and require minimum space for installation. Flanged steel poles are easy to handle and install. Slip type with precision fitted connections allow quick assembly of sections and total poles seems uniform and harmony with environment, especially accept by our foreign clients. Pole sections are available with identical base flange plates, allowing for simplified modifications of mounting heights.
In material we often adopt mild steel (ASTM A36, Q235B), high strength and lower alloy (ASTM A572 GR50, GR65, Q345B, Q345C, Q420, Q460, S355J0, S355JR and equivalent materials). MEGATRO can optimize design and adjust steel utility pole size to make it less weight, solid strength and economic cost. For tower surface, we adopt hot-dipped galvanization, or zinc coating on towers and components to meet ASTM-A123 standards or client accept standard...
Other information
Availability size: Based on the customer's requirements
Material: Chinese material or as per clients requirement
Fabrication: Based on the customer's drawings and technical requirements
Delivery Time: One month or based on the customer's needs
Standard and international standard which client can accept:
1. GB/T2694-2003 Transmission line tower - - Technical requirements for manufacturing
2. JGJ81-2002: Technical specification for welding for steel structure of building
3. GB9787-88: Measuring and allowable tolerance for hot-rolled equal angle
4. GB709-88: Measuring and allowable tolerance for hot-rolled plate and strip
5. GB/T699-1999: Quality Carbon Structural Steel
6. GB/T1591-1994: Low alloy high strength structural Steel
7. GB700-88: Carbon Structural Steel
8. GB222-84: Method of sampling steel for determination of chemical composition and permissible variations
9. GB/T228-2002: Method for Tensile testing of metals
10 GB/T232-1999: Method for Bending test of metals
11 GB/T5117-1995: Carbon Welding Rod
12 GB/T5118-1995: Low Alloy Welding Rod
13 GB/T8110-1995: Welding wires for gas shielding arc welding of carbon and low alloy steels
14 GB/T10045-2001: Carbon steel flux cored electrodes for arc welding
15 JB/T7949-1999: Weld outer dimensions for steel construction
16 GB50205-2001: Test Standard for Acceptance of Steel Structure
17 GB/T470-1997: Zinc Ingot
18 GB3098.1-2000: Mechanical properties of fasteners-Part 1: Bolts, screws and studs
19 GB3098.2-2000: Mechanical properties of fasteners-Part2: Nuts, and thread
20 GB3098.3-2000: Mechanical properties of fasteners-Part3: Fastening screw
21 GB/T5780-2000: Helical Bolts Grade C
22 GB/T41-2000: Helical Nuts Grade C
23 GB/T90-2002: Flat Washer Grade C
24 GB/T13912-2002: Metal Coating, Technical Requirement
Qingdao Megatro Mechanical and Electrical Equipment Co., Ltd.Is a Structure Steel, Power Transmission line steel tower, Telecom tower, related power materials, wind turbine, wind tower, power flange, forged products, casting, power fitting, conductor fabrication& export& import company.MEGATRO headquarter are located in Qingdao city, Shandong province, and plants located in Qingdao city of Shandong Province.
MEGATRO fabrication plants are equipped with state of the art equipments and machineries manned by skilled and talented staff.MEGATRO adheres to the principles of "We provide goods every time, and we offer you good all the time!", "Good Quality Management" and committed to "Heath, Safety and Environment" standard.These values had made our plants certified ISO 9001:2008;ISO 14001:2004 and OHSAS18000:2007 company.
To meet our clients requirements, we also design every type of steel towers & poles as per American Society of Mechanical Engineers(ASME), American National Standards Institute(ANSI) and clients standard.Major design engineers come from America, India, and Egypt in meeting the quality requirements for standard of power transmission steel tower, telecom tower and standard fro steel building structures.
MEGATRO capabilities combined with the diversified and rich experience of our design engineers distinguish it as a professional manufacturer & trader in the power transmission line steel tower, telecom tower, wind turbine, wind tower, power flange, and structural steel.We are delighted to be a one-stop steel structure solutions with power material and related products provider and aspire to build on these relationships with our clients promising them a future as solid as steel.
