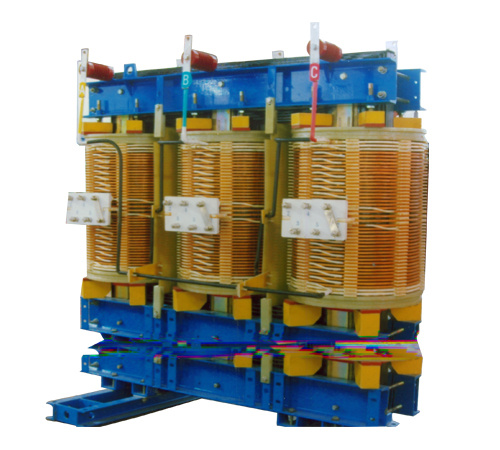

35kv SC (B) 10series H-Grade Insulating Dry-Type Power Transformer

Name: 35kv SC (B) 10series H-Grade Insulating Dry-Type Power Transformer
Brand: china-manufacturer-directory.com
SKU: 709722695
Availability: InStock
Rating: 4.4 (77 reviews)

Supplier:	Yueqing Champn Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Application:	Power

Product Description

SG(B)10 type product can be decomposed and recycled. Expoxy resin cast transformer is made of dry resin and glass fiber which can not be decomposed after its useful period and pollutes the enviroment. However, the product is made to meet the need of market and solve the problem.

Transformers Technical Data:
1. Rated capacity: 30~2500kVA
2. Rated HV: 3~15KV
3. High short-circuit resistant ability
Low loss
Low partial discharge
Low noise
High mechanical strength
Easy installation
Maintenance free
4. Product Standard: GB6450-1986, GB/T10228T1997, GB/T17211-1998
GB1094.3-2003, GB4208-1993, GB/T10008-1999, JB/T56009-1998
5. The altitude of installation could not be over 1000m; Environment temperature should be less than 40
6. Flame-proof; Explosion-proof; No polluting surroundings

Model	Voltage combination			Connection Symbol	No-load loss (W)	On-load loss(w) 154	On-load loss(w) 75	No-load Current %	Shirt-circuit Impedance %
Model	HV (kv)	Tapping range	LV (kv)	Connection Symbol	No-load loss (W)	On-load loss(w) 154	On-load loss(w) 75	No-load Current %	Shirt-circuit Impedance %
SG10-100/10	3 5.5 6 6.3 6.6 10 10.5 11 15	± 5% ± 2X2.5%	0.4	Yyn0 Dyn11	400	1880	1530	0.8	4
SG10-160/10					540	255	2080	0.8
SG10-200/10					620	3100	2530	0.8
SG10-250/10					720	3600	2940	0.7
SG10-315/10					880	4600	3750	0.7
SG10-400/10					970	5400	4400	0.6
SG10-500/10					1160	6600	5380	0.6
SG10-630/10					1290	7900	6440	0.6	6
SG10-800/10					1520	9500	7750	0.5
SG10-1000/10					1760	11400	9300	0.5
SG10-1250/10					2080	12500	10190	0.5
SG10-1600/10					2440	13900	11340	0.5
SG10-2000/10					3320	17500	14270	0.4
SG10-2500/10					4000	30300	16550	0.4
Note: we can design and manufacture special transformer as customers' requirements. Ordering Instruction: 1. product model; 2. rated capacity; 3. voltage range; 4. regulation range; 5. frequency; 6. connection symbol; 7. technical requirements for special transformer.
