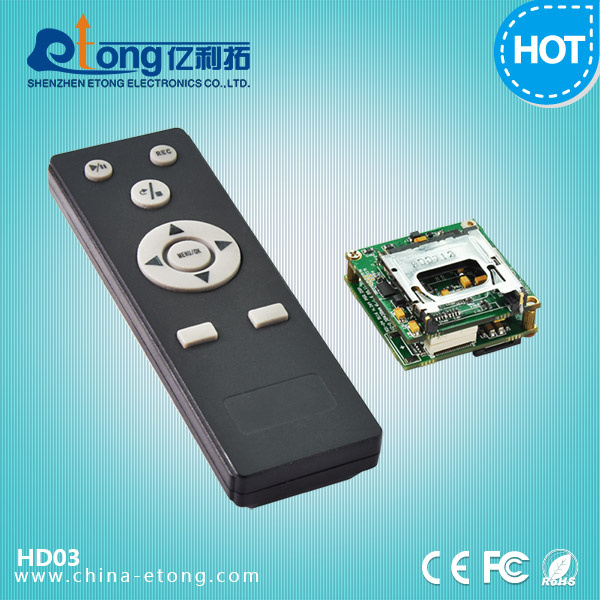

Product Specifications
| Prod Model: |
HD03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Compression: |
H.264 High Profile |
| Pre-Record: |
Support |
| Motion Activation: |
Support |
| Feature: |
Mini Size |
| Type: |
Mini DVR Board |
| Sensor: |
CMOS/CCD Optional |
| Style: |
DVR Board with SD Slot |
| Technology: |
DIY |
| Kind: |
Customized |
| Horizontal Resolution: |
Customized |
Product Description
Features:
>D1 Pre-Record: Motion activated DVR's take 2-3 seconds to start recording after motion is detected. If a subject is walking past the camera view quickly, they will likely be missed entirely. Pre-Record eliminates that possibility by adding 6 seconds of pre video to each motion activated event file before motion is triggered.
>Video recording resolution 30fps 720x240
>Recording quality 4 levels - adjustable (Super, High, Normal, Standard)
>150 user selectable motion grids
>Use up to a 32GB SD card not included
>Embedded video time and date stamp
>H. 264 video compression fits more video into each file without losing quality.
>3 recording modes: Continuous, motion, schedule
>PC Compatible: Windows XP, Vista 32bit, Windows 7 32 and 64 bit.
Video |
Video compression |
H.264 high profile |
|
Signal system |
NTSC/Pal selectable |
|
Video input |
1CH (analog) |
|
Video output |
1CH (analog) |
|
Frame rate |
30fps NTSC, 25fps Pal |
|
Video Resolution |
704x480, 352x240 (NTSC) / 704x560, 352x280 (PAL) |
|
Video File Format |
.AVI |
|
Video Quality Selectable |
High, Medium, Low |
|
Audio |
Audio Input |
1 CH |
|
Audio Output |
1 CH |
|
Audio Backup |
Yes |
|
Audio Compression |
G.726 /32 kbps |
Recording &
Playback |
Recording mode |
Manual, Schedule, Event (motion detection) |
|
Storage |
Record to local SD (up to 32GB, not included) |
|
Playback |
Playback via SD reader or via monitor |
|
Playback Speed |
Fast forward/backward 2X/4X/8X/16X/32X play/pause |
|
Search Mode |
Time, Event |
|
Alarm |
Motion detection |
22 X 15 (sensitivity 0 ~ 9) |
|
Input |
1 (NO/NC programmable) |
|
Output |
1 Relay |
|
Action |
Recording, Relay Output |
|
Pre-Alarm |
1~5 seconds |
|
Post-Alarm |
5~60 seconds |
|
Triggered Mode |
Motion Detection, Video Loss, Sensor Input |
|
Others |
Dimensions |
38mmx38mm |
|
Operating Environment |
30 ~ 80% RH, -10°~50°C (14°F~113°F) |
|
Power Consumption |
Max. 2.5W |
|
Power |
12V 2A |
