Product Specifications
| Prod Model: |
SK-1350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

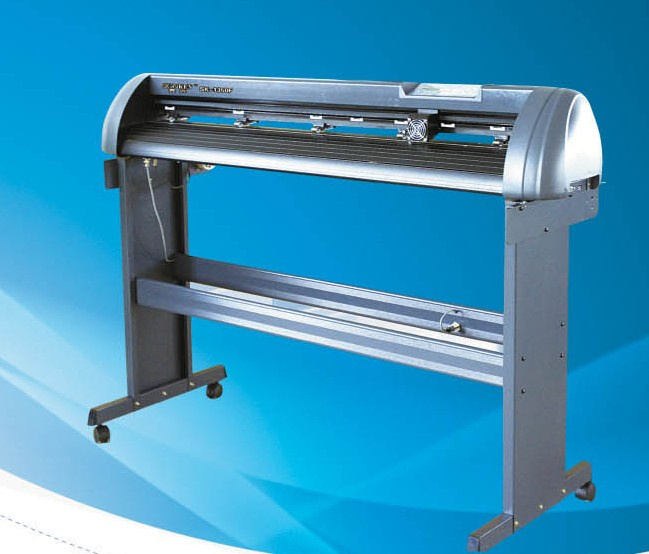

Currently, 3M and Avery Dennison Diamond and imported super reflective films are more and more widely used. Common cutting plotter could not cut thoroughly or there is transformation when processing hard materials, for they are made according to the theory of micro prism and have highly flexible and sticky back-adhesive, which waste manpower and materials. We designed this super reflective film cutting machines to solve above problems. We spent 1 year trying our best to make it better and doing many cutting businesses for our customers and now it has replaced manual operating and realized automation.
Standard Features:
1. Streamline design, brief and natural.
2. More specilized integrated circuit, faster speed, less noise, stronger anti-jamming ability, continuous speed of curves and straight lines, moother curves, higher precision, more remarkable performance and stabilization.
3. The intelligent auto paper detecting function halt working when paper is over, which saves for customer. The intelligent radiation design guarantees the machine works well.
4. Cut material of at least 16cm wide.
5. Automatic paper feeding system satisfies the long time cutting of entire volume and overweight materials.
6. Great carver pressure meets needs of cutting all ranks of 3M diamond reflective film available in current markets.
7. Standard language and strong software compatibility support professional software like artcut, cutting master, flexisign and etc.
|
Model |
SK-1325F |
|
Max. paper feeding width |
1350mm |
|
Max. cutting width |
1250mm*infinite |
|
Speed |
800mm/s |
|
Knife pressure |
25-500g |
|
Memory |
512k,possible to be enlarge to 1M |
|
Mechanical resolution |
0.0254mm/step |
|
Repeating precision |
0.127mm |
|
Interface |
RS-232USB |
|
Language format |
DM/PL/HPGL |
|
Power Supply |
AC160V-AC240V 50-60HZ |
|
Driving System |
Stepper |
|
Working environmental Temperature |
-10-35 centigrade |
|
Working environmental humidity |
5%-95% no coagulate water |
