Product Specifications
| Prod Model: |
SK-720 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Feeding Width: |
720mm |
| Max. Cutting Width: |
630mm |
| Max Cutting Speed: |
Whole Cutting: 1000mm/S, Y Axis Max Cutting: 2020m |
| Knife Pressure: |
10~800g |
| Memory: |
512k, Possible to Be Enlarge to 8m |
| Interface: |
USB, or Flash Driver |
Product Description

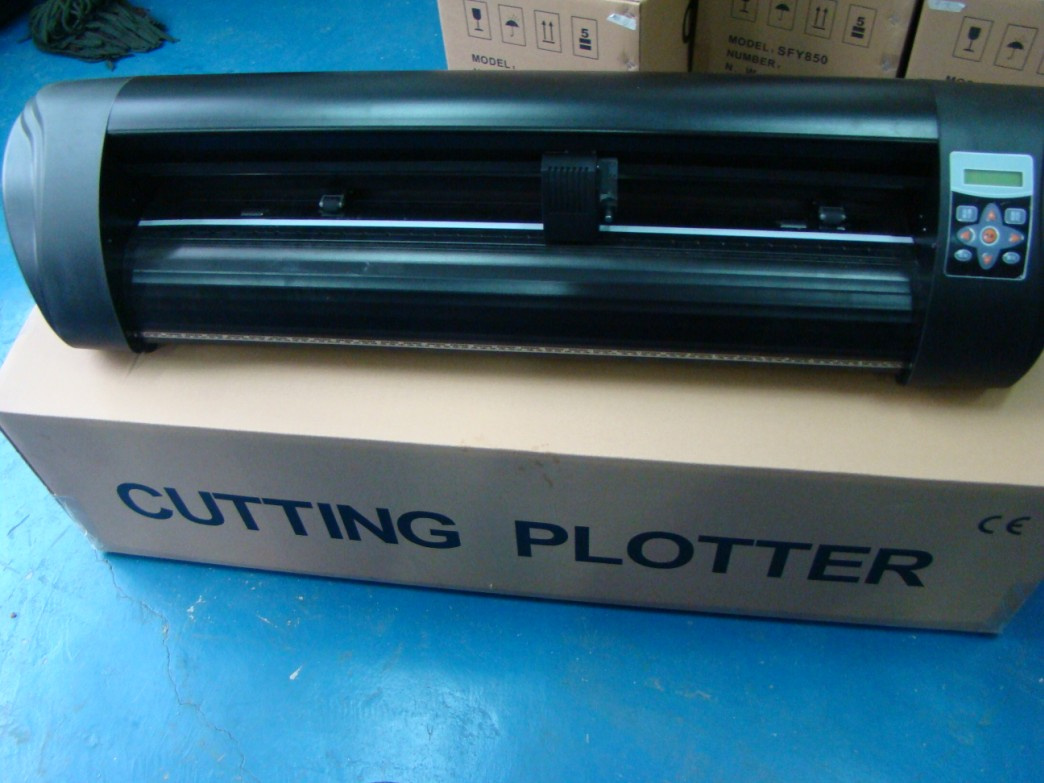

Signkey cutting plotter can be used to:
Signs for shop windows, cars and vans. Cutting material for heat pressing logos and slogans onto T-Shirts. In house signs and graphic designs making of arts, crafts and labels, suitable Vinyl Sign or T-Shirt business or maybe die cutting.
I. Top & Amazing Function Detail:
1) Japan imported new mirco-control technology, DSP controller, Japan high-precision steel axes & 64 sub-divide motor, just with 48dp low working-noise.
2) Up to1000mm (39") per second cutting speed, especially for Y axis 2020mm (46") per second media-sending max speed.
3) Up to 0.0191mm/step (0.00073") mechanical resolution ( DSP), 0.127MM (0.00049") repeating resolution ensure high precision output.
4) Up to 800 gram cutting force making sure any media cutting.
5) Up to max 0.8mm (0.0315") thickness media cutting.
6) Guaranteed 10 meter tracking with high precision.
7) Newest data transmission interface: USB or U Flash.
8) Support Adobe Illustrator, Core DRAW and Flexi Sign output directly, easily and stably.
9) Infrared Position, provide semi self-auto detect precision positioning contour cutting.
II. What is include?
1) Brand New Cutter Plotter version.
2) ARTCUT (English version) + 1pc Driver CD
3) One Blade Holder and 1 boxes Roland Cutting Blades
4) Plotter Pen and Pen Holder
5) Vinyl Roll Holder with Rollers to feed vinyl for cutting
6) Serial Cable and Power Cord
7) Step by step User manual for the cutting plotter and software
8) Power Lead; Fuse; Parallel, Serial and USB Cable; Stand (Free); Dust Cover driver CD( Included USB driver and a special Windows driver and USB Driver that allows operator output directly from vector-based design software as a printer, eg Coreldraw. )
|
Item |
SFY720 |
SFY850 |
SFY1100 |
SFY1350 |
|
Max. feeding width |
720mm |
850mm |
1100mm |
1350mm |
|
Max. cutting width |
630mm |
750mm |
1000mm |
1250mm |
|
Max cutting Speed |
Whole cutting: 1000mm/s, Y axis max cutting: 2020mm/s |
|
Knife pressure |
10~800g |
|
Memory |
512k, Possible to be enlarge to 8M |
|
Mechanical resolution |
0.0191mm/step (0.00073' ' ) |
|
Repeating precision |
0.127mm (0.00049' ' ) |
|
Interface |
USB, or flash driver |
|
Language format |
DM/PL/HPGL |
|
Power supply |
AC160V~240V 50~60HZ |
|
Driving system |
DSP 64 Sub-divide High precision motor |
|
Working Environment Temperature |
0~35 centigrade |
|
Working Humidity |
5%~95% no coagulate water |
|
LED |
The LED display with backside Chinese & English |
|
Infrared Positioning |
Red dot sensor for contour cutting (optional function) |
|
Packing Size |
1120*386*330mm |
1250*386*330mm |
1550*386*330mm |
1750*386*330mm |
|
G. W |
26KG |
29KG |
32KG |
36KG |
|
Packing Content |
1 x Brand New Cutter Plotter |
|
1 x Artcut (New English Version)+ 1 x Driver CD |
|
1 x Power Lead |
|
1 x Pen Refill |
|
3 x Knife Blades (2pcs 45 degree, 1pc 30 degree) |
|
1 x Drawing Pen |
|
1 x Fuse |
|
1 x USB Cable |
|
1 x Blade Holder |
|
1 x English Manual |
|
1 X Stand (Free) |
|
1 x Alignment Ruler |
Signright is one of the major factory based companies in producing CNC cutting bed serving Sign, Advertising, Woodworking fields in China, we have been developing, marketing and offering service to dealers, users both in and out of China for over 10 years, to create values for users is the first thing in our mind when we supply product and service, we always believe that strict quality control, doing business honestly and strategically is the only way surviving future. Our lines of product keep increasing with years of continuous efforts, at present there are CNC Router specialized in sign, woodworking and stone machining, Computer Cutting Plotter for either normal Vinyl sticker or Diamond grade 3M film, and CNC Laser.
Signright is run by a group of well organized people with ambition, responsibility, and experiences, most of our engineers and workers come from units of military industry who have over 10 years of related experiences, we are not only good in conventional products but also the diversified machines of made to order, customers are always happy with us. With agents widely spread in dozens of countries, well managed stock with enough spare part, and excellent teamwork by English Spoken stuffs, we have successfully and will continue to supply most valuable and flexible service promptly.
