Product Specifications
| Prod Model: |
W136II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Farm Loader: |
Wheel Loader |
| Weight: |
10000kg |
| Bucket Size: |
1.8m3 |
| Rated Load: |
3200kg |
| Engine: |
Cummins |
| Tyre Size: |
17.5-25 |
| Type: |
Medium-sized Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

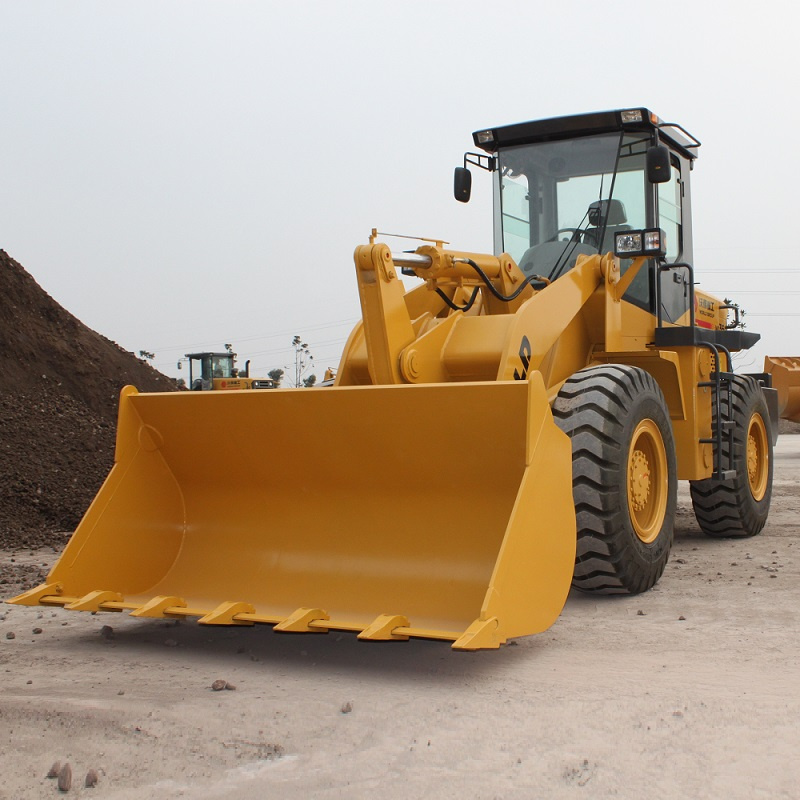

3ton farm using wheel loader with 130hp engine
Features:
1) Power shift planet type gearbox designed for 3 ton loader guarantees more reliable operation
2) Extended distance between hinge joints, with good structural rigidity and large maintenance space
3) Low fuel consumption: 1.67L/hour less compared with similar products
4) Optimized linkage mechanism designed with emulation techniques is of large breakout force.
5) Spacious cabin designed according to ergonomic theory ensures excellent view.
Specifications:
| Basic Data |
|
| Bucket capacity | 1.8 m³ |
| Rated load | 3200 kg |
| Operation weight | 10000 kg |
| Dumping height | 3060 mm |
| Dumping reach | 1008 mm |
| Breakout force | 97 kN |
| Traction force | 100 kN |
| Wheel base | 2750 mm |
| Total hydraulic cycle time | 10.3 s |
| Full bucket lifting time | 5.6 s |
| Min. turning radius | 5376 mm |
| Overall dimension(L×W×H) | 6970×2245×3286 mm |
| Diesel Engine |
| Model | Cummins or Yuchai |
| Type | Direct injection, water cooling, 4 strokes |
| Rated Output | 97/92kW |
| Rated Speed | 2200rpm |
| Max. Torque | 560N.m/460N.m |
|
| Transmission |
| Model: | self made |
| Rated Input Speed: | 2200rpm |
| Transmission Type | 2 forward and 1 reverse gears, power shift, planet type |
|
| Mechanical Gear Ratios |
| Gear I | 2.4346 |
| Gear II | 0.6532 |
| Reverse | 1.7814 |
| Hydraulic Oil Pressure | 1.10-1.40MPa |
| Torque Convertor Inlet Oil Pressure | 0.30-0.45MPa |
| Torque Convertor Outlet Oil Pressure | 0.20-0.30MPa |
| Lubricating Oil Pressure | 0.10-0.20MPa |
| Max.Permissible Temp. | 120ºC |
World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.
We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.
Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.
Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.
Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
