4/8/16 Channel 2u 1080P Standalone Network Video Recorder

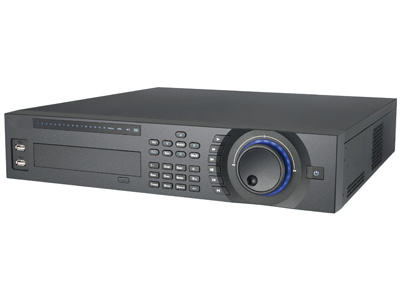

Name: 4/8/16 Channel 2u 1080P Standalone Network Video Recorder
Brand: China-Manufacturer-Directory.com
SKU: 723910705
Availability: InStock
Rating: 4.7 (135 reviews)

Supplier:	Shenzhen Wardmay Technology Co., Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	WDM-NVR8204B/WDM-NVR8208B/WDM-NVR8216B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP Camera Input:	16 Channel@D1, 8 Channel@720p, 4 Channel@1080P IP
Output:	1 HDMI(Video & Audio), 1 VGA
Display Split:	1/4/8/9/16
Resolution:	19201080, 12801024, 1280*720
OSD:	Camera Title, Time, Video Loss, Camera Lock, Recor
Compression:	H.264 / MPEG4
HDD:	1 X HDMI, 1 X VGA Output; 4 X USB2.0; 1 X eSATA; M
Support:	RS485
Warranty:	2 Years
MOQ:	1PC

Product Description

Overview
WDM-NVR8204B:4 channel @D1, 2 channel @720P, 1 channel @1080P IP camera inputs, It can support HDMI, VGA, USB2.0, 8 HDDs and eSATA; It also can support voice intercom function.

WDM-NVR8208B:8 channel @D1, 4 channel @720P, 2 channel @1080P IP camera inputs, It can support HDMI, VGA, USB2.0, 8 HDDs and eSATA; It also can support voice intercom function.

WDM-NVR8216B:16 channel @D1, 8 channel @720P, 4 channel @1080P IP camera inputs, It can support HDMI, VGA, USB2.0, 8 HDDs and eSATA; It also can support voice intercom function.

Key Features:
>4/8/16 channel 2U 1080P standalone Network Video Recorder
>Dual-core CPU presents the powerful preview, recording, playback and network performance
>Up to 4 channel 1080P cameras realtime live view
>H.264/MPEG-4 dual codec decoding
>Up to 16 channel@D1, 8 channel@720P, 4 channel@1080P realtime recording
>All channel simultaneous realtime playback, GRID interface & smart search
>Support Multi-brand network cameras such as: Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY and ONVIF
>Support remote network camera encoding setting & image adjust
>IP Search feature to automatically discover network cameras
>Support 1 x HDMI, 1 x VGA output; 4 x USB2.0; 1 x eSATA; max 8 HDDs; 2U case.
>Built-in web server, CMS(DSS/PSS) & DMSS

Model	WDM-NVR8204B	WDM-NVR8208B	WDM-NVR8216B
System
Main Processor	High performance Dual-core embedded microprocessor
Operating System	Embedded LINUX
System Resources	Pentaplex function: live, recording, playback, backup & remote access
Control Mode	Front panel, USB mouse, IR remote control, Keyboard, Network
Video & Audio
IP Camera Input	4ch@D1 / 2ch@720P / 1ch@1080P	8ch@D1 / 4ch@720P / 2ch@1080P	16ch@D1 / 8ch@720P / 4ch@1080P
IP Camera Supported List	Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY, ONVIF
Video Output	1 HDMI(video & audio), 1 VGA
Voice Intercom	1 channel input, BNC(200-2800mV, 30KΩ), 1 channel output, BNC(200-3000mV, 5KΩ)
Display
Display Split	1/4	1/4/8/9	1/4/8/9/16
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Tour Display	Support
Privacy Masking	4 self-defined four-sided zones for privacy masking for each camera
OSD	Camera title, time, video loss, camera lock, recording
Recording
Compression	H.264 / MPEG4
Recording Resolution	1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Max Recording Speed	100/120fps@D1, 50/60fps@720P , 25/30fps@1080P	200/240fps@D1, 100/120fps@720P , 50/60fps@1080P	400/480fps@D1, 200/240fps@720P , 100/120fps@1080P
Recording Bit Rate	Up to 8Mbps	Up to 16Mbps	Up to 32Mbps
Recording Quality	CBR, VBR(1~6 level, level 6 is the best)
Recording Mode	Manual, Schedule(Regular(Continuous), Camera blank, Video loss), Alarm), Stop
Recording Priority	Manual >Alarm >Regular
Recording Interval	1~120 min (default: 60 min)
Video Detection & Alarm
Trigger Events	Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Video Loss & Camera Blank	Support
Alarm Input	4 channel	8 channel	16 channel
Relay Output	6 channel
Playback & Backup
Playback Channel	1/2/4/All
Search Mode	Time/Date, Alarm, Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	Flash drive/ USB HDD/ USB CD&DVD-RW / eSATA Device / Built-in SATA burner/ Network download
Network
Ethernet	RJ-45 port (10/100M/1000M)
Network Function	HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS etc)
Max Remote Users	20 Users simultaneously
Remote Operation	Monitor, PTZ control, Playback, System setting, File download, Log information
Hard Disk
Hard Disk	8 SATA ports, 8 HDDs or 6 HDDs + 1 CD/DVD-RW, Up to 24TB
eSATA	4 External SATA ports, up to 12TB
Space Occupation	Max 3.6GB/H per channel
HDD Management	HDD Group, HDD hibernation technology, HDD faulty alarm & Raid(Redundancy)
Auxiliary Interface
USB Interface	4 USB2.0 ports, For mouse control & backup
RS232	Dahua keyboard, PC communication
RS485	PTZ control
Environmental
Power Supply	AC 100~240 V, 50/60 Hz
Power Consumption	20W(without HDD)
Working Environment	-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension	2U, 440mm×460mm×89mm(W×D×H)
Weight	6.0KG(without HDD)
