Product Specifications
Prod Model: |
ZK-6090 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Engraving Router |
Controlling Mode: |
CNC |
Feed Mode: |
Mechanical |
Spindle Number: |
Single-Spindle |
Spindle Layout: |
Spindle Over |
Certification: |
CE, ISO, SGS, FDA |
Color: |
Customized |
Product Description

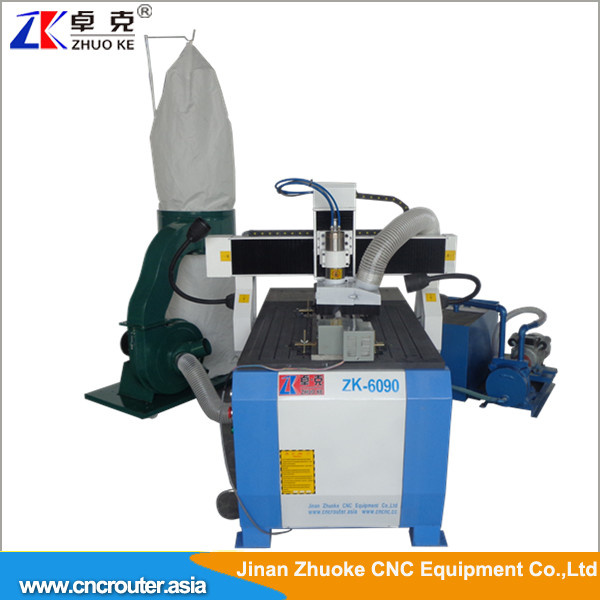

4 axies cnc router machinery price
Machine's feature :
#. 2.2KW China water cooling spindle, more powerful and not easy to break tools.
#. X Y,Z axies Taiwan TBI ball screw,Taiwan Hiwin square guide rail, high precision and high speed.
#. Dust collector,220V 2.2KW ,suck the dust ,keep the machine ,clean and tidy.
#. Vacuum pump.220V 3KW,suck the materials very tight ,no need to fix ,very convenicent and easy operate.
#. Rotary ,dimeter:80mm ,working length 600mm ,processing round materials.
# .Full accessories offer to you ,inner control carbinet,save the space, Leadshine stepper motor and driver ,higher speed ,high precise,long use life.
#. Mach3 control system ,support laotop computer,win7 system.easy operate and control.
#. Artcam 2008 design software,easy operate and learn.
Application :
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table .
2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Parameter:
Items | Parameter |
Spindle power | 2.2KW water cooling spindle ER |
X,Y,Z axies working size | 600*900*150mm |
Spindle speed | 0-24000rpm/min |
Empty travelling speed | 0-25000mm/min |
Cutting speed | 0-8000mm/min |
Engraving speed | 0-10000mm/min |
Machine accuracy | 0.03mm |
Resetting accuracy | 0.05mm |
Diagonal error | 0.5mm |
Resolution ratio | 0.005mm |
Moving method | Gantry moving |
Machine's structure | Cast iron body , cast Aluminum gantry |
Working table | Aircraft aluminium T slot with PVC layer |
Guide rail | Taiwan Hiwin liner squire guide rail |
X,Y,Z axies Transmission | X,Y, Z axies Taiwan TBI ball screw |
|
Driving system | Stepper motor and leadshine driver |
Control system | Mach3 |
(Options: PCI Nc-Studio ,DSP offline) |
Designing software | Artcam 2008 |
Carving Instructions | G code *Uoo *mmg *plt *HPGL |
Voltage | 220V ,50/60Hz,single phase |
Certificate | CE |
Accessories | Water pump(1), tools (15), power line, USB line, fixtures(6), user manual, |
software CDs, |
spanners(2), brush,collets(3), double faced adhesive tapes (2),etc. |
Jinan Zhuoke CNC Equipment Co., Ltd is a modern export-oriented enter-prise of the processional R&D, production, and sales of the CNC equipments, located in Jinan City, Shandong Province, China. We have a technical team which has the actual combat of mechanical design, software R&D, and CNC application. Our brand "Zhuoke" has the certain popularity at the home and aboard.
Our company mainly focuses on manufacturing CNC Routers and Laser Engraving Cutting machine, with high quality and top sales and after sales-service, we have won the customs trust and support from all over the world. Also, our machine can be specially customized according to your requirement.
Our CNC machines are not only sold to the domestic, but also the Southeast Asia, Americas, Oceania, Russia, Africa.
"High quality product and hard working make the brilliant future" We have the continuous technological innovation and the relentless pursuit of quality pragmatic spirit, always put the quality first, and always striving to provide our customers with high quality, cost effective mechatronic products. Our Zhuoke products will always be associated with your caree-----back gammon!
