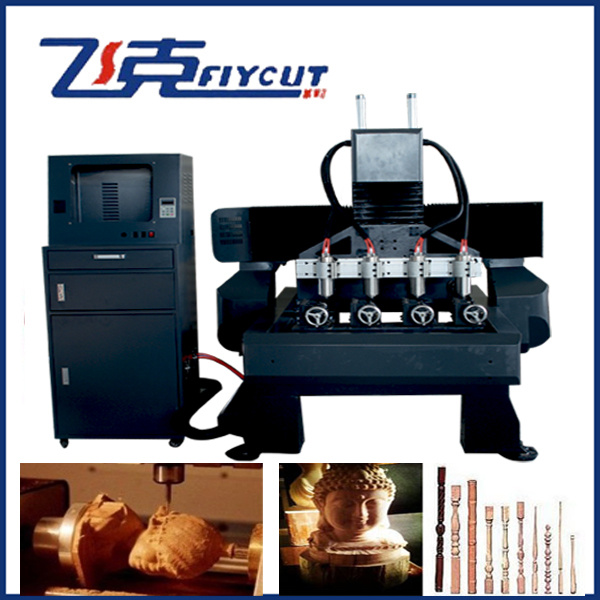

4 Axis CNC Engraving Machine

Product Specifications

Prod Model:	FCT-1625C&W-4S
Markets:	North America,Southeast Asia,Mid East
Flat Working Size:	1600X2500
Rotary Length:	2000mm
Rotart Diameter:	230mm
Spindle Type:	Water Cooling Spindle
Spindle Power:	Water Cooling 2200wx4
Engraving Speed:	8000mm/Min
Control System:	4 Axis Ncstudio
Motor:	Stepper
Transmission:	Taiwan Tbi Ball Screw
Guide Rail:	Taiwan PMI Linear Square Rails
Spindle Layout:	Horizontal
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO
Spindle Number:	Four Spindles

Product Description

Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.

Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.

Technical Parameters:

Model	FCT-2515C&W-8S
Rotary diameter	250mm
Rotary length	1500mm
Flat working size	2150×1500×200mm
Spindle power	Water cooling 2200W×8
Spindle rotate	6000~24000RPM
Tool diameter	3.175,6,12.7mm
Machine structure	Industry square tube structure
Transmission	XYZ ALL WITH TBI ball screw
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	less than 0.03/300mm
Engraveing speed	10000mm/min
Data transmission	by pc connection directly or USB
Support format	G code or HPGL
Working voltage	AV220V/380V 50Hz
Net weight	3500kg
