| Supplier: | Anhui Aikefa CNC Technology Co., Ltd. |
|---|---|
| Price: | US $ 6000set/sets |
| Min Order: | 1set/sets |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

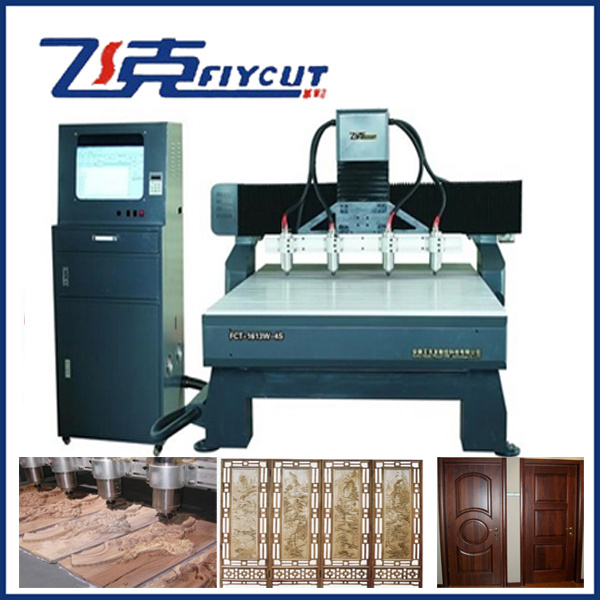

| Prod Model: | FCT-1625W-4S |
|---|---|
| Markets: | North America,Southeast Asia,Mid East |
| Machine Size: | 1600X2625mm |
| Working Size: | 1600X2500X200mm |
| Spindle Power: | Water Cooling 1500wx4 |
| Spindle Speed: | 6000~24000rpm |
| Motor: | Leadshine Hybrid Servo Motor |
| Control System: | Ncstudio |
| Transmission: | Gear Rack |
| Guide Rail: | Taiwan PMI Square Rails |
| Inverter: | Fuling |
| Spindle Layout: | Horizontal |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
| Type: | CNC Wood Relief Machine |
| Spindle Number: | 4 Spindles |
1.Distance between heads can be adjusted according to the working pieces being processed.
2.Equipped with 6 heads spindles, machine can make the works done by several pieces in one time, saving cost and improving the working efficiency.
3.You can also start only one spindle work instead of 6 spindles,it depends on your working and processing needs.
4.Spindle power is optional(0.8/1.5/3/4.5Kw),according to customer's requirements.
5.Rotary attachment is optional, which enable the machine to engrave on column work pieces like table leg and cylinders.
Application:
Contact us now!
Betty(overseas department salesman)
Mobile:+86 187 0986 6712
Http://www.flycut.cn/en/
We are a specialized manufacturer for kinds of cnc machine and co2 laser machine in China.Looking forward to cooperating with cnc machine AGENTS all over the world.We will afford you products with good quality and competive price!
Model | FCT-1625W-4S |
Machine size | 1600x2625mm |
Working size | 1600x2625x200mm |
Spindle power | water cooling 1.5KWX4 |
Spindle rotation | 6000~24000rpm |
Motor driver | Leadshine hybrid servo motor |
TOOL diameter | 3.175, 4, 6mm |
Machine structure | Industry square tube structure |
Transmission | TBI ball screw or high accuracy gear rack |
XYZ rails | PMI square rails |
Dust-proof system | XYZ high quality dust cover |
Mechanical accuracy | less than 0.03mm |
Engraving speed | 8000mm/min |
Data transmission | PC-connection directly or USB |
Support format | G code or HPGL |
Working voltage | AC220V/50Hz or 380V/50Hz |
Net weight | 1300kg |

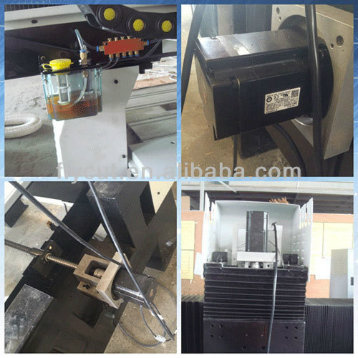

Machine parts show:
Working out sample show:
About after-sale service:
1.One year warranty for the whole machine and maintenance for lifetime.
2.Under normal usage,1 year for the whole machine,lifelong technical support.
Technical Support by 3 ways:
Choose 1.
We will supply the machine with training video and user's manual.When you meet some problems of installation, using or adjusting.We can give you technical guide by e-mail, fax,telephone,skype and so on.(Recommended)
Choose2:
You can come to our factory for training. We will offer professional guide,direct and effective face-to-face training. Here we have a full set of equipments and sorts of tools and testing facility.
Training Time: 3~7 days (Recommended)
Choose3:
Our engineer will do a door-to-door instruction training service at your side,you need to bear round-trip tickets and accommodation.
Training Time: 5~7 days (Not Recommended)
3.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
4.Door to door service, you just need to bear round-trip tickets and accommodation.
5.Free installation,testing,training before shipping.
About package and shipping:
1.Water-proof plastic film package with foam protection in each corner.
2.Make shipment by sea.
Please note, the price is NOT include shippment charge, and it will take around 35 days for shipping.
