4 Axis CNC Woodworking Machinery (VCT-SR1325HD)

Name: 4 Axis CNC Woodworking Machinery (VCT-SR1325HD)
Brand: China-Manufacturer-Directory.com
SKU: 757008455
Availability: InStock
Rating: 4.3 (91 reviews)

Supplier:	Anhui William International Imp. & Exp. Co., Ltd.
Price:	US $ 6000-28000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	VCT-SR1325HD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
X,Y,Z Working Area:	1300X2500X400mm*±90 Degree (4' X8')
Spindle Power:	4.5kw Italy Hsd Spindle
Tool Change Method:	Manually
Inverter:	5.5kw Delta Inverter
Driving Motors:	Xyz 850W Yaskawa Motors
Positioning Accuracy:	±0.03/300mm
Table Surface:	Vacuum and T-Slot Combined (Option: T-Slot Table)
Body Frame:	Big Steel Tube Structure (8mm Thickness Wall)
X, Y Structure:	Rack and Pinion Drive, Hiwin Rail Linear Bearings.
Z Structure:	Original Taiwan Hiwin Rail Linear Bearings and Tbi
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	FDA

Product Description

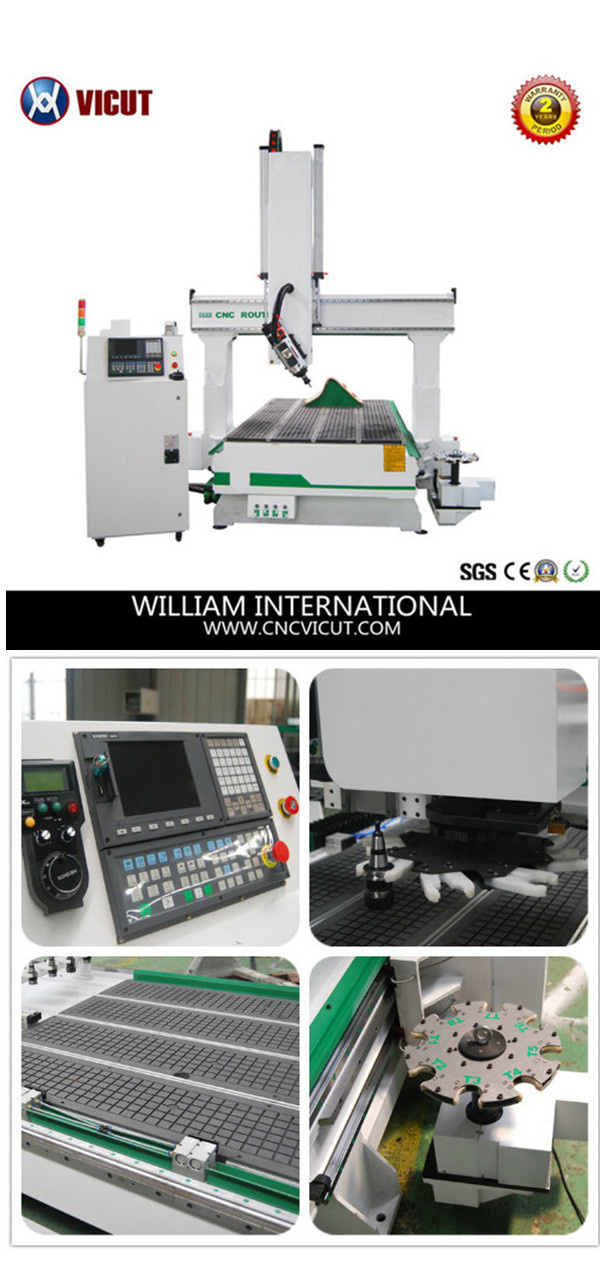

4 AXIS CNC Router

(Spindle Rotate 180 degree/±90 degree)

Model:VCT-SR1325HD

The most outstanding advantage of this CNC machine is that the spindle can rotate 180 degree ,very suitable for siding milling, drilling, lock slot, can process various kinds of curved surface. Carousel Tool Change System of 4 axis CNC Router are with 8 forks, which saves time than the original machine.

MAIN FEATURES

1. The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which we can design with Software.

2. We use top quality components for the machines, like HSD spindle, Syntec EZ-4M control system, Delta Inverter, Yaskawa servo motors, and separate control box, Hiwin linear and so on, to keep the machine in best condition even after many years working.

3. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.

4. Optional:

1)Bigger size like 1500*3000mm, 2000*3000mm, etc.
2) Rotary Device for processing column materials.
3) Dust collector 4) Mist spray cooling system

TECHNICAL PARAMETER

Model	VCT-SR1325HD		VCT-SR1325HD-ATC
X,Y,Z Working Area	1300x2500x400mm*±90 degree (4' x8')		1300x2500x400mm*±90 degree (4' x8')
Spindle Power	4.5KW Italy HSD Spindle		9.0KW Italy HSD ATC Spindle
Tool Change Method	Manually		Auto Tool Changer 8pcs
Inverter	5.5KW Delta Inverter		11KW Delta VFD-B Inverter
Driving Motors	XYZ 850W Yaskawa Motors		XYZ 850W Yaskawa Motors. XY axis use Taiwan reducer compatible with servo motor
Positioning Accuracy	±0.03/300mm
Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
Body Frame	Big Steel Tube Structure (8MM thickness wall)
X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings.
Z Structure	Original Taiwan Hiwin Rail Linear Bearings and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 4.5Kw
Max. Rapid Travel Rate	40000mm/min
Max. Working Speed	30000mm/min
Working Voltage	AC380V/50/60Hz,3PH
Command Language	G Code
Operating System	Syntec Control System(Option: Siemens controller)
Computer Interface	Ethernet
Flash Memory	512M
Collet	ER32
X,Y Resolution	<0.03mm
Software Compatibility		Type3/UcancameV9 software (Option: Artcam software)
Packing Size		3300X2200X2200mm
Weight		N.W: 2000KG / G.W: 2200KG

APPLICATIONS
This series machinery is mainly used in processing wood and other materials, such as making doors, windows, kitchen cabinet, acrylic stand, decoration board, signs, guitar and musical instruments.

CNC Engraving and Cutting Solutions Provider!

WILLIAM INTERNATIONAL is a Chinese manufacturer of CNC router, laser and cutting plotter, having its own manufacturing base and official license for export & import business. We focus on overseas market of CNC machinery and accessories, to provide the customer with an affordable solution without sacrificing options or function.

We are very appreciated for that hundreds of dealers and end users from different countries have been our business partners. Some have cooperated with us for five years more. For these nice people, the relationship between us become more and more closed, from partners in business to real friends in life, even relatives.

Professional Team:

We have a 150 people team. More than 80 percent workers of our factory have over 5 years manufacturing experience in CNC industry. 12 experienced engineers work in R&D department. More than 20 marketing sales have excellent skills both in international trading and product technology. All the service engineers have experience in providing technology service in overseas market. We have been building a professional team, through the strengthening of internal management and external learning.

Reliable Quality:

Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, etc. Construct modern production plant, make specialized division of labor, introduce advanced technology and equipment, and realize scientific process layout and production management.

High Level Service:

We have a service engineering team with years of experience who can provide technical support, remote training and door-to-door service. Help is always just one call or email, then we can communicate\analyze and provide the suitable solution promptly. Also you can submit problems on our official website.

Location & Transportation:

Our factory is located in Hefei, Anhui province, which is the core member of the Yangtze River delta economic zone in China. Three hours by fast train from Shanghai. The Xinqiao International Airport makes our heart more near with only 40 minutes by car.

Expecting our friends to check and test equipments for your specific applications and requirements.
