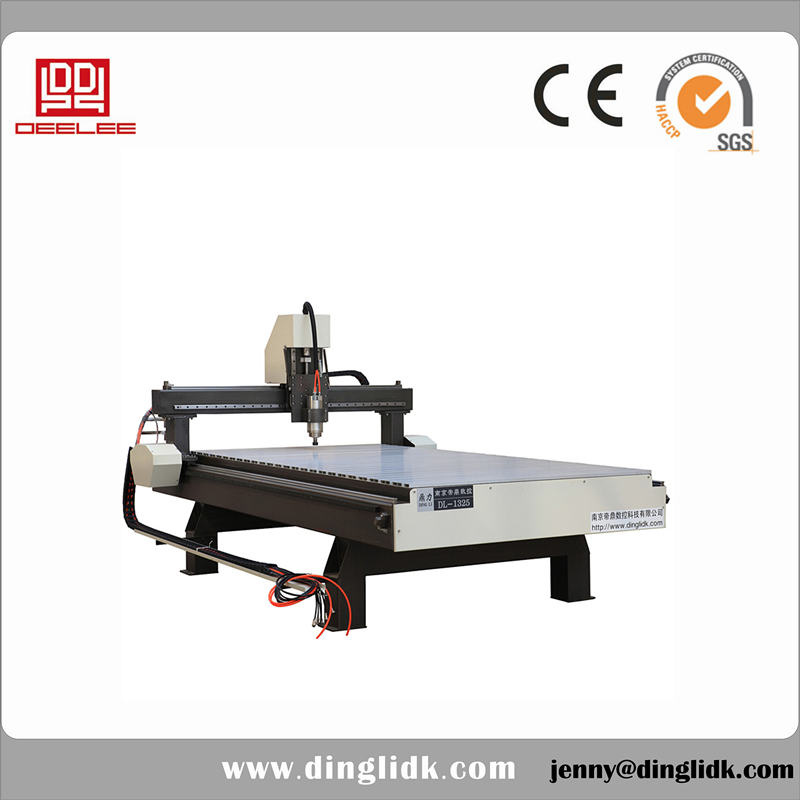

4 axis Woodworking CNC engraving router machinery prices with CE
Product feature
1. The lathe is founded by high-quality steel that ensures the high stability, all the three axises are using imported straight-square rail.
2. Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
3. Using high accurate pinion and rack transmission.
4. The highest speed is 28m/min. It can clearly engrave the 1mm small word.
5. Spindle adopts domestic 3.5KW water-cooling motor, which is very powerful and with little noise. It can work continuely without maintaining.
6. Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
7. Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.
8.15× 15cm, 1cm thickness soldered lathe bed, strong, firmness.
9. Brushless 3 kw water cooled spindle with 24, 000rpm, VFD, high speed.
10. Imported 2.5cm square guide rail with flange sliding block, rack and pinion, stability.
· Vacuum table, fix prcessing materials
· Double engine driving on Y axis, powerful, steady.
· Gear Connection between X axis and Y axis.
· Be compatible with all kinds of software, TYPE3, ARTCAM, CASTMATE, CAD, and CAM etc.
· Auto-feeding blade, restore from power off, continuation on break point.
4 axis Woodworking CNC engraving router machinery prices with CE
Applications:
DEELEE CNC Router DL-1325 with vacuum can be widely used for solid wave board, wood door, aluminum door, wood window, density board, wave board, compound board, kinds of furniture and etc. )
4 axis Woodworking CNC engraving router machinery prices with CE
Optional matters:
1. Drive model: Step motor or servo motor
2. Spindle: Air cooled or water cooled optional
3. Change sigle spindle to multi-spindles
PS: All parts of our machine can be made some changes to meet your requirements, so please contact us freely if you have any further questions.
Model |
4 axis Woodworking CNC engraving router machinery DL-1325 |
Working Zone: (X Y Z) |
1200× 2400× 120mm |
Table Size (W× L) |
1350× 2700mm |
Resolution |
< 0.003mm |
Cutting Accuracy |
± 0.02/300mm |
Repositioning Accuracy |
± 0.01mm |
Axis Drive System (X Y Z) |
Rack gear, Square line guide rail |
Drive Type |
Stepper motor |
Spindle |
3000W liquid-cooled with 24, 000rpm, VFD |
Max. Working speed |
28, 000mm/min |
Collets Type |
3.175mm/ 4mm/ 6mm/8mm |
Command Code |
G*. u00*. mmg*nc., HPGL |
Operational System Software |
Type 3/Artcam/Castmate/Wentai |
Control System |
NC studio |
Interface |
PCI/USB |
Max. Power Consumption |
3.2KW |
Voltage |
AC220V± 10%/50~60Hz |
Standard Work Surface |
Aluminum profiles |
Weight |
680kg± 10% |
Warranty |
12 Months (spindle: 6 months) |
