Product Specifications
| Prod Model: |
DL-1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area( X Y Z): |
1300×2500×200mm |
| Axis Drive System (X Y Z): |
Ball Screw Rod |
| Driving Motor: |
Lead Shine Hybrid Servo Motor |
| Software: |
Type 3/Artcam/Artcut |
| Working Table: |
Vacuum Table |
| Vacuum Pump: |
5.5kw Air Vacuum Pump |
| Warranty: |
12 Months |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Vertical |
| Certification: |
CE |
Product Description
Product features
1. Lathe bed is 15× 20cm, 9mm thickness soldered lathe bed, strong, firmness.
2. Imported 25mm square guide rail with flange sliding block, double ball screw rod on Y axis. Stability, high precision, long service life.
3. Double engine driving on Y axis ( Lead shine Hybrid servo motor), powerful, steady.
4. Vacuum working table, with 5.5kw air pump, strong absorption to fix materials on the table.
5. Be compatible with all kinds of software, TYPE3, ARTCAM, CASTMATE, CAD, and CAM etc.
6. DSP control system, it can be operated offline without computer, more convenient.

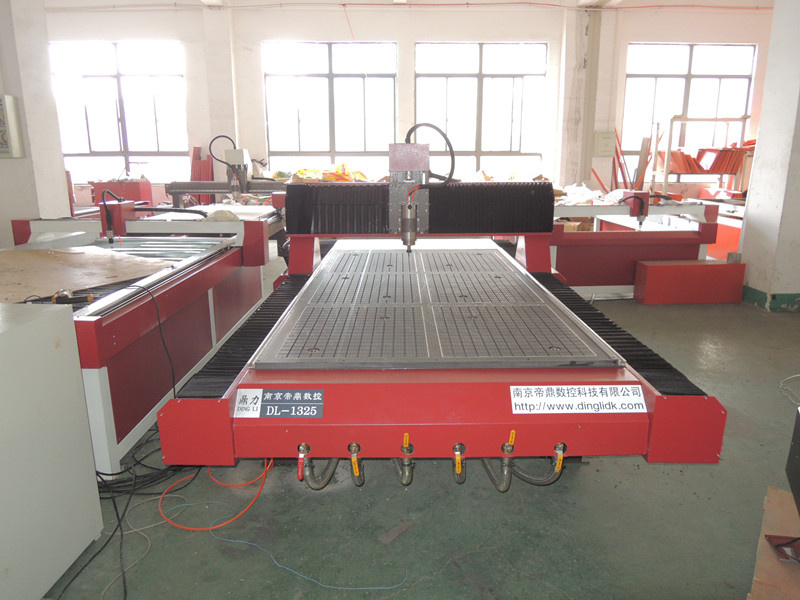

Double Ball Screw rod CNC Router DL-1325 can be widely used for solid wave board, wood door, aluminum door, wood window, density board, wave board, compound board, kinds of furniture and etc.
|
Model |
DL-1325 |
|
Working Zone: (X Y Z) |
1300×2500×200mm |
|
Table Size (W×L) |
1350×2700mm |
|
Resolution |
<0.003mm |
|
Cutting Accuracy |
± 0.02/300mm |
|
Repositioning Accuracy |
±0.01mm |
|
Axis Drive System (X Y Z) |
Ball screw rod |
|
Drive Type |
Lead shine Hybrid Servo motor |
|
Spindle |
3 KW water cooled spindle |
|
Max. Working speed |
15,000mm/min |
|
Collets Type |
3.175mm/6mm |
|
Command Code |
G*.u00*.mmg*nc.,HPGL |
|
Operational System Software |
Type 3/Artcam |
|
Control System |
DSP |
|
Interface |
USB |
|
Max. Power Consumption |
3.2KW |
|
Voltage |
AC220V±10%/50~60Hz |
|
Vacuum pump |
5.5kw air pump |
|
Weight |
1000kg±10% |
|
Warranty |
12 Months |
Nanjing Diding Numerical Control Technology Co., Ltd. is a professional manufacturer and exporter of CNC router machine &laser machine and other relevant equipment. The products have been widely used on advertisement gifts, crafts and mould, architecture, seal, label, woodcutting and engraving, stonework, leather cutting etc. DINGLI is the trade mark of the products including CNC Router, Cutting machine, Laser engraver and Woodworker, Laser engraving machine and so on.
The company was founded in 2001, after several years' development, we have more than 200 workers in our workshop including professional and seasoned managers. Our monthly capacity is more than 300 set. All the products had been tested and got the CE certificate. On the basis of absorbing the international advanced CNC technology, we provide the clients the most advanced production and perfect after-sale service. In recently years, our products have been sold not only all over China, but also as far as Southeast Asia, Middle East, Europe, South America and other overseas markets.
Our notion is simple harmonious human relations, fidelity conduct criterion being thankful. Compete for aggressive life attitude, the team spirit making concerted efforts. Our creed is to be innovative, to be believably, to be surefooted, and to be confident.
Credit the first, service the supremacy. Diding Technology would like to cooperate with the customers both at home and abroad to achieve further success with our ceaseless effort.
