4 Color Flexographic Printig Machine

Name: 4 Color Flexographic Printig Machine
Brand: china-manufacturer-directory.com
SKU: 736410555
Availability: InStock
Rating: 4.9 (37 reviews)

Supplier:	Ruian Aoxiang Packaging Machinery Co., Ltd.
Price:	US $ 10000-12000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	YT-4800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Application:	PE Film,Paper etc
Voltage:	380 or Change
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Warranty:	1 Year
Machine Color:	as Request
Printing Width:	800mm
Printing Length:	180-1200mm
Total Power:	12.5kw
Plate Thickness:	2.38mm
Color & Page:	Multi-Colour Printing Press
Plate:	Relief Printing
Embossing Structure:	Platen Press
Type:	Ink Jet
System Supported:	Windows2000

Product Description

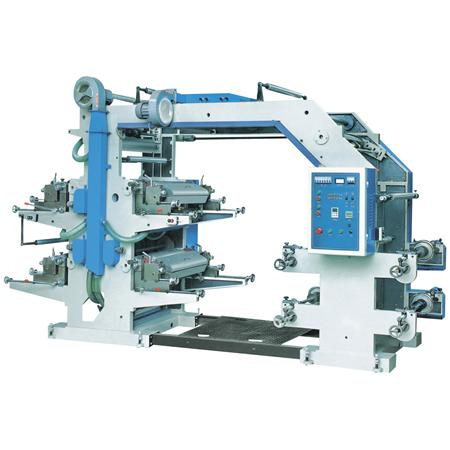

YT series flexographic printing machine

Use:
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
1. Easy operation, flexible starting, accurate colour register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

.

Main Technical Variables:
Model of Machine	YT-4600	YT-4800	YT-41000
Max. Width of PrintingMaterial	600mm	800mm	1000mm
Max. Printing Width	560mm	760mm	960mm
Length Range of Printed Product(mm)	180-1200mm	180-1200mm	180-1200mm
Max. Diameter of Roll Material	Φ 450mm	Φ 450mm	Φ 450mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Thickness of plate(Including Two-sided Glue Paper)	2.38mm	2.38mm	2.38mm
Total Power	10.87kw	12.5kw	14.37kw
Weight of Machine	2200kg	2500kg	3000kg
Overall(mm)Dimensions	480016002400	480018002400	480020002400

Our company located in Rui'an, Zhejiang, where is at the shore of East Sea with beautiful scenery, Ruian Aoxiang Packing Machine Co., Ltd. With a long historical story is a professional manufacturer specialized in producing various packing machines based on advanced technologies. With the help of advanced technology, practical enterprise spirit and full quality management, our company is well known in the whole packing machine market due to our completed equipment and well-deserved reputation.

Our main products cover wrapping film machine, inflation film manufacturing machine, bag machine, printing machine, bubble wrap machine, multifunction coating machine, and completed plastic packing machine.

Our products have been sold to worldwide countries and areas, and enjoy good reputations in the Southeast Asia, the Middle East, Central Asia, Russia, Africa and other countries.

Since our establishment, based on "Credit by Quality, Brand by Credit and Market by Brand" and the tenet of "Competitive Product by Technology, Market Guidance by Service", our company would like to provide our customers with reliable and excellent products through technical innovation and customer satisfaction. We also try our best to make contribution for entire society through high quality and perfect service.

We have rich experience in manufacturing and exporting high packing machines. We have achieved good performance during the past years, sincerely welcome businessmen overseas to establish a long-term cooperation to create beautiful future!
