Product Specifications
| Prod Model: |
YT-2800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Application: |
PE Film,Paper etc |
| Voltage: |
380 or Change |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty: |
1 Year |
| Machine Color: |
as Request |
| Printing Width: |
800mm |
| Printing Length: |
180-1200mm |
| Total Power: |
10kw |
| Plate Thickness: |
2.38mm |
| Color & Page: |
Multi-Colour Printing Press |
| Plate: |
Relief Printing |
| Embossing Structure: |
Platen Press |
| Type: |
Ink Jet |
| System Supported: |
Windows2000 |
Product Description

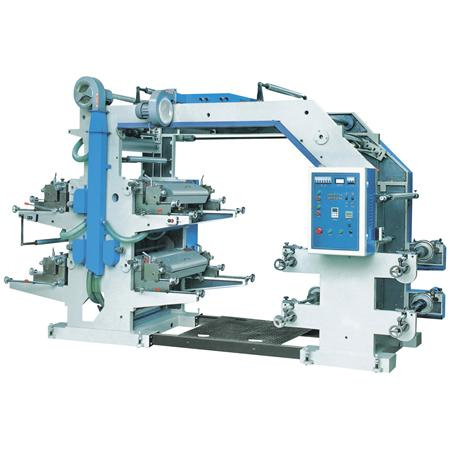

YT series flexographic printing machine
Use:
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
1. Easy operation, flexible starting, accurate colour register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
.
Main Technical Variables:
|
Model of Machine
|
YT-2600
|
YT-2800
|
YT-21000 |
Max. Width of PrintingMaterial
|
600mm
|
800mm
|
1000mm
|
Max. Printing
Width
|
560mm
|
760mm
|
960mm
|
Length Range
of Printed
Product(mm)
|
180-1200mm
|
180-1200mm
|
180-1200mm
|
Max. Diameter of Roll Material
|
Φ 450mm
|
Φ 450mm
|
Φ 450mm
|
Printing Speed
|
5-50m/min
|
5-50m/min
|
5-50m/min
|
Thickness of
plate(Including
Two-sided
Glue Paper)
|
2.38mm
|
2.38mm
|
2.38mm
|
Total Power
|
8kw
|
10kw
|
12kw
|
Weight of
Machine
|
1800kg
|
2000kg
|
2300kg
|
Overall(mm)Dimensions
|
2300*1600*2200
|
2300*1800*2200
|
2300*2000*2200
|
