Product Specifications
| Prod Model: |
HP804B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Condition: |
New |
| Type: |
TV Front-end Equipment |
| Function: |
MPEG2 HD/MPEG4 HD Encoding |
Product Description

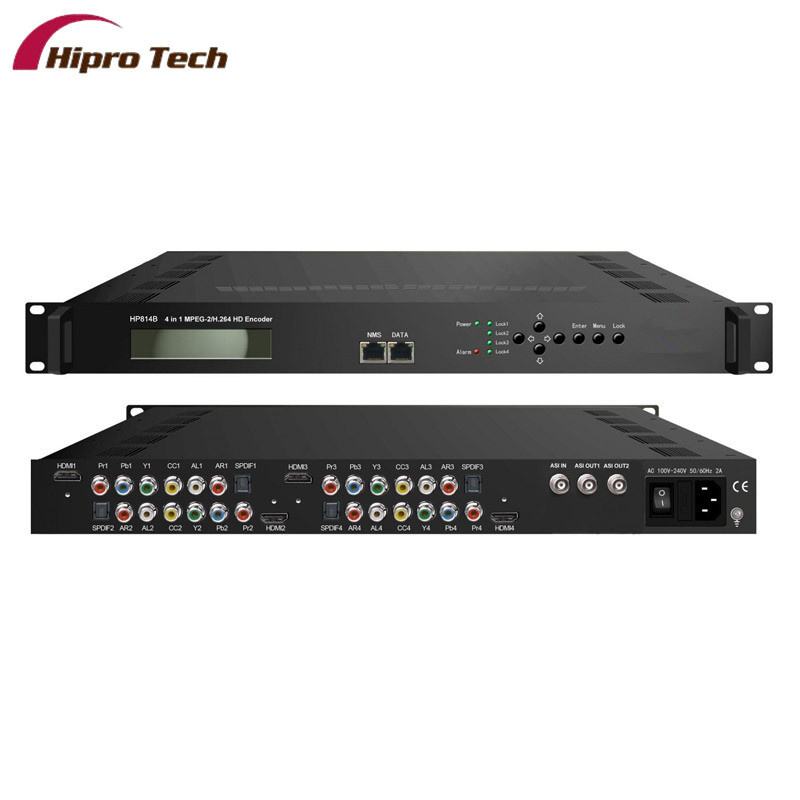

HP814B MPEG2/MPEG4 HD 4-in-1 Encoder
HP814B MPEG2/H.264 HD Encoder is HIPRO's new professional HD audio &
video encoding device with powerful functionality.
It has equipped with 4 YPbPr/HDMI channels input supporting MPEG-2 & MPEG-4
AVC/H.264 video encoding and DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC,
MPEG1 Layer II audio encoding and AC3 (2.0/5.1/7.1) passthrough. It is also
embedded with 4 CVBS port for CC (Closed Caption) only.
To meet customers' various requirements, HP814B is also equipped with 1 ASI input,
and output with 2 ASI ports and 1 IP port.
Key Features
* MPEG2 HD & MPEG4 AVC H.264 HD video encoding
* DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio
encoding
* Support DD AC3 (2.0/5.1/7.1) passthrough
* 4* HDMI/YPbPr channels in
* 1*ASI in for re-mux;
* Support CC (Closed Caption) EIA608, (from CVBS source only)
* Support Low Delay
* LCN (Logical Channel Number) support
* LCD display, Remote control and firmware
* Web-based NMS management; Updates via web
Principle Chart
Hipro Electronics Co., Ltd. Have been specialised in the research, manufacture of satellite digital CATV front-end equipments and IPTV equipments for more than 10 years in Chengdu, China
We offer full range of IRD & Decoder, Encoder, Multiplexer, Scrambler, Modulator, all-in-one device, We help network operator build digital TV broadcasting system based on DVB-C, DVB-T/T2, DVB-S/S2, ISDB-T solution, and IPTV system solution.
We are also one of leading IPTV operator, adopt the most advanced P2P IPTV streaming technology, customer can watch channels in the world only if there are internet. We can offer Arabic channels IPTV receiver, Turkish channels IPTV receiver, Indian channels IPTV receiver, etc.
All of our products have to undergo a burn-in test before shipment, they are fully connected and have to function correctly for 30 uninterrupted days. Only then can they be shipped to customers.
Hipro have a powerful technical engineer team to provide professional technical support and after sale service.
Hipro always takes the belief" Leading technology first, bring to the beautiful TV world
