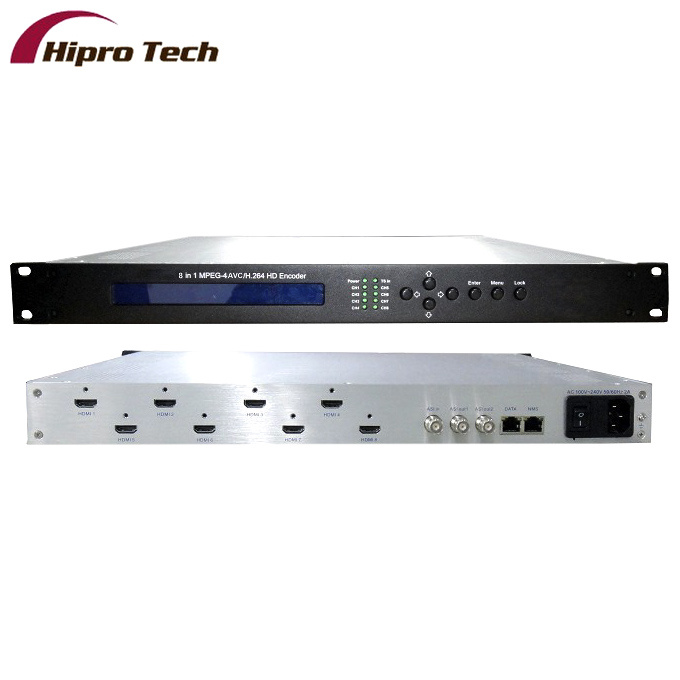

Digital IPTV HD MPEG4 encoder
IPTV broadcast level encoder
1. 8 Channels HDMI input
2. H.264/AVC High Profile HD video encoding
3. ASI output MPTS and 8 SPTS
4. IP output MPTS and 8 SPTS, support UDP unicast/ multicast,
1000 Base-T Ethernet interface, Gigabit TS over IP output
5. Support IP null packet filter
6. Support HDCP
7. IPTV broadcasting over UDP
Product Overview
HP808D, 8 Channels MPEG-4 AVC/H.264 HD encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format and 1 ASI input. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV,IPTV head-end etc.
Key Features
Support 8 HDMI channels input & 1 ASI Input ( 8 HD-SDI input can be customized)
Support H.264/AVC high profile level 4.0 video encoding
Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding
Support PSI/SI editing and inserting
Support VBR/CBR video bit rate mode
Support 720P, 1080I, 1080P HD video format
Support ASI output MPTS or 8 SPTS
Support IP Output MPTS and 8 SPTS over UDP, Gigabit TS over IP output, 1000 Base-T Ethernet interface (UDP unicast / multicast)
Support IP null packet filter
Real-time output bit-rate monitoring
Update device through NMS port
Support LCD / keyboard operating, and network management (SNMP)
Principle Chart
Specifications
|
Input |
8× HDMI inputs |
|
1 ASI input, BNC interface |
|
Video |
Resolution |
1920× 1080_60P, 1920× 1080_50P |
|
1920× 1080_60i, 1920× 1080_50i |
|
1280× 720_60P, 1280× 720 _50P |
|
720× 576_50i, 720× 480_60i |
|
Encoding |
MPEG-4 AVC/H. 264 |
|
Bit-rate |
0.8Mbps~19Mbps (each channel) |
|
Rate Control |
CBR/VBR |
|
IBBP |
GOP Structure |
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|
Audio |
Encoding |
MPEG-1 Layer 2, HE-AAC (V2), LC- AAC |
|
Sampling rate |
48KHz |
|
24-bit |
Resolution |
|
Bit-rate |
64Kbps~384Kbps each channel |
|
Multiplexing |
1 ASI input multiplexed with local 8 channels of TS |
|
Stream output |
2*ASI output, BNC interface |
|
MPTS and 8 SPTS over UDP, 1000 Base-T Ethernet interface (UDP unicast / multicast); |
|
System function |
LCD/keyboard operating, net manager (SNMP) |
|
Chinese-English control interface |
|
Ethernet software & hardware upgrade |
|
Miscellaneous |
Dimension (W× L× H) |
440mm× 410mm× 44.5mm |
|
Approx weight |
4kg |
|
Temperature |
0~45(work), -20~80(Storage) |
|
Power |
AC 100V-220V± 10%, 50/60Hz |
|
Consumption |
25W |
