Product Specifications
| Prod Model: |
LXH-PCB-J2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
UL, RoHS, ISO9001 |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Lxh |
Product Description

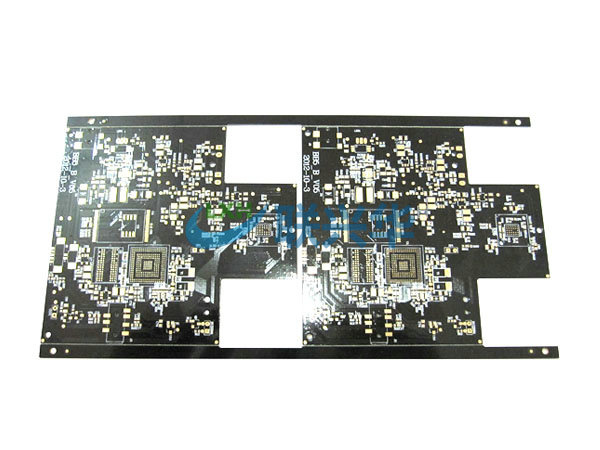

4-Layer Impedance Control Printed Circuit Board
| Layer | 4 Layers |
| Board thickness | 1.6mm |
| Materials | FR-4 |
| Material brand | KB |
| Tg value | 170 |
| Finished copper thickness | 2 OZ |
| Surface finish | Enig |
| Solder mask | Black |
| Impedance Control | Yes |
| Min. hole size | 0.1mm |
| Min. line width/space | 3/3 mil |
| E-Test | 100% |
Adventages:
1. High quality with with competitive price.
2. All foreign orders are priority production in our factory.
3. Can finish four layers prototype sample with three day.
Shenzhen Lianxinghua Electronic Co. Ltd (abbr:LXH) Founded in 2005 at Rich industrial park, Zhenmei Villiage, Guangming new District ,Shenzhen ,Guangdong Province, specialized in producing quick around prototype PCB, small and medium volume PCB , can produce 1-30 layer PCB including High frequency, High TG, Thick copper board. LXH owns 400 employees and 8000 Square meters producing area. The monthly capacity is 10000 square meters, monthly PCB types are more than three thousand.
Shenzhen Lianxinghua Electronics Co. Ltd (abbr: LXH)Founded in 2005 at Rich industrial park, Zhenmei Villiage, Guangming new District, Shenzhen, Guangdong Province, specialized in producing quick turn around prototype PCB, medium and small volume PCB, can provide with 1-30 layer PCB including High density interconnection board, High frequency, High TG, Thick copper. Aluminum substrate, flexible board and rigid-flexible board. LXH owns 400 employees and 8000 Square meters producing area. The monthly capacity is 10000 square meters. Monthly output PCB types are more than Thousand.
Products are widely used in high-tech fields such as computer, communication, Home appliances, Photoelectric, Positioning system, Medical equipment, audio video equipments, Instrument, automobile, industrial control and so on. In the face of the fierce market competition, LXH continue to introduce talents, strengthen staff training and the enterprise management, Pass the certification of UL and the quality system of ISO9001. Since company establishment, LXH abide by the business philosophy of"people-oriented, Quality first, the user is supreme, Innovation and hard working ", Throughout 10 years of continuous development, LXH enjoy good reputation with high quality, on-time delivery, fast feedback and earn many high quality customers around the world.
