FZ-PCB TECHNOLOGY CO., LIMITED >> 4 Layers PCB Boards and Circuit Boards

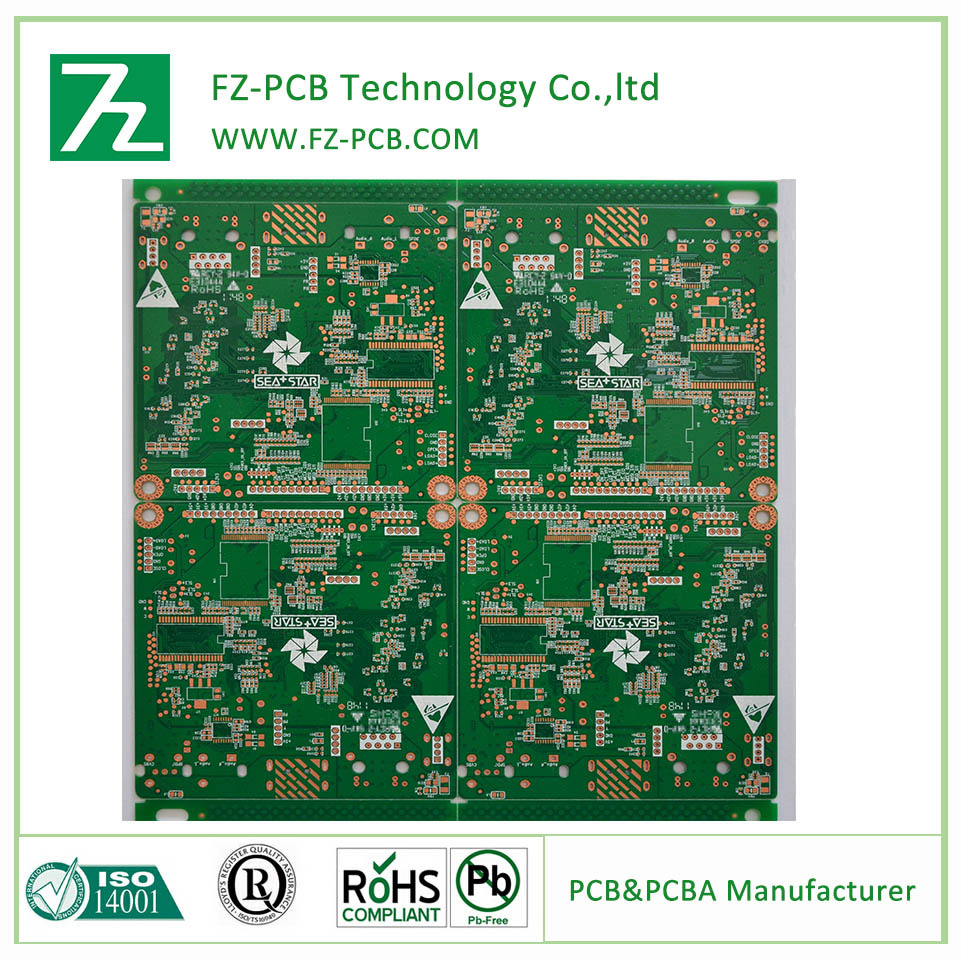

4 Layers PCB Boards and Circuit Boards

Name: 4 Layers PCB Boards and Circuit Boards
Brand: china-manufacturer-directory.com
SKU: 737480905
Availability: InStock
Rating: 4.9 (105 reviews)

Supplier:	FZ-PCB TECHNOLOGY CO., LIMITED
Price:	US $ 0.1piece
Min Order:	1piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	pcb, pcbs, pcb boards, circuit board
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Finish:	Immersion Silver
Solder Mask:	Red
Board Thickness:	1.6mm
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

RoHS/UL, ISO9001:2008 & ISO/TS16949:2009, TS14001:2004, one stop service PCB to PCBA
Reliable and stable quality with more than 12 years pcb manufacturing experience

Quotation Requirement and Time:

1) Following specifications are needed for quotation:

a) Base material:

b) Board thickness:

c) Copper thickness:

d) Surface treatment:

e) color of solder mask and silkscreen:

f) Quantity

2) Qutoation within 2 hour after we get the gerber file or pcb file with complete specifications

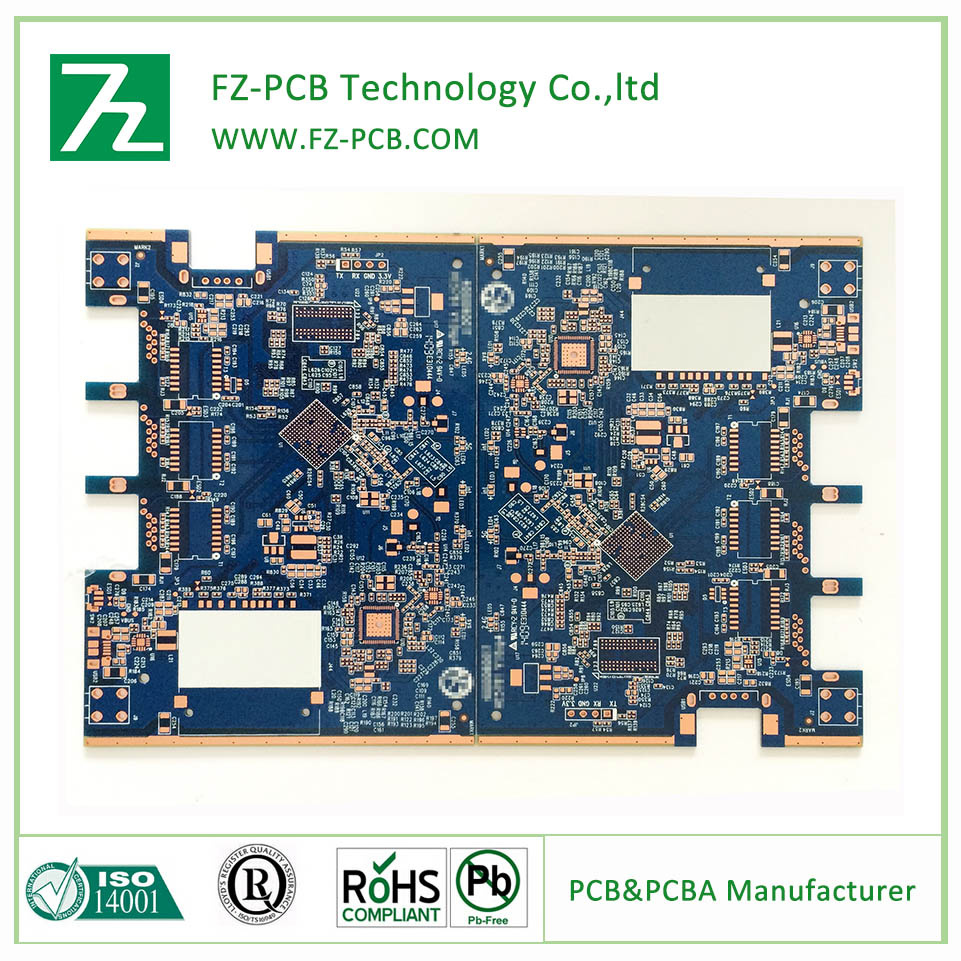

Similar PCB show

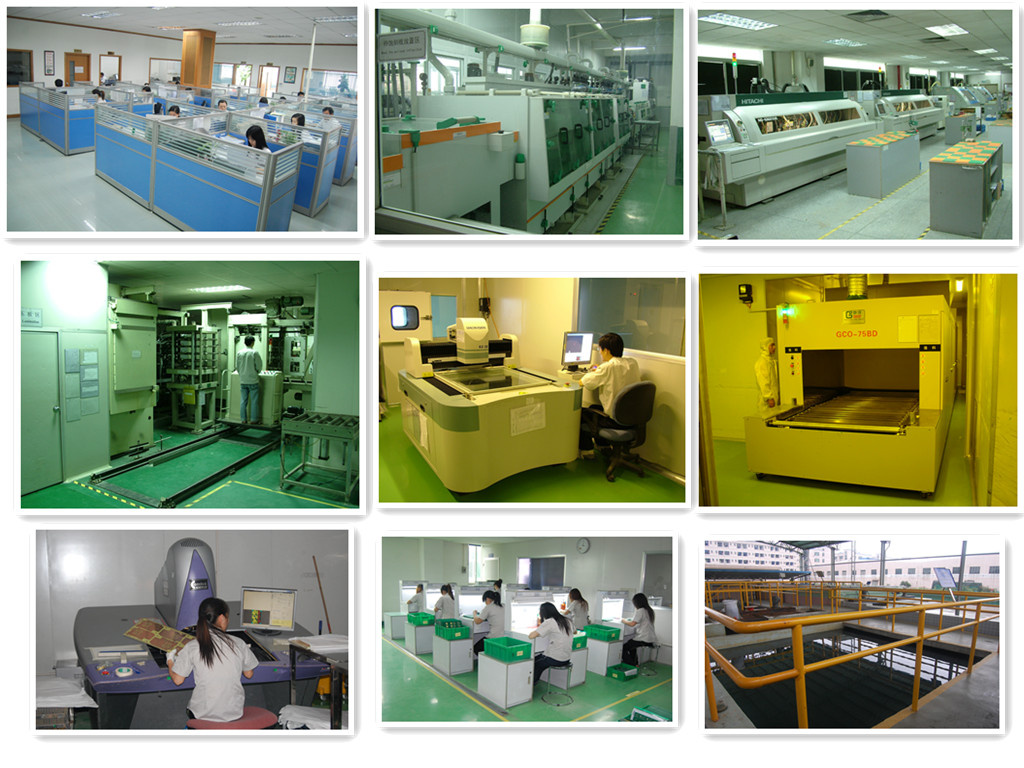

Factory galance

Delivery Timescales
Sample
*Single layer 5days
*Double Side 5-7days
*4 ~ 6 layers 8-10days
*Above 8 layers 10-14days
*Aluminum PCB 7-10days
*Flexible PCB 10-14days
* Urgent Routing sample could be pushed 2-3 days earlier with premium.

Mass Production
*Single layer standard 10 days
*Double Side standard 13days
*4~6 layers standard 15days
*Above 8 layers standard 18days
*Aluminum PCB standard 15days
*Flexible PCB standard 18days
*Material availability dependant.

Package & Shipping Method:
1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement

Payment method
1. T/T
2. Paypal
3. Western Union

Files	Gerber, Protel, Powerpcb, Autocad, Orcad, etc
Material	FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , FR1, CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic), Polymide.
Layer No.	1 - 16 Layers
Board thickness	0.0075"(0.2mm)-0.125"(3.2mm)
Board Thickness Tolerance	±10%
Copper thickness	0.3OZ - 4OZ
Impedance Control	±10%
Warp and Twist	≤0.075%
Peel Strength	≥61B/in(≥107g/mm)
Min Trace Width (a)	3mil
Min Space Width (b)	3mil
Min Annular Ring	0.004"(0.1mm)
SMD Pitch (a)	0.012"(0.3mm)
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b)	0.027"(0.675mm)
Register tolerance	0.05mm
Min Solder Mask Dam (a)	0.005"(0.125mm)
Solder mask Clearance (b)	0.005"(0.125mm)
Min SMT Pad spacing (c)	0.004"(0.1mm)
Solder Mask Thickness	0.0007"(0.018mm)
Hole size	0.008"(0.20mm)-- 0.257"(6.5mm)
Hole Size Tol (+/-)	±0.003"(±0.0762mm)
Max PTH Aspect Ratio	10:1
Hole Registration	0.003"(0.075mm)
HASL	2.5um
Lead free HASL	2.5um
Immersion Gold	Nickel 3-7um Au:1-3u''
OSP	0.2-0.5um
Panel Outline Tol (+/-)	±0.004''(±0.1mm)
Beveling	30°45°
V-cut	15° 30° 45° 60°
Surface finish	HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink,
Certificate	ROHS ISO9001 TS16949 SGS UL
Special requirements	Buried&blind vias, Impedance control, via plug, BGA soldering and gold finger

FZ-PCB is one of Asia' S leading full-service PCB to PCBA solution providers. Established in the year 2002, mainly provide the high-level quality PCB board and PCB assembly service to our customer which are the leading companies in the telecommunication, LED, medical treatment, aviation, instrumentation, micro-electronics and automated-control area. Our achievements are recognized through our customers' Success, industry and customer recognition, and continuous quality improvement.
