Product Specifications
| Prod Model: |
VCT-1540W-2Z-4H |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
| Working Size: |
1500×4000×160mm |
| Spindle Power: |
2.2kw×4PCS |
| Max Engraving Speed: |
12000mm/M |
| Machining Accuracy: |
<0.03/300mm |
| Transmission: |
Y Axis Gear Rack, Xz High Accuracy Ball Screw |
| Support Format: |
G Code or Hpgl |
| Net Weight: |
1500kg |
| Packing Size (L×w×h): |
5000X2250X1950mm(16.4 X7.4 X6.4ft) |
| Driver: |
Stepper (Servo Motor Is Optional) |
| Tool Diameter: |
4, 6, 8, 12mm |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
| Spindle Number: |
4 Heads |
Product Description

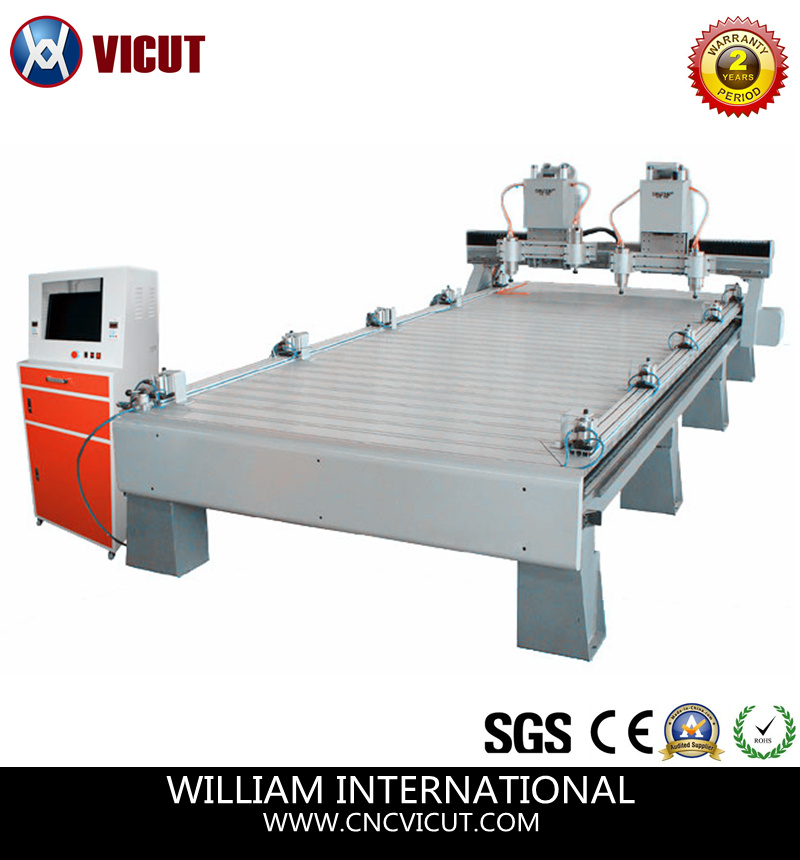

Multi-head CNC Wood Router (VCT-1540W-2Z-4H)
Model:VCT-1540W-2Z-4H
Features:
1.Large working size CNC engraving and cutting systems with 2 Z axes hold 4 spindles, improve working efficiency.
2.Use air cylinders to hold the materials instead of vacuum inhaling system, which makes job easier and save money.
3.Customized color and size is available.
Applications:
It is widely used in Antique furniture with relief carving, wood carving, furniture processing, instruments making ,3D light box making , Aluminum composite panel ,funding mould decorative doors and windows processing etc.We have many choices for different size according to your needs.
Technical Parameters:
| Model | VCT-1540W-2Z-4H |
| Working Size | 1500×4000×160mm (4.9×13×0.52ft) |
| Spindle Power | 2.2KW×4PCS |
| Driver | Stepper (servo motor is optional) |
| Tool Diameter | 4,6, 8,12mm |
| Structure | Cast square tube |
| Transmission | Y axis gear rack, XZ high accuracy ball screw |
| XYZ Guiding Rails | PMI Square Rails |
| Machining Accuracy | <0.03/300mm |
| Maxi Engraving Speed | 12000mm/m |
| Spindle Speed | 6000~24000rpm |
| Data Transmission | Connect with PC directly (NC Studio controller) |
| Format of instructions | G code or HPGL |
| Voltage | AC220V/50HZ or 380V/60Hz |
| Net Weight | 1500KG |
| Packing size | 5000x2250x1950mm(16.4 x7.4 x6.4ft) |
1.Air cylinder fixture:It holds material automatically with great force, which is faster to use and saves much strength.More economical than vacuum inhaling system.
2.Ball Screw and Gear Rack:Use TBI ball screw for XZ axis, anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.Y axis use high accuracy gear rack.The combination for ball screw and gear rack makes machine working more accurate and stable.
3.Linear square guide:Quality 25MM linear square guide with high rigidity, resist vibration and shock, with damping characteristics.
4.Servo Motor:AC Panasonic Servo motor for more smooth motion and triple working speed and they require no regular maintenance.
5.3KW Water Cooling Spindle:Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc.
6.NC Studio Controller:PC based NC Studio Controller with more friendly human-machine interface/HMI, fully executed with computer.
7.Central oil Lubricator:Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
Optional :
1.Vacuum system:The vacuum table multi-zoned which allows the operator to easily switch from full sheet processing to smaller part, gaskets can also be routed to accommodate various material sizes and styles.Fixtures can also be used if needed as we put aluminum alloys beside the vacuum table.
2.PVC on Aluminum table:Black 7mm PVC on top of aluminum profile table, protect the table from cutting scratching.
3.Mist sprayer:It sends oil mist to machining surface, it is important for tool cooling and lubricating.
4.Dust skirts:Switchable structure with dense skirts for your convenience to load tools, easy to remove the dust completely.
5.NC Studio Handle Wheel:Better anti-jamming and allowing long distance transmission of signal, with a 3m hand wheel cable;Accurate pulse output;Resolution:100P/R;You can control the machine movement by adjust the hand wheel;That makes control operation more easy and convenient.
6.Tool Sensor:For Automatic tool length calibration and registration, it allows for easy and accurate "Z" zero position for single and multiple tool changes through the program, saves time & error-free.
