Product Specifications
| Prod Model: |
6CTAA8.3-G2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Beijing, China |
| Brand Name: |
Cummins |
| Engine Type: |
Diesel |
| Fuel: |
Diesel Engine |
Product Description

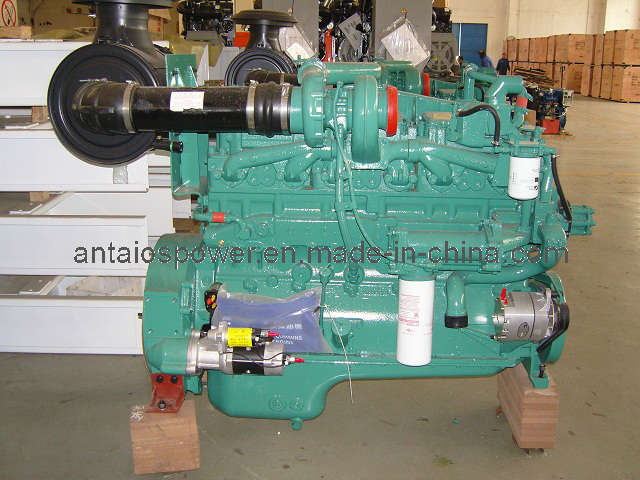

In-line, 6 Cylinder, 4 Cycle, Turbocharged and Charge Air Cooled Diesel Engine
Forged steel crankshaft, Cast iron cylinder and replaceable wet type cylinder liner, Low discharge, and low fuel consumption.
Reliable Engine from DCEC, certificated by
1. ISO/TS16949.2002 Quality Management System
2. ISO 14001 Environment Management System
3. OHSAS 18001 Occupation Health and Safety Management
| Bore x Stroke | 114mmx 135mm |
| Displacement | 8.3Liters |
| Compression Ratio | 17.0: 1 |
| Rated Speed | 1500(1800)rpm |
| Prime Power | 188kw/210kw |
| Standby Power | 207kw/230kw |
| Fuel Injection Pump | P7100 Injection Pump |
| Governor | GAC Electrical Governor |
|
|
| Steady Speed Droop | ≤ 1%( Electrical Governor) |
|
|
| Lubricant Capacity | 23.8 Liters |
| Coolant Capacity | 12.3 Liters(Engine Only) |
| Net Weight | 702kg |
| Gross Weight | 730kg |
| Overall Dimension(LxWxH) | 1128mmx833mm x 1146mm |
| Coolant Intake Size | Φ 50mm |
| Coolant Outlet Size | Φ 57mm |
| Flywheel/Flywheel Housing | SAE 2#/ SAE 2# |
| Cooling | Forced Water Cooling Cycle |
FAQ
1. HOW DO YOU SUPPLY AFTER SERVICE IF CUSTOMER IN FOREIGN COUNTRIES?
A:AT PRESENT, WE DON'T HAVE AFTER-SERVICE SITE IN FOREIGN COUNTRIES,IT HAS ALREADY TAKEN OUT 2% DESCOUNT FROM EXPORT PRICE FOR NO-AFTER-SERVICE.IF THERE IS QUALITY PROBLEM OF OUR PRODUCTS IN WARRANTY TIME,OUR SOLUTION IS:1.INTERNET REMOE TECHNICAL SERVICES 2.SUPPLY NEW SPARE PARTS TO USER FOR REPAIRING 3.CHANGE DAMAGED OR QUALITY PARTS FREE OF CHARGE.
2. HOW ABOUT TRANSPORT?
A:FOR CAERRN CARGO ,WE GENERALLY USE AIR COURIER DELIVERY TO THE CUSTOMER, FOR BULK GOODS, WE HAVE ADOPED SHIPPED BY SEA TO THE PORT OF DESTINATION SPECIFIED BY THE CUSTOMER,OR THE CUSTOMER DESIGNATED WAREHOUSE.We WORK WITH WORLD-RENOWNED SHIPPING,AIR TRANSPORT COMPANIES HAVE ESTABLISHED A GOOD COOPERATIVE RELATIONSHIP,WHICH ENSURES LOW SHIPPING COSTS AND OUR TRANSPORTATION SAFETY.
3.WE CAN FOLLOW OUR ENGINE PRODUCTION , IF ENGINE IS EQUIPEED WITH SPECIAL REQUIRENMENTS.
A:OUR ADVANTAGE IS THAT YOU CAN CUSTOMIZE ACCORDING TO CUSTOMER REQUIREMENTS AND CHANGE THE CONFIGURATION OF THE ENGINE, IF THE CUSTOMMER HAS SPECIAL REQUIREMENTS FOR THE ENGINE CONFIGURATION, WE WILL GO ACCORDING TO CUSTOMER REQUIREMENTS CUSTOMIZED PRODUCTION.
4.HOW ABOUT THE DELIVERY TIME?
A: THE PRODUCTION TIME OF COMPLETE DIESEL ENGINE IS ABOUT 15~20 DAYS.
ABOUT SPARE PARTS, THERE ARE ENOUGH RESERVE FOR PARTS, DELIVERY TIME IS 15~20 DAYS.
Beijing Antaios Technology Co., Limited is the absolute specialist of China in engines & parts & gensets field. So far away, we mainly supply engines and related parts and genset which were of Deutz licensed technology and then developed to Chinese own brand with more subsidiary series, smaller size, more environment friendly and better function. Including: 912/913/413/513 air-cooled series; 1015 series; Cummins China series. All products are passed ISO9001 quality system authentication,
We are familiar with different parts manufacturers and can well organized the parts supply and quality control, that's why we can satisfy our clients with reasonable price and good quality.
We are pleased to give full solution to your demand and aimed to be your most trustworthy partner in China.
Our Products List:
Deutz Chinese license diesel engine & deutz engine spare parts of water cooled 1015 series, air cooled 413/513 series and Deutz technology of China 912/913 Series.
Dongfeng-Cummins series water cooled diesel engine &spare parts.
DEUTZ, CUMMINS, LOVOL Series Diesel Generator Set
Concrete Pump which including engine and electromotor powered, S Pipe valve and gate valve, two Series and more than twenty models.
