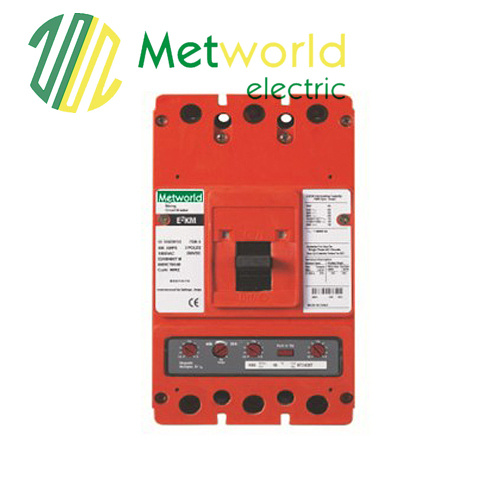

400A MCCB 3p Moulded Case Circuit Breaker

Product Specifications

Prod Model:	AM, ST
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Demition:	Can Be Customized
Design:	Can Be Customized
Material:	Can Be Customized
No. Of Pole:	2,3,4
Color:	Customized
Standards:	CE
Category:	a,B,C,D
Voltage:	All Range
Current:	All Range
Paint:	Customized
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Open Frame
Structure:	MCCB
Poles Number:	3
Certification:	CE

Product Description

Application



AM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors.The products conforms to IEC60947-2 standard.




Specification



Type	Rated current (A)	Polenum-ber	Ratedinsui-atingvolt-age(V)	Rated operat-ingvolt-age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Operation perform- ance		Utiliza-tioncat-egory
								Load	Unload
AM1-63L	(6),10 16,20 25 ,32 40,50 63	3, 4	500V	400V	0	25	18	1500	8500	A
AM1-63M					0	50	35
AM1-100L	(10),16 20,25 32,40 50,63 80,100		800V		0(≤50)	35	22
AM1-100M					0(≤50)	50	35
AM1-100H					0(≤50)	85	50	1000	7000
AM1-225L	100,125 160,180 200,225				≤50	35	22
AM1-225M					≤50	50	35
AM1-225H					≤50	85	50	1000	4000
AM1-400L	225,250 315,350 400				≤50	50	35
AM1-400M					≤100	65	42
AM1-630L	400,500 630				≤100	50	35
AM1-630M					≤100	65	42
AM1-630H					≤100	100	65
AM1-800M	630,700 800	3			≤100	75	50
AM1-800H					≤100	100	65
AM1-1250M	1000,1250				≤100	100	65
AM1-1250H					≤100	125	75
AM1-1600M	1600				≤100	150	80

Note: 6A without thermal protection
The N-pole of four-poles breaker is sited at the right side of the product has four types:
Type A: Without current trip-lease on N pole which making all the time, not closing and opening with the other three poles.
Type B: Without current trip-release on N pole which closing and opening with the other poles.
Type C: With current trip-release which closing and opening with the other three poles.
Type D: With current trip-release which making all the time not closing and opening with the other three poles.


 Shipping:

1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
We provide 1 year warranty.
