Residual Current Operated Circuit Breaker / RCBO
Product Specifications
| Prod Model: |
STBL,ALBL,EPBL,STBLE,ALBLE,EPBLE,STNLE-32,etc. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
IEC61009-1 |
| Protection: |
Ground Fault and Over Current |
| Rated Current: |
6,10,16,20,25,32,40A |
| Rated Voltage: |
230/400V AC |
| Width: |
17.8mm Per Pole |
| Rated Sensitivity Currents: |
10,30,100,300mA |
| No. Of Pole: |
1,2,3,4 |
| Tripping Duration: |
<=0.1s |
| Tripping Curve: |
B,C,D |
| Type Of Terminal: |
Lug or Pin |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Certification: |
Kema |
| Poles Number: |
1,2,3,4 |
Product Description
STBL1-40 Residual Current Operated Circuit Breaker
Catalogue Number | Rated Current (A) | Number of Pole | Rating | Type | Un(V) | IΔc(A) |
STBL1-40 | 6,10,16,20, 25,32,40 | 1P+N | 10,30, 100,300 | AC,A | 230VAC | 6000 |
Stylish modern profile, matches all other SETEN devices Double pole module Positive contact status indicator Available from 6 to 40A rating Available in B,C type Lockable dolly switch
-
STBL1-63 Residual Current Operated Circuit Breaker
Catalogue Number | Rated Current (A) | Number of Pole | Rating | Type | Un(V) | IΔc(A) |
STBL1-63 | 6,10,16,20, 25,32,40,63 | 1P+N,2P,3P, 3P+N,4P | 30,100,300 | AC,A | 240V/415V | 6000, 10000 |
STBL1-63 RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage 240V/415V. When an electric shock or the residual current of the circuit exceeds the threshold value, the RCBO can cut off the power within the time of 0.ls to protect the personal safety and prevent the equipment from the fault result by the residual current. Combined with MCB RCBO, it can also protect the circuit against overload and short circuit.It conforms to IEC61009 standard.
-
Residual Current Operated Circuit Breaker
Catalogue Number | Rated Current (A) | Number of Pole | Rating | Type | Un(V) | IΔc(A) |

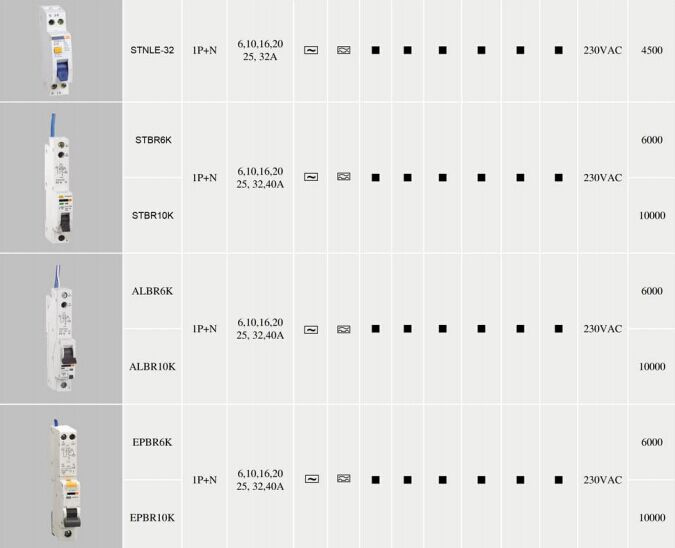

STNLE-32 | 6,10,16,20, 25,32 | 1P+N | 10,30, 100,300 | AC,A | 230VAC | 4500 |

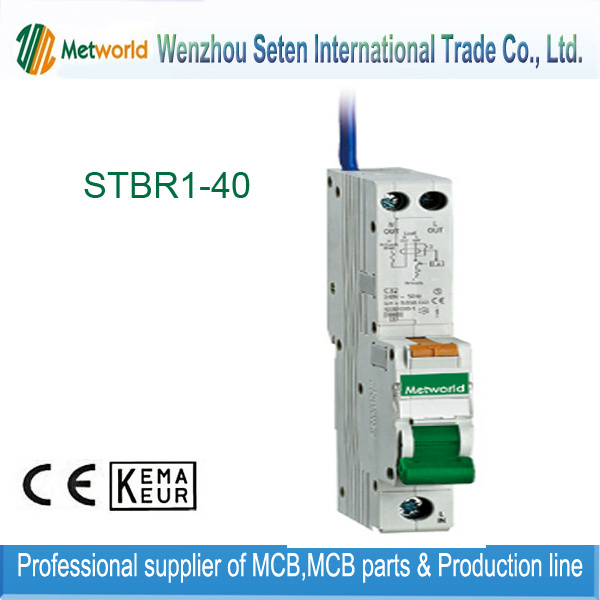

STBR1-40 | 6,10,16,20, 25,32 | 1P+N | 10,30, 100,300 | AC,A | 230VAC | 6000, 10000 |
About Wenzhou Seten International Trade Co., Ltd.Established in 1997, Wenzhou Seten International Trade Co., Ltd.Is a China-based professional supplier of casting machine to produce various casting spare parts with professional, dynamic and customer-oriented staff.Aimed on people, each individual makes a unique contribution to the business and you.The professionalism, skills and knowledge of our team throughout the business allow us to deliver you the product you need in higher quality at more reasonable price.
