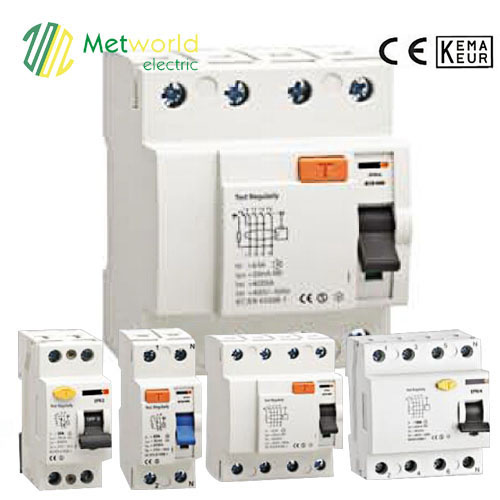

Epr Series Residual Current Circuit Breaker

Product Specifications

Prod Model:	EPR-2, EPR-4, EPRi-2, EPRi-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
No. Of Pole:	1,2,3,4
Brand:	Metworld
Standards:	IEC
Range:	Low Voltage
Protection Degree:	IP20
Rated Conditional Short-Circuit Current:	6ka
Protection:	Ground Fault
Type Of Terminal:	Lug Type and Pin Type
Type Of Trip:	Electro-Magnetic Release
Rated Residual Current Making/Breaking:	500A for in=16,25,32,40A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CB
Structure:	RCCB
Poles Number:	All

Product Description

model NO	residual current circuit breaker
standard	confirming to EN/IEC61008-1
rated conditional short-circuit current,Inc	6kA
protection	ground fault
rated current In	16,25,32,40,63,80,100A
number of poles	2(1+N),4(3+N)pole
rated sensitivity currents 1n	10,30,100,300mA
rated residual non-operating current	0.5*In
rated impulse withstand voltage Uimp	6000V
rated voltages 2pole	230VAC
rated voltages 4pole	230/400VAC
protection degree	-25-+40 degree centigrade
residual current off-time at 1 n	≤0.1s
rated residual current making & breaking	500A for In=16,25,32,40A
capacity,1m	630A  for In=63,80,100A
type of trip	electro-magnetic release
type of terminal	lug type and pin type
terminal capacity	cables up to 35
protection degree	IP20
installation	35mm DIN rail
