Wenzhou WOSN Electron Technology Co., Ltd. >> 400W Switching Power Supply with RoHS Certificate

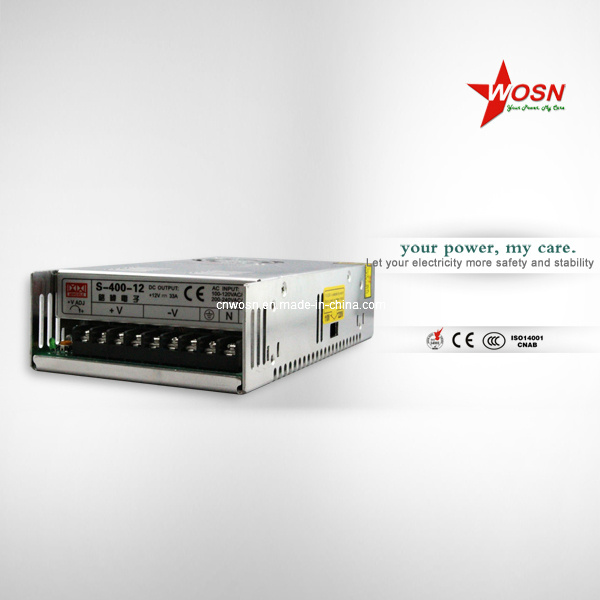

400W Switching Power Supply with RoHS Certificate

Name: 400W Switching Power Supply with RoHS Certificate
Brand: china-manufacturer-directory.com
SKU: 731160855
Availability: InStock
Rating: 5 (32 reviews)

Supplier:	Wenzhou WOSN Electron Technology Co., Ltd.
Price:	US $ 1-100Piece
Min Order:	10Pieces
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-400-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	12V
Output Frequency:	47~63Hz
Output Current:	0~33A
Color:	Metal
Power Supply Type:	Compact Single
Protection:	Short Circuit/Over Load/Over Voltage
OEM:	Accept
Keywords:	Switching Power Supply
Output Type:	Single
Output Power:	301 - 400W
Input Voltage:	110-220V
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO

Product Description

Product Description -AC input voltage range selected by switch -Small volume,low weight,high efficiency -Protections:short circuit/over load/over voltage/over temp -Built-in cooling DC fan -Cooling fan ON-OFF auto control -LED indicator for power on -100% full load burn-in test -2 Years warranty

Model	S-400-9		S-400-12		S-400-13.5	S-400-24	S-400-27	S-400-48
DC output voltage	9V		12V		13.5V	24V	27V	48V
Output voltage range(Note:2)	1%		1%		1%	1%	1%	1%
Rated output current	43A		33A		29A	16.6A	14.8A	8.3A
Output current range	0-43A		0-33A		0-29A	0-16.6A	0-14.8A	0-8.3A
Wave and noise(Note:3)	150mVp-p		150mVp-p		150mVp-p	150mVp-p	200mVp-p	200mVp-p
Inlet stability(Note:4)	0.5%		0.5%		0.5%	0.5%	0.5%	0.5%
Load stability(Note:5)	0.5%		1%		0.5%	0.5%	0.5%	0.5%
DC output power	387W		396W		400W	398.4WW	399.6W	398.4WW
Efficiency	78%		83%		85%	85%	82%	86%
Adjustable range for DC voltage	10%		10%		10%	10%	10%	10%
Input current	5.6A/115V 2.8A/230V
AC inrush current	40A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~135% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	9.4-10.9V	13.8~16.2V	15.5~18.2V	18~21V	27.6~32.4V	33.7~39.2V		57.6~67.2V
High-temperature protection	ERH3>=65~70c Fan on, <=55~60c Fan off,>=80~85c, Cut off ouput(5~15V)~(24~48V)
Setup, rise , hold up time	1.5s, 50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10c~+60c(Refer to output derating curve), 20%~90%RH
Weight	1.1Kgs
Safety standards	UL 1950, EN60950
EMC standards	EN55022, EN100-4,2,4,5,6,8,11, IEC100-3-2

Wenzhou Wosn Electron Technology Co., Ltd. is a manufacturer specialized in developing, producing and marketing voltage regulators, Distribution Box, Power inverter.

Since the foundation of our company, we have been persisting in taking science and technology as forerunner and abundant technology as backing, and actively introducing overseas advanced technology to unceasingly improve product quality. With many years' specialized management, our products are now best-selling in China and are also exported to Bangladesh, Indonesia, Thailand and other countries in Southeast Asia and Africa. Some of them are well sold to all over the world meanwhile receiving high praise from the majority of customers. All the times, we insist on the "top quality and competitive price". Our manufacture is the one of most famous of voltage stabilizer in Egypt market.

Accorcing to the social progress and development. Our compny devote to the green power. Right now our power inverter have been sold in Euro. And Americal market. Especially the on gird inverter (Gird Tie Inverter ). We made great progress and develop by virtue of our mature technology innovation.

With the new energy industrial developing, we believe the solar power inverter will be more and more popular in the future. We are willing establish good cooperate with all friends in the world.

Our Mission: "Your Power, My Care ".
