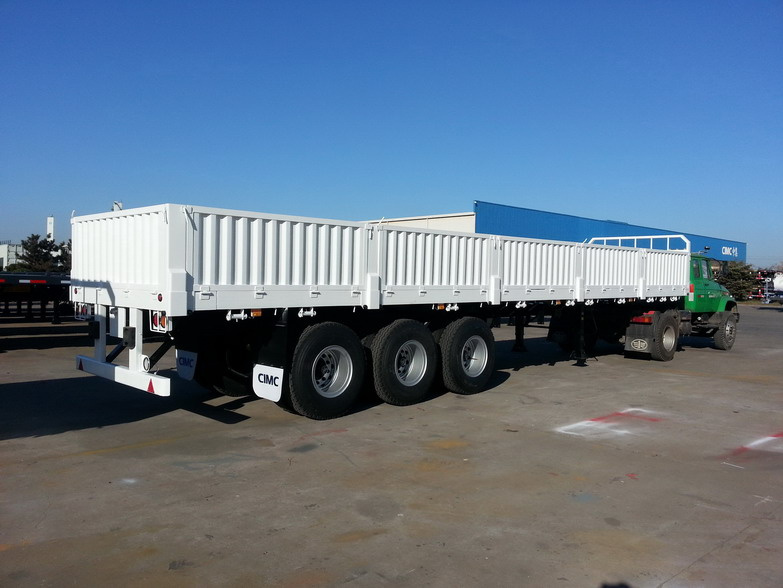

40' Drop side Cargo trailer with three-axle
(Model: ZJV9480LB)
The trailer is designed for stevedoring and transporting 1x40' ,1x 20' or 2x20' ISO Cargo Containers or loose cargos.
Dimension(Approx):
Length: Approx 12, 480mm
Width: Approx 2,566 mm (including mud guard)
Height: Approx 2,740mm @ unload
King Pin Location: Approx 1,400 mm from the front face of the front bolster
Axle spacer: Approx 6,470 mm+1,310mm+1,310mm
Landing Gear location: Approx 2,520mm behind the king pin location.
Fifth wheel (King Pin) Height: Approx 1,280mm with the chassis level
(The above dimension will be adjusted according to the tractor specification.)
Weight:
Tare Weight (Tolerance 0~-4%): Approx8, 500 kg
Max. Payload: Approx 40,000 kg
Gross Vehicle Weight: 48,500 kg
Side Wall
Drop Side Wall: Height of the drop side wall : 800mm height
Front Wall: Height of the front wall: 1200mm height
Side wall thickness: 2 mm.
Steel Structure
Main beam: Top flange thickness: 14mm, web plate thickness 8 mm, Bottom flange thickness: 16mm.
Floor:3mm thickness checkered steel plate.
OEM Parts Configuration:
King Pin: 3.5" bolting king pin. Brand: JOST.
Twist Locks: Twelve (12) units retractable ISO type twist locks.
Landing Gear:2 speed road side winding with sand shoe, Type:JOST C200, Made in China.
Suspension: Heavy duty under-mount tri-axle suspension with equalizers 8-leaf(90mm *16mm)springs.
Axles: 150x150 square axle with 13tons capacity. Brake: S420x200, Wheel fitting10x M22x1.5/ PCD335/281. Made in China.
Rims: 8.5-20, 10 Holes ISO, 12 pieces+1Piece.
Tires: 12.00R20, radial tyres,12 pieces+1piece.made in China.
Brake System: Dual air brake system, ABS system. WABCO emergency valve. Made in China
Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.
Electrical System:24 volt lighting system with modular wiring harness,7 way ISO receptacle in front of the front bolster, norms NO.1185.
Others:
Spare Tire Carrier: Equipped one set per chassis with one spare tire
Tool Box: Equipped one set
Side guard: none
Painting: shoot blast before painting, the color of paint can be chose by the customer.
Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. to be fitted.
