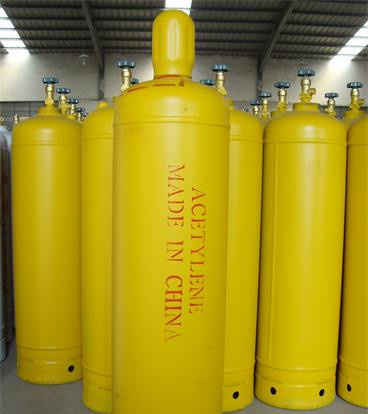

40L Dissolved Acetylene Cylinder with Competitive Price

Product Specifications

Prod Model:	series
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Gas Cylinder Material:	HP295
Volume:	40L
Color:	White,Black,Green,etc
Nominal Diameter:	250mm
Material:	Steel
Structure:	General Cylinder
Standard:	Standard
Pressure Direction:	Single-acting Cylinder
Power:	Hydraulic
Usage:	Filling Permanent Gases

Product Description

1. Our main products are: Oxygen cylinder, nitrogen cylinder, carbon dioxide gas cylinder, argon gas cylinders etc.
2. In addition, we have also provide supporting valves and we could do various specifications of valves according to client's requirement
3. With the world class equipment and advanced technical process, lytianhai can produce large, medium, small sizes high pressure seamless cylinders

Acetylene cylinder main parameters are as follows:
Name:	acetylene cylinder
Diameter:	250 mm
bottles total height:	1050 mm (40L)
The total weight of the bottle:	40 kg (40 L)
Maximum permission temperature:	40 ºC
Nominal working pressure:	3Mpa
Hydrostatic test pressure:	5.2 Mpa
Air test pressure:	3 mpa
Filling medium:	acetylene gas
Nominal capacity:	40 L
Body material:	Hp295
The design of use fixed number of year:	30 years
Nominal wall thickness:	4.0 mm
Execution standard:	GB5100 steel welding gas cylinder, GB11638 the dissolved acetylene cylinder
The maximum limit pressure:	when the base temperature 15 ºC  1.56 MPa
Packing porosity should be from 90% to 92% range
Packing should be greater than 1.8 MPa compressive strength
