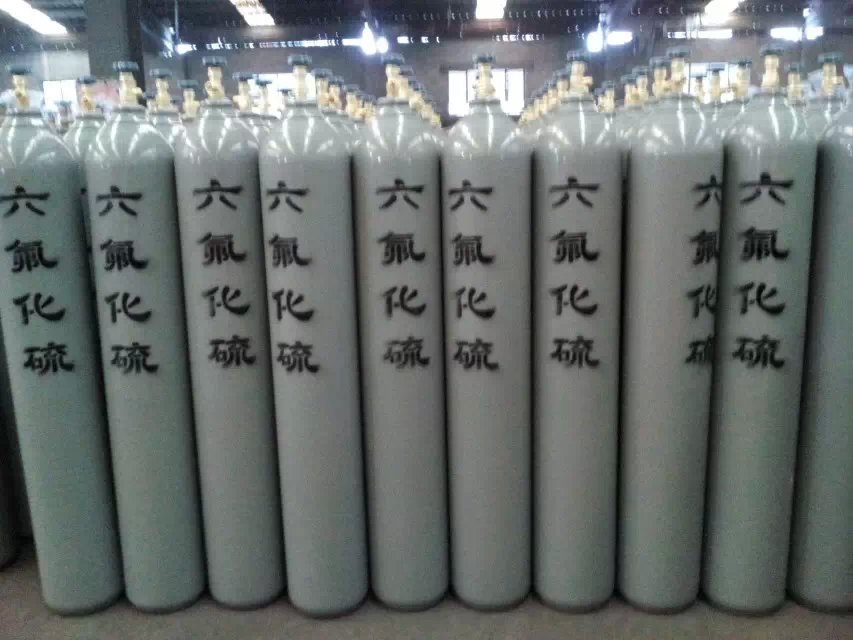

40L Empty High Quality Sulfur Hexafluoride Gas Cylinder

Name: 40L Empty High Quality Sulfur Hexafluoride Gas Cylinder
Brand: china-manufacturer-directory.com
SKU: 748404875
Availability: InStock
Rating: 4.3 (62 reviews)

Supplier:	Linyi Tianhai Import & Export Co., Ltd
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WMA219-40-15
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Gas Cylinder Material:	37mn
Volume:	40L
Color:	White,Black,Green,etc
Nominal Diameter:	219mm
Standard:	Standard
Power:	Hydraulic
Structure:	General Cylinder
Pressure Direction:	Single-acting Cylinder
Material:	Steel
Usage:	Filling Permanent Gases

Product Description

1. Our main products are: Oxygen cylinder, nitrogen cylinder, carbon dioxide gas cylinder, argon gas cylinders etc.
2. In addition, we have also provide supporting valves and we could do various specifications of valves according to client's requirement
3. With the world class equipment and advanced technical process, lytianhai can produce large, medium, small sizes high pressure seamless cylinders

the Specification of gas cylinder
Outside diameter	Capacity	Gas capacity	Design	Length	Weight	Working Pressure	Test Pressure	Material
MM	V(L)	(M3)	Wall thickness	Approx L	Approx W	MPa	MPa
MM	V(L)	(M3)	S(MM)	(MM)	(Kg)	MPa	MPa
219	19	2.8	5.7	820	27	15	22.5	37Mn
	20	3		850	31.3
	25	3.7		1000	36.4
	32	4.8		1210	43.6
	34	5.1		1270	45.6
	36	5.4		1330	47.7
	38	5.7		1390	49.7
	40	6		1450	51.7
	45	6.7		1600	56.8
	50	7.4		1615	60

1. Our main products are: Oxygen cylinder, nitrogen cylinder, carbon dioxide gas cylinder, argon gas cylinders etc.

2.In addition, we have also provide supporting valves and we could do various specifications of valves according to client's requirement

3. With the world class equipment and advanced technical process, lytianhai can produce large, medium, small sizes high pressure seamless cylinders
