Guangzhou Yulian Electronic Technology Co., Ltd. >> 42" -65"LCD Self-Service Terminals Kiosk/Information Kiosk for Interactive,Lobby Hotel,Inquiry Management System

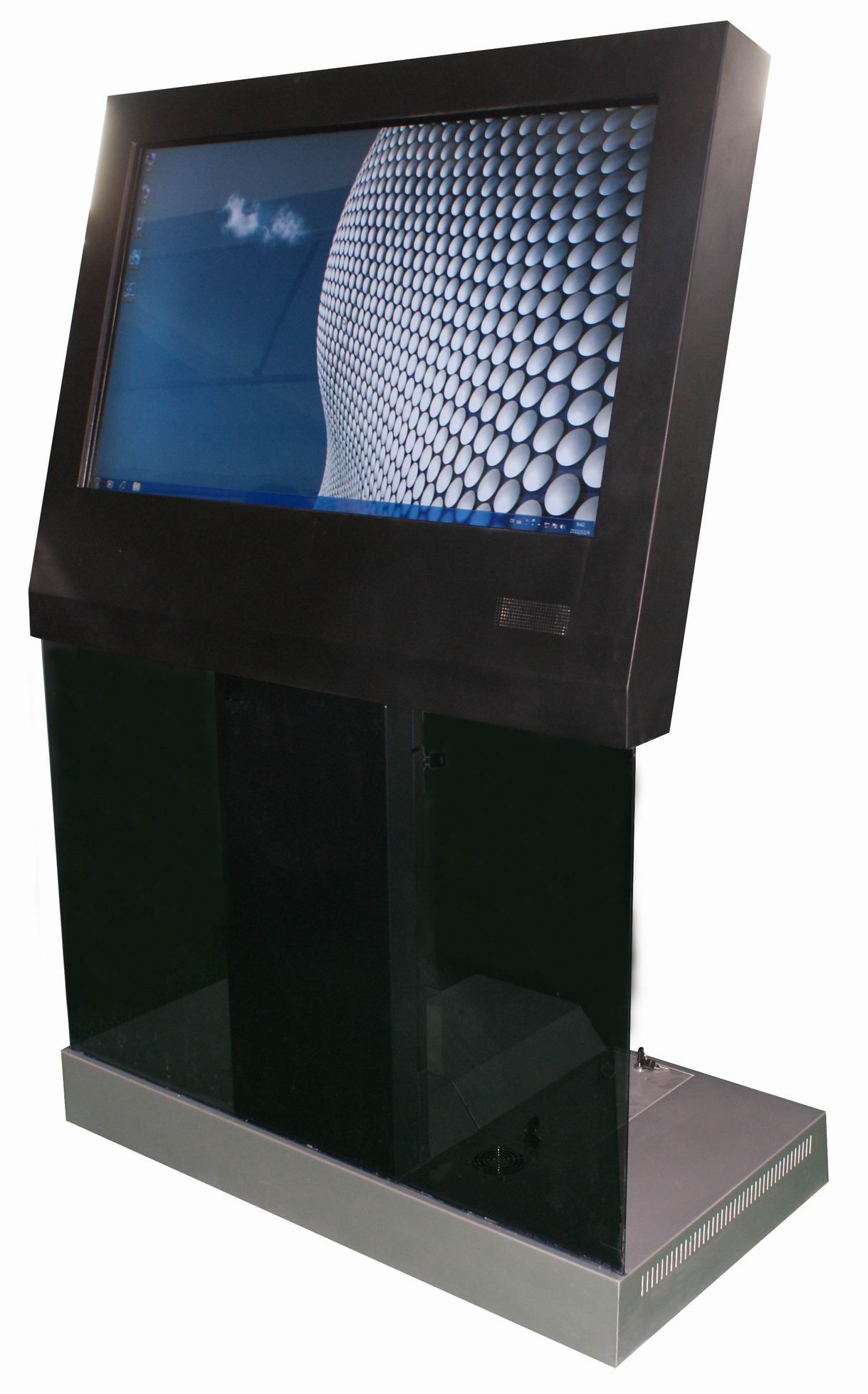

42" -65"LCD Self-Service Terminals Kiosk/Information Kiosk for Interactive,Lobby Hotel,Inquiry Management System

Supplier:	Guangzhou Yulian Electronic Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	others

Product Specifications

Prod Model:	YL04
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Touch Screen:	IR
Material:	Cold Rolled Steel
Size:	26", 32", 42", 55"
Type:	Queue System
Certification:	CE

Product Description

Touch panel: Infrared touch screen
Monitor: LCD
Display Area: TFT LCD22"/32"/42"/55"
Kiosk:
Material: Cold rolled steel ST12 SPCC
Thickness: 1.5mm

Dimension(W*D*H): 110*116*70(cm)
Work environment: Temperature: +5 ~ +35degree; Humidity: 40% ~ 80%
Network function: Four-core telphone or RJ45 network tie-in ( Standard of RJ45)
The surface: Color optional
Basic electrical equipment with cables and power adapter for monitor and sound system

Two speakers
PC:
@ 1G DDR2
@ Core 2 Duo 2.2GHz@
@ Intel Chipset motherboard
@ 250G HDD Seagate

No	Components	Model No.	Detailed Discription
1	Computer parts	PC Host	Motherboard: G41
			CPU:Intel Celeron Duo core 2.2Ghz
			RAM:DDR3 2GB; Hard Disk:320 GB 7200r
			1 RS-232 Ports,4 USB Ports,1 LTP, 1 VGA 1 10/100M Net Port
			Integrated Net Card, Sound Card Graphic Card
			Additional colorful display card
			Computer case and power supply
2	Monitor	42" LCD	Brightness: 500lumens/m2
			Contrast: 1200:1
			Response Time:5ms Dot pitch: 0.297
			Max. resolution: 1366 * 768
3	Touch Screen	42'' Infrared	Light Transmittance: More than 92%, highest to 100%
			Scanning Speed:50scans/s Responding Time:Less than 16ms
			Min Touching Objects: More than 5mm Hitting life expectancy:Each point can be touched more than 60 millions times.
			Durability and Resistance:When a steel ball of 1040g (whose diameter is 65.5mm) falls down onto the touch screen from the height of 1 meter, the screen still keeps safe and sound.
4	Cabinet	YULIAN	Material: Cold rolled steel ST12 SPCC The surface: color optional
			Thickness: 1.5mm Network function: four-core telphone or RJ45 network tie-in ( Standard of RJ45)
			Work environment: temperature:+5 ~ +35; humidity:40% ~ 80%
5	Speakers		Left and right bi-channel; amplified output; Multimedia speaker
6	Enclosure	YL05-42	Durable steel frame, powder coated; Slim and smart design; Easy to install and operate; Moistureproof Antirust Anti-acid Anti-dust Static free Color upon request.
7	OS Software		Microsoft Windows pro XP+SP3(Test version) All hardware driver available
8	Packing		Bubble Foam, Carton, Wooden Case

Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
