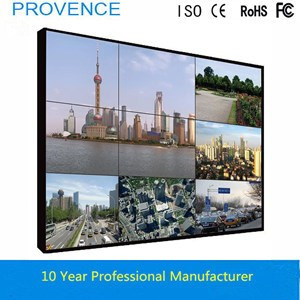

Provence Technology (Shenzhen) Co., Ltd. >> 47" Video Wall Server Controller Software (PM470UT7-1)

47" Video Wall Server Controller Software (PM470UT7-1)

Supplier:	Provence Technology (Shenzhen) Co., Ltd.
Price:	US $ 1500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PM470UT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE, FCC, RoHS
Type:	TFT
Aspect Ratio:	16:9
Application:	Surveillance, Advertising, Large-Screen Project
Feature:	Ultra Narrow Bezel Video Walls
Screen Size:	47"
Interface Type:	VGA, DVI, HDMI, Video, YPbPr, RS232

Product Description

47" Video Wall Server Controller Software (PM470UT7-1)

1. Adopt LG Ultra Narrow Bezel Panel.
2. Certificate: CE, FCC, RoHS
3. Customized Brand: Ours, OEM, ODM
4. Resolution: 1366(H)X768(W)
5. Brightness (CD/m2): 700CD/m2
6. Contrast Ratio: 1300: 1
7. Viewing angles: H: 89o/89o V: 89o/89o
8. Integrate multiple HD Video signal source interface type: DVI, HDMI, VGA, YPbPr, AV.
9. Stable performance, and the thermal management system allows the monitor to operate 24/7.
10. Low Power, Green Material. Built-in digital signal de-noising unit.
11. Operating Humidity: 10~90%, normal operations in poor conditions.
12. Reasonably complete Accessories for your option, as well all kinds of Installation Method (base support, wall mounts, stand support etc. )

PRODUCT DESCRIPTION
Panel
Diagonal Size	47"
Aspect Ratio	16: 9
Pixel Pitch	0.76125(H) x 0.76125(W)
Response Time	< 8ms
Resolution	1366x768
Contrast Ratio	1300: 1
Brightness (cd/m2)	700d/m2
Active display area	1040.5 (H) x58.35(V)
Display Color (Max)	16.7M
Viewing Angle	H: 89o/89o V: 89o/89o
Video Input
VGA	X1
DVI	X1
HDMI	X1
Component YPbPr(BNC)	X1
Composite video( BNC)	X1
RJ45(use for RS232 IN)	X1
RJ45(use for debug)	X1
Output Connection
Composite video(BNC)	X1
RJ45(use for RS232 OUT)	X2
Power
Power Supply	AC Input 100~240V(+/-10%)/50-60Hz
Power Consumpiton	≤ 210W
Stand-by(MAX)	≤ 2W
Operation/Sotrage
Operating Temperature	0 0 C~50 0 C
Operating Humidity	10%~90%
Storage Temperature	-20 0 C~60 0 C
Operating Humidity	0%~90%
Safety and Ergonomics
Regulations	CE, FCC, ROSH
Technical Specification
OSD language	Simplify Chinese, English
Horizontal Frequency	20 ~ 82KHz(analog and digital)
Vertical Frequency	55~75Hz
Optimum Resolution	1366x768at 60HZ
Native Resolution	1366x768at 60HZ
Supported Resolutions	1366x768; 1280x1024; 1280x768; 1024x768; 832x624; 800x600; 720x400; 600x480;
Video Modes(no tuner)	480i; 480p; 576i; 576p; 720p(50 & 60HZ); 1080i(50 & 60HZ); 1080p(50 & 60HZ);
Colour Versions	Black
Package Contents
Manual	x1
Warranty Card	x1
Application CD	x1
Power Cord	x1
Lan cable(1.8m)	x1
RJ45 to RS232 connector	x1
Batteries	x1
Mechanical Spec
Weight(Set/package)	33kg/40kg
Dimension(W/O stand)	1046.8591.6105mm
Packing Dimension	1160x710x240mm
Warranty
1 year for backlight, 3 years for other parts
Terms And Conditions
Payment Term	T/T or Sight L/C
Shipment Term	FOB, CIF, CNF
Port of Loading:	Shenzhen
Brand	Follow Client' s Command (Ours, OEM, ODM)
MOQ	20' ft
Valid Date	7 days
Delivery Time	Within 25 Days After payment
About Samples
Extra 15% Handling Fee Is Charged For Sample. It will Be Returned When An Purchase Order Is Placed
Optional Accessories
Wall Mount
RS232 to USB connector
BNC to RCA Adaptor Jack
BNC to BNC cable(1.5m)
DVI cable(1.5m)
HDMI cable(1.5m)
VGA to BNC cable(1.5m)

PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...

Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.

PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
